Product Features

- Front & In-Cab Recording
- 720P + 720P + Optional Rear (3CH)
- Tamper Proof Solution
- Remote View + Data 3G
- 128GB SD Card Storage (Included)
- Up to 1TB Hard Drive (Optional Extra)
- 2 Year Limited Warranty


 Leading Truck Camera with HD





The Auto BlackBox V300 is a commercial grade system, as a leading dash cam for trucks, it has been designed to meet the requirements of truck and fleet companies in Australia. As a semi-truck dash cam based product, our company has serviced many fleets with this system that outperforms many competitor models for quality and reliability.

Our PC Software will clearly display all of the relevant information for your viewing, including front & rear video, GPS location, G-sensor data and more. The sample video below demonstrates viewing recorded files on the PC viewer. With up to three cameras (3 channel), the V300 dvr has a bracket mounting system which will withstand a large crash due to it's quality and design, ensuring the full story is always captured.



Network Camera - Live View
The BlackBox V300 is a 3G & 4G network compatible dash camera, with remote live view and live streaming capabilities.
Rather than using a SIM card slot, the camera utilises WiFi to make the connection via a USB dongle.
Note: Fees may apply for monthly AWS services.








Dual SD Card Security

The BlackBox V300 system can house 2X SD cards for increased storage time and stability. The two SD cards work by storing important Event Data with normal footage on one card. The extra footage and latest footage is stored on the secondary SD card.
















Capture the Full Story

Capture the full story with the BlackBox Truck V300 Commercial Camera. Dual cameras provide a picture of the outside view and interior cabin view simultaneously. Using the player you can view both feeds together to compare events and data.













Optional Hard-Drive

The BlackBox V300 system, is compatible with a hard-drive for increase storage time in the vehicle. We recommend SSD (solid state) portable hard-drives for advanced reliability of storage.









Industry Leading Design

Tamper Proof Design that leads in the industry for security. A patended tamper-proof design, prevents unwanted tampering of the SD card as well as locking the angle of the forward and inward facing cameras. Preventing drivers from changing the lens angle to avoid detection.







Remote GPS Viewing Interface











Check Vehicle Details Remotely

With the BlackBox V300 User-Interface, company managers can check the specific vehicle details of any vehicle in the fleet via live video streaming. You can also check on the vehicles current speed, and accumulated driving time.












Daily Data Dumping Ready

If you have multiple trucks on the road, the V300 can be programmed to automatically dump the data for that day, to a server where the trucks return to on a daily basis. This can reduce the need for remote data retrieval and save thousands $ in costs.







Heat Tested to 80'C Degrees

Australia is home to some of the hottest conditions on the planet. This is why the BlackBox V300 is heat-tested in Australian conditions to reach running temps of up to 80'C Degrees. The material is also Flame Retardent UL94-V0.











Optional REAR Camera Available

An optional rear camera can be purchased to provide a 3CH COMMERCIALsolution. The rear camera can either be mounted outside (waterproof option) or inside the vehicle point back out (interior option). Contact us for more information on the 3rd rear camera option.

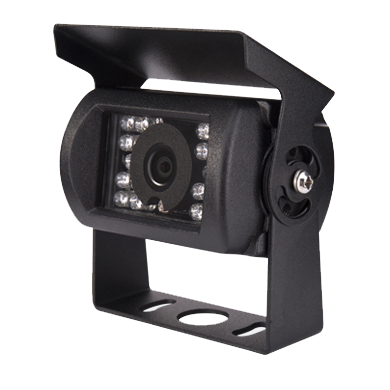

Rear Camera Optional with 22M Cable

The BlackBox V300 can also take a 3rd rear camera for interior or exterior mounting. The exterior water proof camera is rated to IP67 and also comes with a 22 metre long cable. This can also work as a reversing camera which can run as a constant video feed or only activate once the truck goes into reverse.











  2 Channel View Mode - Fleet



3 Channel View Mode - Bus Fleet


 2 Channel View Mode - Security Fleet



 Web Tracking Interface - Client Fleet



RECORDING TIMES:

128GB (64GB+64GB)

Up to 80 Hours

500GB

 Up to 300 Hours

1TB

 Up to 600 Hours (1 month of driving)

*We recommend using Solid State Hard Drives (SSD) as they are of the most stable and reliable design. You will notice they are more expensive than traditional optical mechanical portable hard drives.



SPECIFICATIONS:

*Please note: 64GB SD Cards must be purchased through Auto BlackBox for guaranteed compatibility.

 Quality Video & Audio     Camera: 1/4" 1.3MP CMOS (Digital HD) Sensor
 Standard SD Memory Card       Dual SD Card Support - 64GB + 64GB SD Cards
 Event File Locking       Yes - Will not overwrite
 Loop Recording   Yes - Old data is removed to record new footage
 Wide Angle View   Front: 130' Degrees | In-Cab 150' Degrees (wide-angle)
 Video Format   KDS Secure Encrypted (can be converted to AVI using PC Player)
 2CH In 1 Design   Single camera captures the road and in-cab view
 Recording Speed   Select Options 30FPS | 15FPS | 10FPS
 Image Resolution   HD 720px (Front) | HD 720px (Rear)
 Motion Detection   Yes - System has built-in Parking Mode (Power Magic) feature
 Data Compression   Highly Efficient H.264
 Built-in Format Function   Yes
 WiFi Modem   Optional (WiFi Dongle)
 Built-in G-Sensor   Yes
 Built-in Power Magic   Voltage Cut-off is built-in for battery protection
 GPS Receiver   Built-in Highly Sensitive SIRF III Antennae + GLONASS
 Recording Options   Normal, Parking, Event Lock (Activated by shock)
 Camera Size & Weight   Front - 121.9mm x 104.2mm x 46.1mm / 138g / GPS Cradle 42g
 Operational Temp   -20'C ~ 85'C
 Power Supply                                       8V~32V DC
 Power Consumption   12V / 505mAh ± 5%
 Factory Warranty   2 Year (Australian Genuine Warranty)
 Compliance Marks   C-TICK (N28189) KC, FCC, CE, RoHS, Telec
 Importer   Auto BlackBox Pty Ltd, Australian Importer
SKU blackbox-v300-128gb
Brand Blackbox
Shipping Weight 1.5000kg
