Features

• RAM^® EZ-Roll'r^™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable
• Compatible with the Samsung OEM skin as well as the RAM^® Skin^™; built-in cavity in the back allows for GDS^® Hand-Stand^™ compatibility
• Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS^® shoulder strap loops on RAM^® Skin^™
• Backed by a 3-year warranty

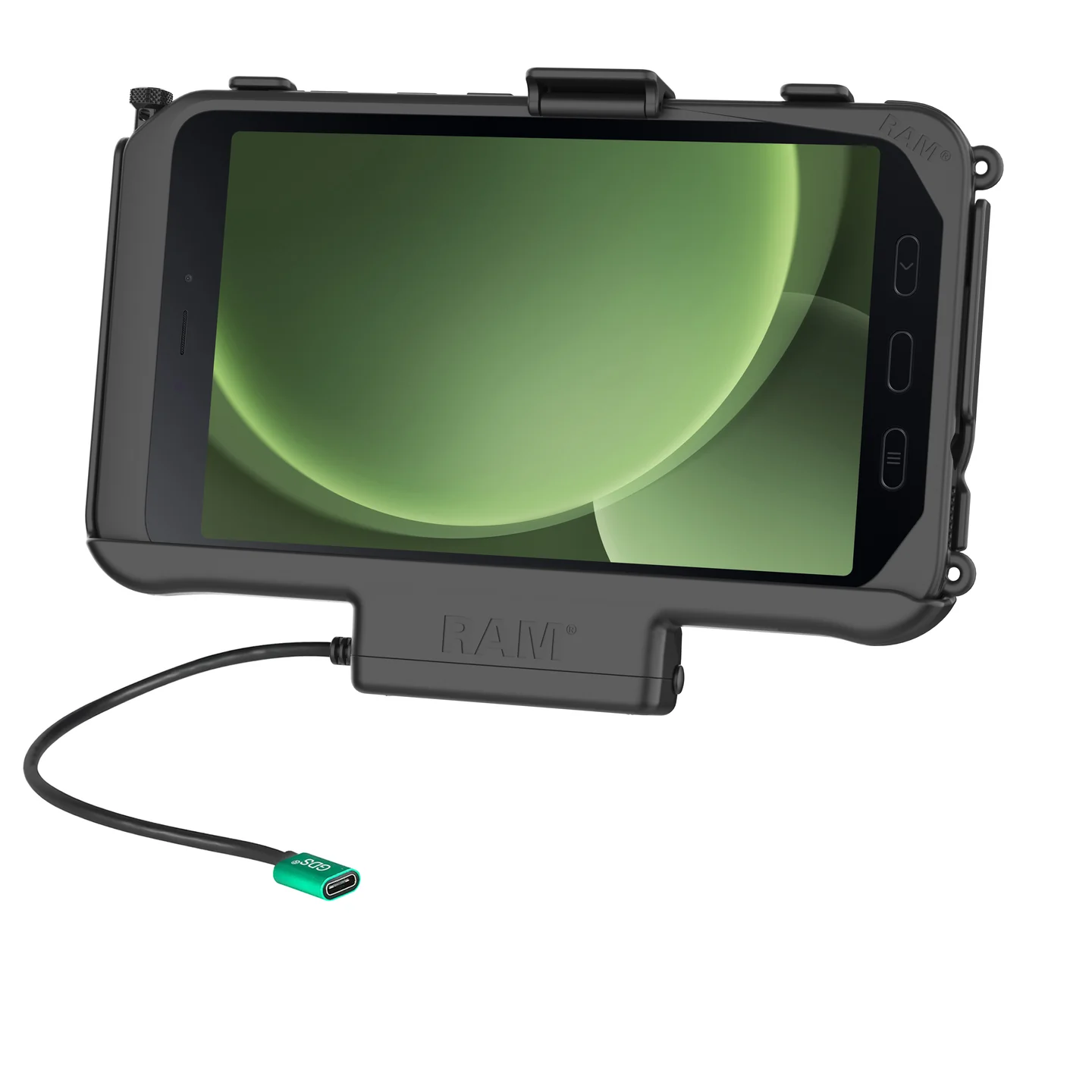

The RAM^® USB-C Powered Dock for Samsung Tab Active5, Tab Active3 & 2 (RAM-HOL-SAM60CPU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and charging capabilities are provided to the device through GDS^® pogo pins. This modular dock is compatible with the RAM^® Skin^™, factory device skin, and GDS^® Hand-Stand^™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM^® components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties

PRODUCT DIMENSIONS

Width: 9.24"
Height: 6.34"
Depth: 2.57"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

INPUT VOLTAGE

5.3-5.4VDC

OUTPUT VOLTAGE

5VDC

POWER OUTPUT

500mA

INPUT CONNECTOR

USB Type-C Female

INPUT CABLE LENGTH

215mm

WARRANTY

3 year warranty

WEIGHT

0.71 lb

ADDITIONAL INFORMATION

This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM^® Tough-Case^™ options here.
