RAM Track Ball with T-Bolt Attachment – B Size (RAP-B-354U-TRA1)

RAM Mounts

$29.00

In stock

Mounting base: slides into a RAM track. Has a B size (1") ball; add a B size arm and holder to complete the mount.

Ball sizeB sizeC size
RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Need an arm and holder for this? Complete your mount ↓

Not sure which RAM® Mount you need?Build your complete mount: pick your device and where it goes.Build my mount

Complete your mount

A RAM mount is three parts: a base that attaches to your vehicle or surface, a socket arm that connects the balls, and a holder for your device. All B size parts below fit together. Tick one of each, then add them in one go.

Base

Arm

Holder

SKU RAP-B-354U-TRA1 Categories , ,
Overview

Overview

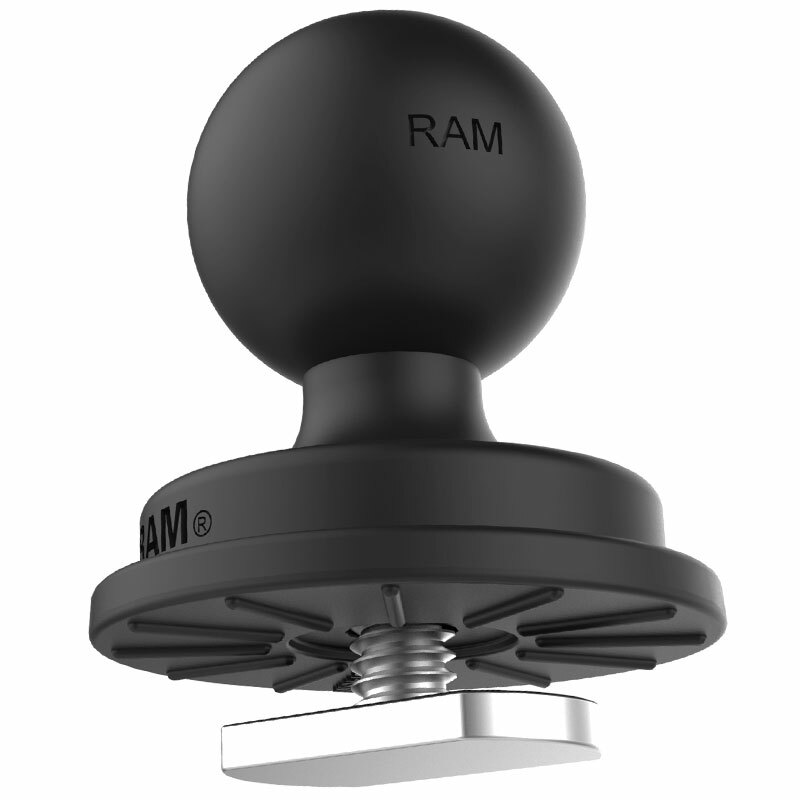

The RAM® Track Ball™ consists of a B size 1" rubber ball molded to a high-strength composite base, a rubber friction washer, and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the RAM® Track Ball™ into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball.

Features

  • Designed for track mounting systems including the RAM® Tough-Track™; includes 1" B size rubber ball
  • Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specs

Type: Component. Base only. Needs a RAM B-size arm and holder.

Mounts on: Boat or kayak track rails.

Hardware Included

(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt

T Bolt Dimensions

.48" x .95"

Ball Size

B Size (1")

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

High strength composite
Stainless steel

Packaging Type

Poly Bag

Weight

0.09 lb
