Overview
Features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.
<div class="temp-
Specs
-tr" style="margin: 0px;padding: 0px;border: 0px;font-size: 14px;vertical-align: baseline;background-image: initial;background-position: initial;background-size: initial;background-repeat: initial;background-attachment: initial;display: flex;, arial, sans-serif">
Overview

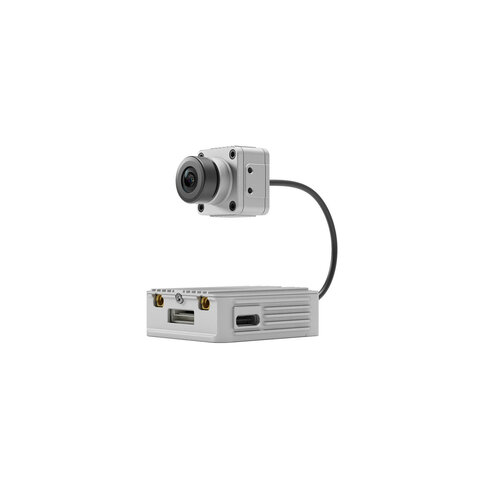

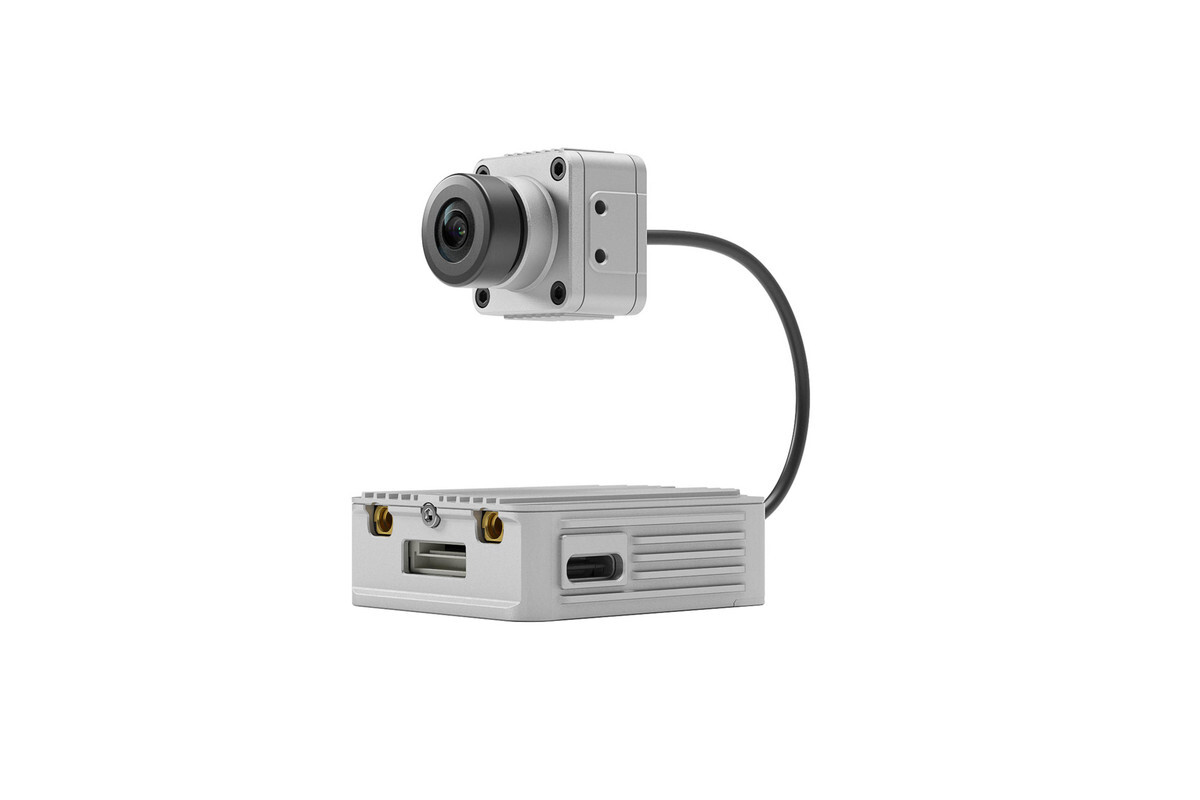

The FPV Air Unit features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.
Tips
The air unit may become hot during or after operation.
DO NOT touch the air unit before it cools down.
DO NOT use the air unit for an extended period when there is no external cooling equipment. Otherwise, the air unit may overheat and enter overheat protection mode.
Keep the antennas of the air unit at least 40 mm apart.
Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.
DO NOT touch the air unit before it cools down.
DO NOT use the air unit for an extended period when there is no external cooling equipment. Otherwise, the air unit may overheat and enter overheat protection mode.
Keep the antennas of the air unit at least 40 mm apart.
Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.
In The Box
DJI FPV Air Unit (with camera and four M2 screws) × 1
Three-in-one cable × 1
Antenna (MMCX elbow) × 2
Three-in-one cable × 1
Antenna (MMCX elbow) × 2
Specifications
Weight
Air Unit (Camera included): 45.8 g
3.9 g (MMCX elbow each)
Dimensions
Air Unit: 44 × 37.8 × 14.4 mm
Camera: 27.4 × 21.1 × 20.1 mm
Coaxial Cable: 100 mm
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm
Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W
Sensor: 1/3.2'' CMOS; Effective Pixels: 4 M
Lens: 2.1 mm, f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1 × 21.1 × 20.1 mm
Weight: 8.2 g
Channels: 8
Channels Info
FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839
CE/SRRC
Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839
MIC
Channel 1: 5660
Channel 2: 5700
Channel 8: 5745
Air Unit (Camera included): 45.8 g
3.9 g (MMCX elbow each)
Dimensions
Air Unit: 44 × 37.8 × 14.4 mm
Camera: 27.4 × 21.1 × 20.1 mm
Coaxial Cable: 100 mm
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm
Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W
Sensor: 1/3.2'' CMOS; Effective Pixels: 4 M
Lens: 2.1 mm, f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1 × 21.1 × 20.1 mm
Weight: 8.2 g
Channels: 8
Channels Info
FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839
CE/SRRC
Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839
MIC
Channel 1: 5660
Channel 2: 5700
Channel 8: 5745
Compatibility
DJI FPV Goggles
DJI FPV Remote Controller
DJI FPV Remote Controller
