DJI's Matrice 100 combines the ease of use of a ready-to-fly quadcopter with the flexibility of a build-it-yourself model. Sporting an "X"-configuration design, the Matrice 100 acts as a platform for various DJI and third-party cameras that can suit any professional or industrial purpose. Stackable modular bays simplify adding components such as flight control extensions or a second battery, while the prop arms can be set a slight angle to increase torque.

DJI SDK enables developers to create totally custom software, ideal when using the platform for highly specialized applications.

In addition to the quadcopter, this ready-to-fly bundle includes a pre-bound controller (transmitter), one TB47D flight battery, a battery charger with AC cable, a mobile device holder, two expansion bays, a total of six props, as well as connection cables and miscellaneous parts.







Design Features

Expansion Bays

Additional expansion bays allow you to add components to the flight control system, customize the payload, and fly with any devices of your choosing. Put cameras, sensors, computing boards, communication tools, and more into the sky, and gather data while completing complex jobs from a birds-eye view. Two Expansion bays are included and additional bays are available separately.



Universal Power and Communication Ports

Connect and fly with a range of DJI or third party devices, and transmit data to the ground in real time. The Matrice 100 has dual parallel CAN-bus ports for connecting DJI devices including the Guidance sensor system and dual parallel UART ports for connecting third party components.

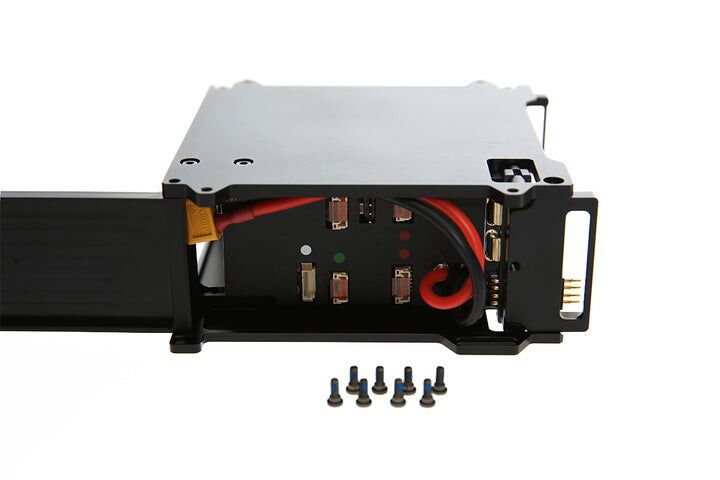

Dual Battery Compartments

An additional battery compartment means it is possible to achieve up to 40 minutes flying time when two TB48D batteries are used (one TB47B included; additional batteries available separately).
Note: Flight times vary based on payload, flight conditions, and other factors.



Customizable Mounting and Balancing

Sliding the battery and other compartments allow you to put components where it's most convenient while keeping the aircraft balanced.



Adjustable Arm Angle for Greater Torque

The prop arms can be tilted 3-degrees for increased yaw torque and greater response.



Vibration Damping Design

To reduce vibrations and increase stiffness, key components of the Matrice 100 are constructed from carbon fibre. Each of the arms contains a soft vibration absorbing material designed to eliminate feedback from the motors, keeping critical components stable while enabling precise navigation.



Spring-Loaded Landing Gear

Landing pads installed at the base of each arm help protect the Matrice 100 when landing. These pads reduce impact, protecting your system and reducing the chance of your platform unintentionally lifting off of the ground. They can be removed for replacement or upgrades.





Dedicated Radio Controller (Transmitter)

Up to 2km Range

Take control of your platform with the customizable, long-range remote controller included with the Matrice 100. Featuring an operating distance of up to 2km (line-of-sight), it comes with a built-in rechargeable battery, fully adjustable controls, a USB port for connecting a mobile device and a mini-HDMI port for FPV goggles or a field monitor (camera system available separately).



Mobile Device Support

You can operate the Matrice 100 using the DJI Pilot app as well as view a live video feed and see telemetry data overplayed (camera available separately), access a real-time map, and more. Alternatively, thanks to the DJI SDK, you can create your own custom app - ideal for special applications.





Performance Enhancements

Foldable GPS

Enhanced GPS - compare to previous DJI designs - with a foldable mount helps you to track the Matrice 100's position in real time, while enabling faster satellite acquisition, more accurate position holding and flight planning.



N1 Flight Controller with Lightbridge Integration

DJI's N1 flight controller provides instructions to keep the Matrice 100 stable and responsive throughout its flight. Transmitting data to the ground and bringing a live HD view (when using the separately available Zenmuse X3 camera and gimbal), the included DJI Lightbridge enables a flight range to up to 1.2 miles (depending on conditions).



Purpose-Built Propulsion System

An updated version of the DJI E800 electric propulsion system powers the Matrice 100 and keeps it in flight. Four brushless motors and four Electronic Speed Controllers (ESCs) are integrated into the platform, giving you complete control during flight. With increased strength and payload capacity, the Matrice 100 aims to provide you the flexibility to create the system you need.



Performance
Take-Off Weight Up to 7.5 lb / 3.4 kg
Hovering Accuracy (GPS Mode) Vertical: 1.6' / 0.5 m
Horizontal: 8.2' / 2.5 m
Maximum Angular Velocity Pitch: 300°/s
Yaw: 150°/s
Maximum Tilt Angle 35°
Maximum Ascent/Descent Speed Ascent: 16.4 fps / 5 m/s
Descent: 13.1 fps / 4 m/s
Maximum Speed 72.2 fps / 22 m/s (ATTI mode, no payload, no wind)
55.8 fps / 17 m/s (GPS mode, no payload, no wind)
Maximum Wind Speed Resistance 32.8 fps / 10 m/s
Hovering Time TB47D Battery:
No Payload: 22 minutes
1.1 lb / 500 g Payload: 17 minutes
2.2 lb / 1 kg Payload: 13 minutes

TB48D Battery:
No Payload: 28 minutes
1.1 lb / 500 g Payload: 20 minutes
2.2 lb / 1 kg Payload: 16 minutes

Two TB47D Batteries; No payload: 33 min
Two TB48D Batteries; No payload: 40 min
TB47D Battery and Zenmuse X3: 19 min
TB48D Battery and Zenmuse X3: 23 min
Flight Controller
Model N1
Motor
Model DJI 3510
Electronic Speed Control (ESC)
Model DJI E SERIES 620D
Propeller
Model DJI 1345s
Transmitter
Model C1
Operating Frequency Control: 5.725 to 5.825 GHz
Lightbridge: 2.400 to 2.483 GHz
Range Up to 6561.7' / 2000 m line-of-sight
EIRP 10 dBm at 900 MHz
13 dBm at 5.8 GHz
20 dBm at 2.4 GHz
Connectivity 1 x USB type A female (mobile device connection)
1 x Mini-HDMI
1 x Micro-USB (reserved for future use)
1 x CAN-Bus (reserved for future use)
Dual User Capability Master-and-slave control
Power Requirements Built-in battery
Battery 6000 mAh LiPo 2S
Charging Temperature 32 to 104°F / 0 to 40°C
Storage Temperature Less Than 3 Months: -4 to 113°F / -20 to 45°C
More Than 3 Months: 72 to 82°F / 22 to 28°C
Mobile Device Holder Supports smartphones and tablets
Maximum Mobile Device Width: 6.7" / 170 mm
Flight Battery
Model TB47D (included)
Configuration 6S
Chemistry Lithium-polymer (LiPo)
Voltage 22.2 VDC
Capacity 4500 mAh
99.9 Wh
Maximum Charging Power 180 W
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature Less Than 3 Months: -4 to 113°F / -20 to 45°C
More Than 3 Months: 72 to 82°F / 22 to 28°C
Charging Temperature 32 to 104°F / 0 to 40°C
Weight 1.3 lb / 600 g
Charger
Model A14-100P1A
Voltage 26.3 VDC
Output Power 100 W



SKU DJIM100
Shipping Weight 10.0000kg
