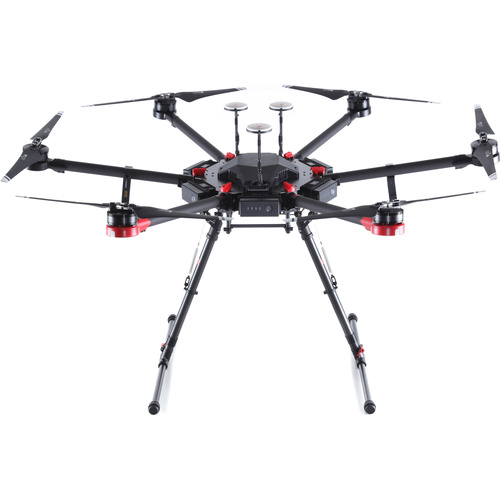

The Matrice 600 Pro inherits everything from the M600, adding improved flight performance and better loading capacity. Pre-installed arms and antennas reduce time required for setup, and the system’s modular design makes it easy to mount additional modules. The airframe is equipped with the latest DJI technologies, including the A3 Pro flight controller, Lightbridge 2 HD transmission system, Intelligent Batteries and Battery Management system. All Zenmuse cameras and gimbals are natively compatible and full integration with third party software and hardware make the M600 Pro ideal for professional aerial photography and industrial applications.
AIRCRAFT
Diagonal Wheelbase | 1133 mm |
---|---|
Dimensions | 1668 mm × 1518 mm × 727 mm with propellers, frame arms and GPS mount unfolded (including landing gear) 437 mm × 402 mm × 553 mm with propellers, frame arms and GPS mount folded (excluding landing gear) |
Package Dimensions | 525 mm × 480 mm × 625 mm |
Weight (with six TB47S batteries) | 9.5 kg |
Weight (with six TB48S batteries) | 10 kg |
Max Takeoff Weight Recommended | 15.5 kg |
Hovering Accuracy (P-GPS) | Vertical: ±0.5 m, Horizontal: ±1.5 m |
Max Angular Velocity | Pitch: 300°/s, Yaw: 150°/s |
Max Pitch Angle | 25° |
Max Wind Resistance | 8 m/s |
Max Ascent Speed | 5 m/s |
Max Descent Speed | 3 m/s |
Max Speed | 40 mph / 65 kph (no wind) |
Max Service Ceiling Above Sea Level | 2500 m |
Hovering Time* (with six TB47S batteries) | No payload: 32 min, 6 kg payload: 16 min |
Hovering Time* (with six TB48S batteries) | No payload: 38 min, 5.5 kg payload: 18 min |
Flight Control System | A3 Pro |
Supported DJI Gimbals | Ronin-MX; ZENMUSETM Z30, Zenmuse X5/X5R, Zenmuse X3, Zenmuse XT; Zenmuse Z15 Series HD Gimbal: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4 |
Retractable Landing Gear | Standard |
Operating Temperature | 14° to 104° F (-10° to 40° C) |
CHARGER (MODEL: MC6S600)
Voltage Output | 26.1 V |
---|---|
Rated Power | 600 W |
Single Battery Port Output Power | 100 W |
OPTIONAL BATTERY (MODEL: TB48S)
Capacity | 5700 mAh |
---|---|
Voltage | 22.8 V |
Battery Type | LiPo 6S |
Energy | 129.96 Wh |
Net Weight | 680 g |
Operating Temperature | 14° to 104° F (-10° to 40° C) |
Max Charging Power |
180 W
|
REMOTE CONTROLLER
Operating Frequency | 920.6 MHz to 928 MHz (Japan); 5.725 GHz to 5.825 GHz; 2.400 GHz to 2.483 GHz |
---|---|
Max Transmission Distance | FCC Compliant: 3.1 mi (5 km), CE Compliant: 2.2 mi (3.5 km) (Unobstructed, free of interference) |
Transmitter Power (EIRP) | 10 dBm @ 900M, 13 dBm @ 5.8G, 20 dBm @ 2.4G |
Video Output Port | HDMI, SDI, USB |
Operating Temperature | 14° to 104° F (-10° to 40° C) |
Battery | 6000 mAh LiPo 2S |
STANDARD BATTERY (MODEL: TB47S)
Capacity | 4500 mAh |
---|---|
Voltage | 22.2 V |
Battery Type | LiPo 6S |
Energy | 99.9 Wh |
Net Weight | 595 g |
Operating Temperature | 14° to 104° F (-10° to 40° C) |
Max Charging Power | 180 W |
SKU | DJIM600PRO |
Brand | DJI |
Shipping Weight | 19.0000kg |
Shipping Width | 0.050m |
Shipping Height | 0.050m |
Shipping Length | 0.050m |
