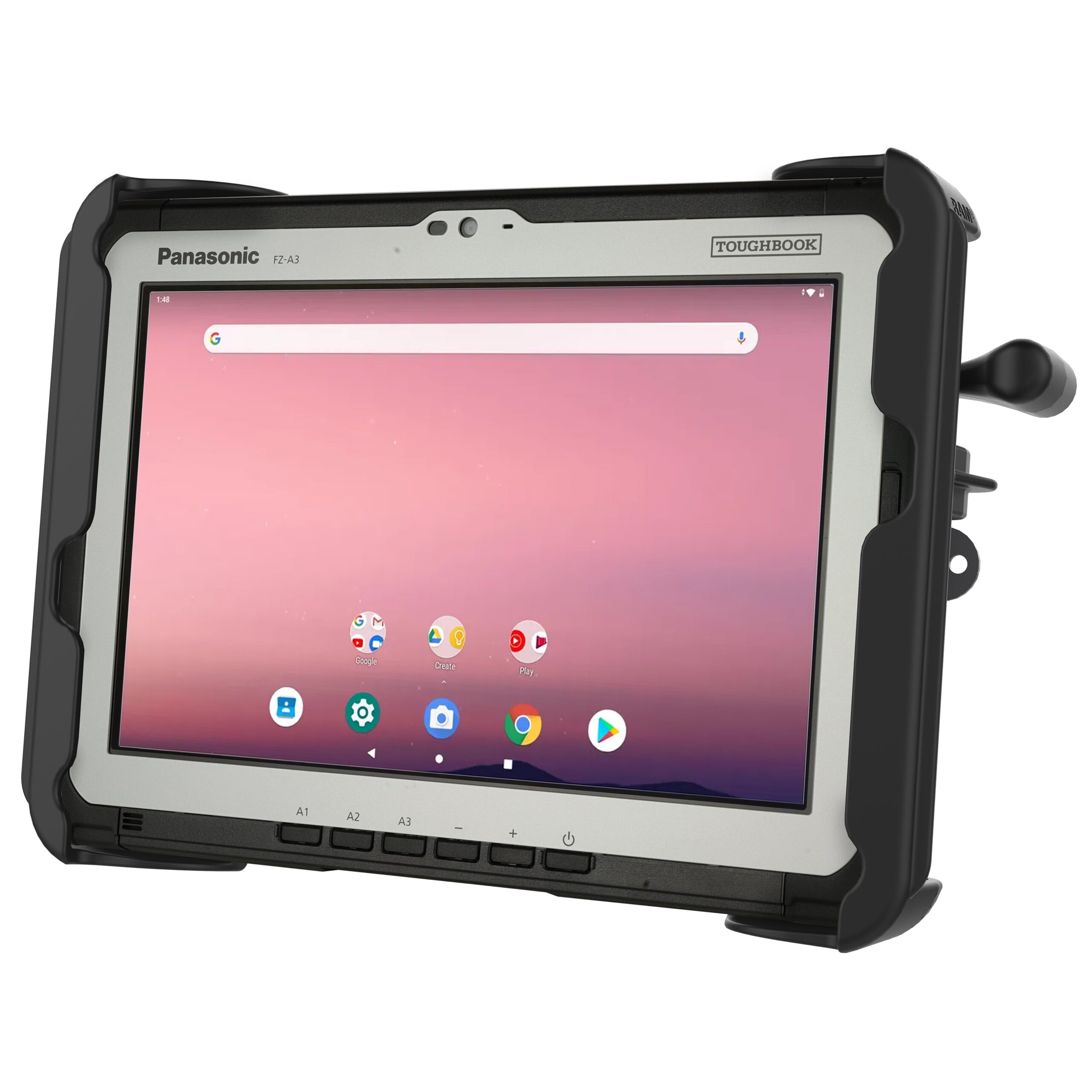

RAM Tab-Lock Holder for Panasonic FZ-G2 & FZ-A3, Getac UX10 + More
$190.00
In stock
Device holder: tablets 188–200 mm wide.
RAM ball size guide
The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.
| Size | Ball diameter | Holds up to | Best for |
|---|---|---|---|
| A | 9/16" (14 mm) | 0.45 kg | Small cameras, action cams, remotes |
| B | 1" (25 mm) | 0.9 kg | Phones, GPS units, small tablets. The most common size. |
| C | 1.5" (38 mm) | 1.8 kg | Tablets, small monitors, rugged devices |
| D | 2.25" (57 mm) | 2.7 kg | Large displays and laptops |
| E | 3.38" (86 mm) | 6.8 kg | Heavy monitors and equipment |
Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.
Overview

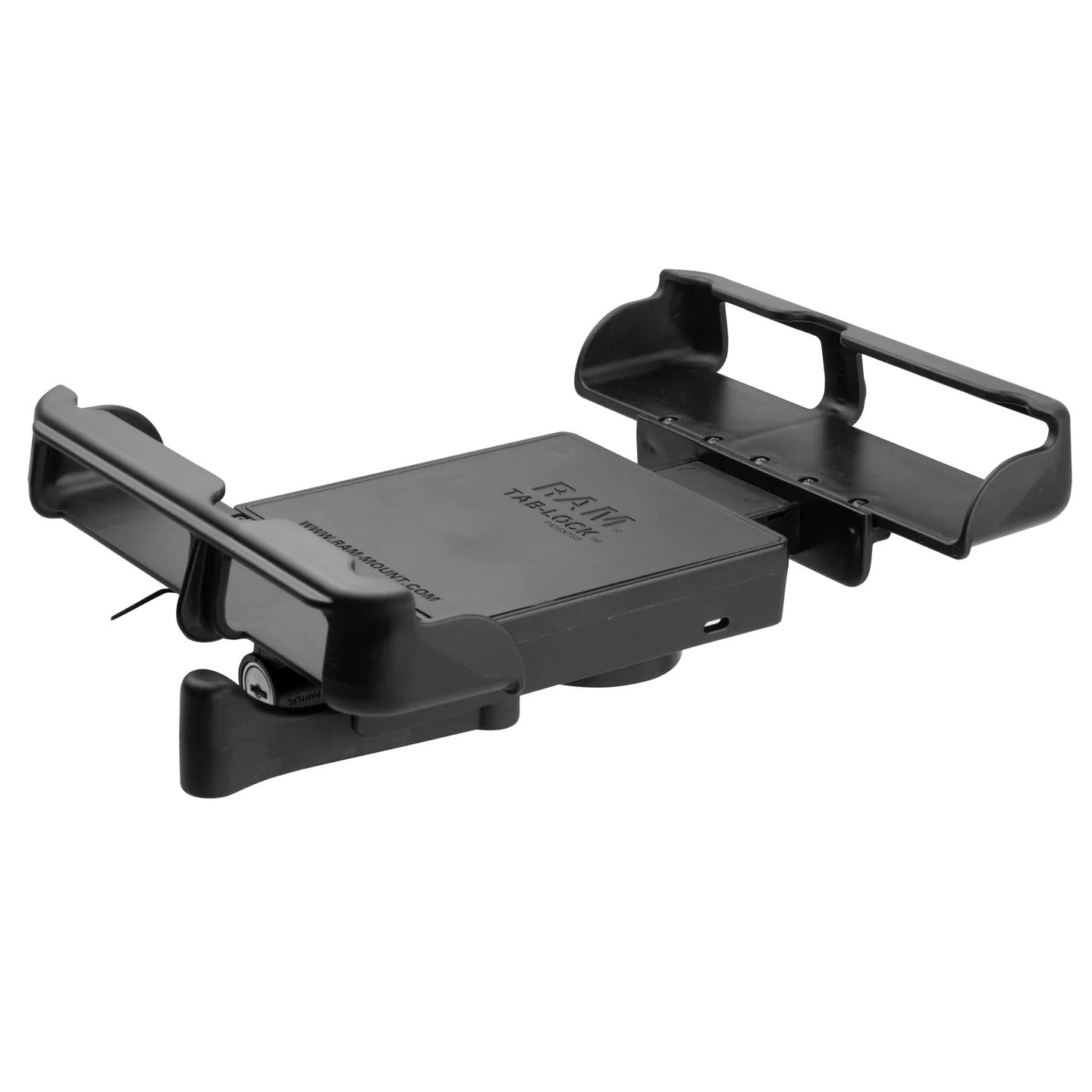

This RAM® Tab-Lock™ Holder for the Panasonic FZ-G2 & FZ-A3 and Getac UX10 consists of a spring-loaded backplate, custom support cups, and a key-locking mechanism that offers theft deterrence. The spring-loaded design makes it easy to load and unload your Panasonic device and keeps it secure while on the go. Ends cups are designed to optimize the functionality of your device, allowing access to audio jacks, USB, power, and other ports, so your device can be used just as it was intended. Quickly lock the cradle, keeping your device secure and safe from theft. Included is a set of mounting hardware to connect the cradle to any RAM® mounting components that contain the universal AMPS hole pattern. The included backplate is interchangeable with various sized support cups, making it compatible with numerous tablet models. The RAM® Tab-Lock™ is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Features
- Spring-loaded, key-locking holder secures the Panasonic FZ-G2 and FZ-A3 as well as the Getac UX10; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Hardware Included
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys
Holder Dimensions
Height Range: 10.5" - 12.5"
Width Range: 7.39" - 7.88"
Depth Range: 1" - 1.25"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Weight
1.43 lb
Additional Information
For Getac UX10, access to Thunderbolt port is blocked while in holder. This holder is not compatible with the extended battery or carrying handle for the UX10
