Buy the DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub

A hub for several cables that connects a DJI Video Transmitter, DJI LiDAR Range Finder (RS), DJI RS Focus Motor (2022), and other devices.

Overview

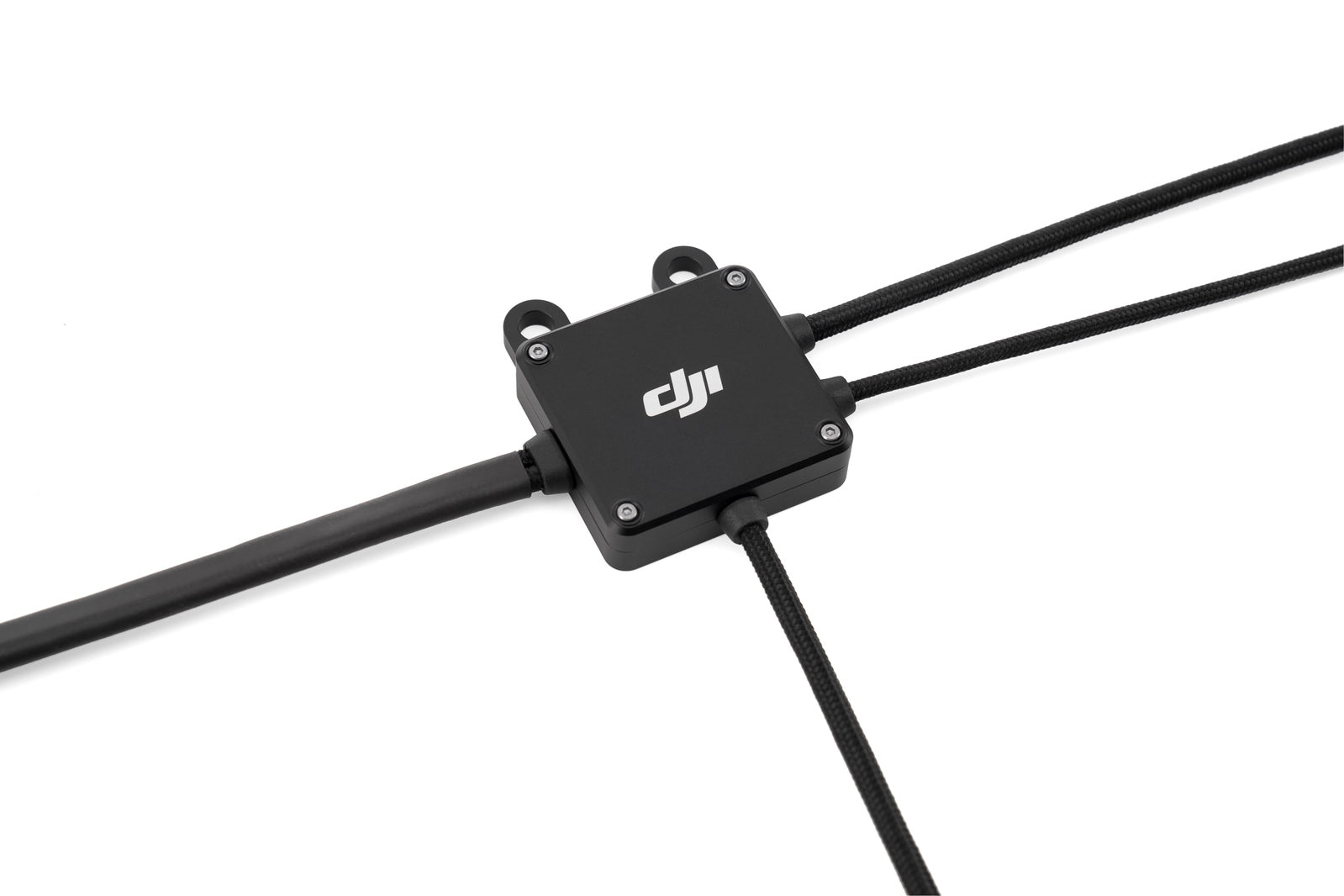

The DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub incorporates four cables that respectively connect to DJI LiDAR Range Finder (RS), DJI Video Transmitter, DJI RS Focus Motor (2022), and a power supply.

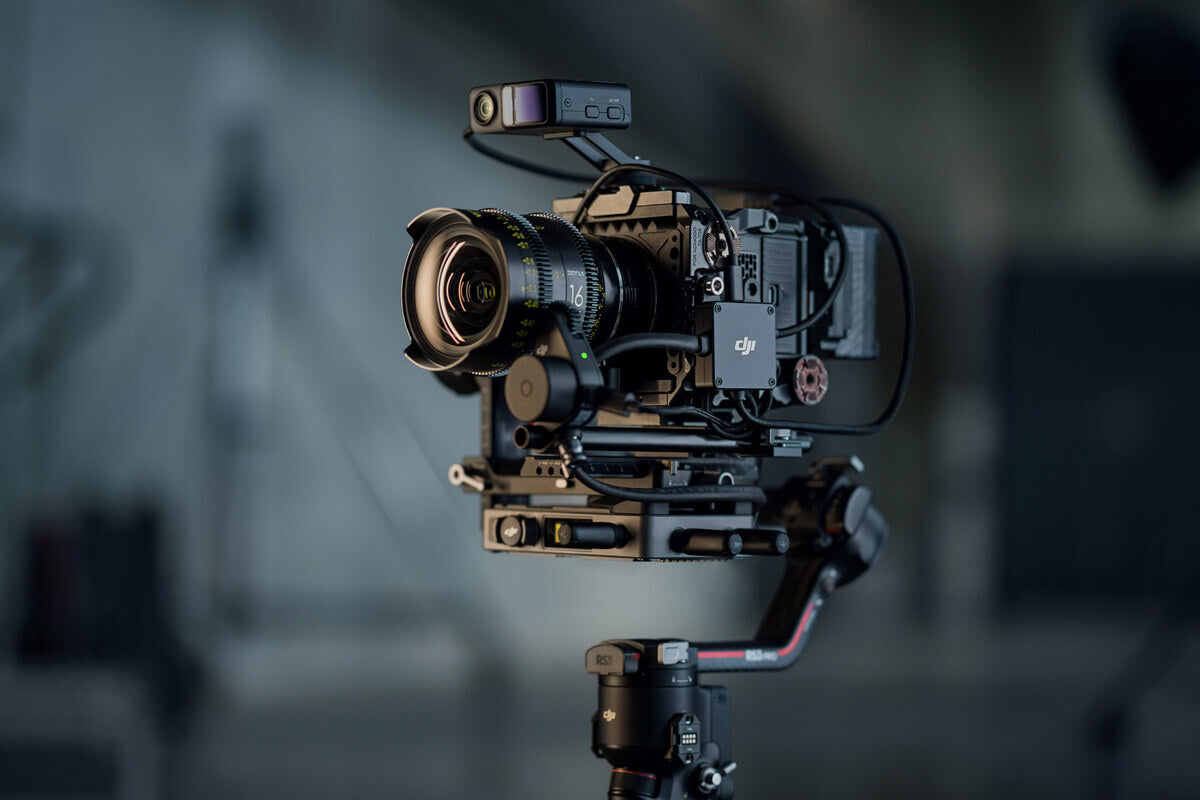

By connecting the DJI LiDAR Range Finder (RS) with the DJI Video Transmitter and other accessories, you can get a complete focusing and monitoring system for any combination of camera and manual lens, and achieve lens calibration and autofocus with a manual lens.

By connecting the USB-C Communication Port of the cable hub with DJI RS 3 Pro via a DJI R Multi-Camera Control Cable (USB-C), you can build inter-connection among DJI RS 3 Pro, DJI Transmission, and the LiDAR Range Finder (RS) for stabilization, remote monitoring and control, and autofocus.

Tips

Please use 12-17 V external power for power supply.

In The Box

DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub × 1

Screw 1/4-20 × 2

M4 Screw (10 mm) × 2

Specifications

Cable and Port Type:

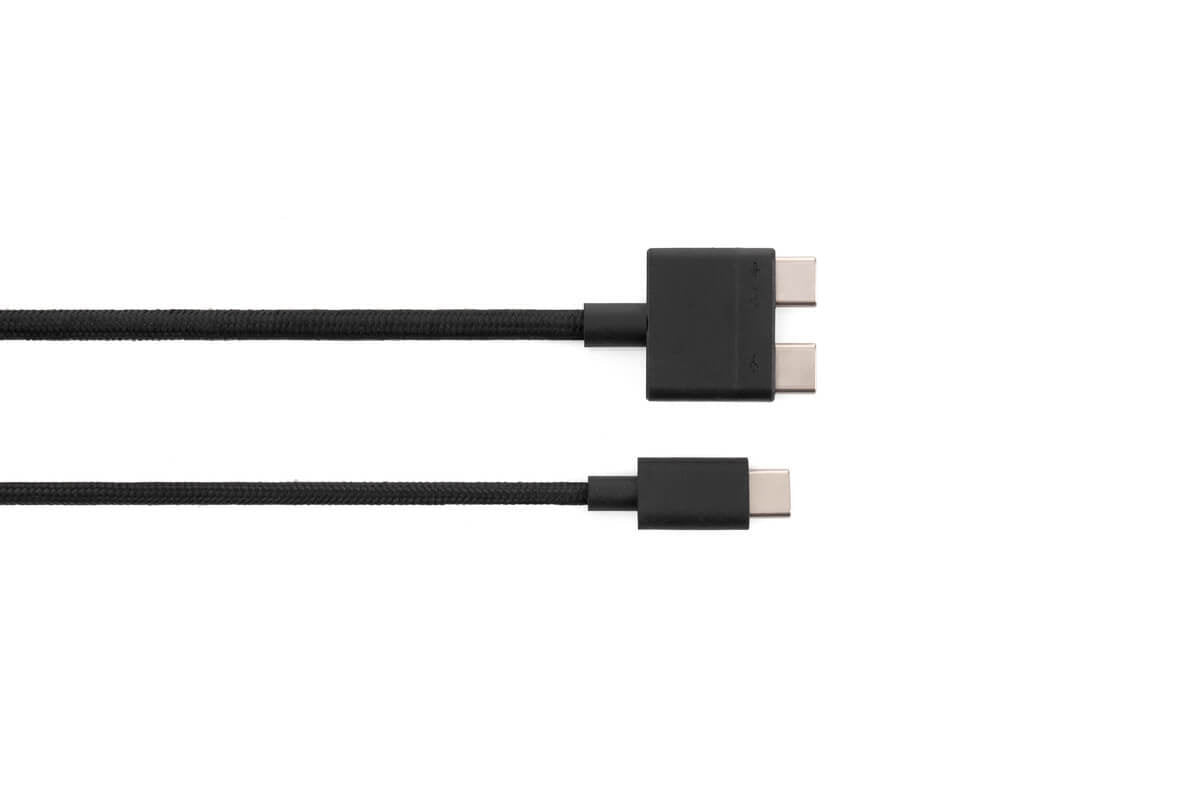

Dual USB-C LiDAR Connection Cable (40 cm)

USB-C Focus Motor Connection Cable (40 cm)

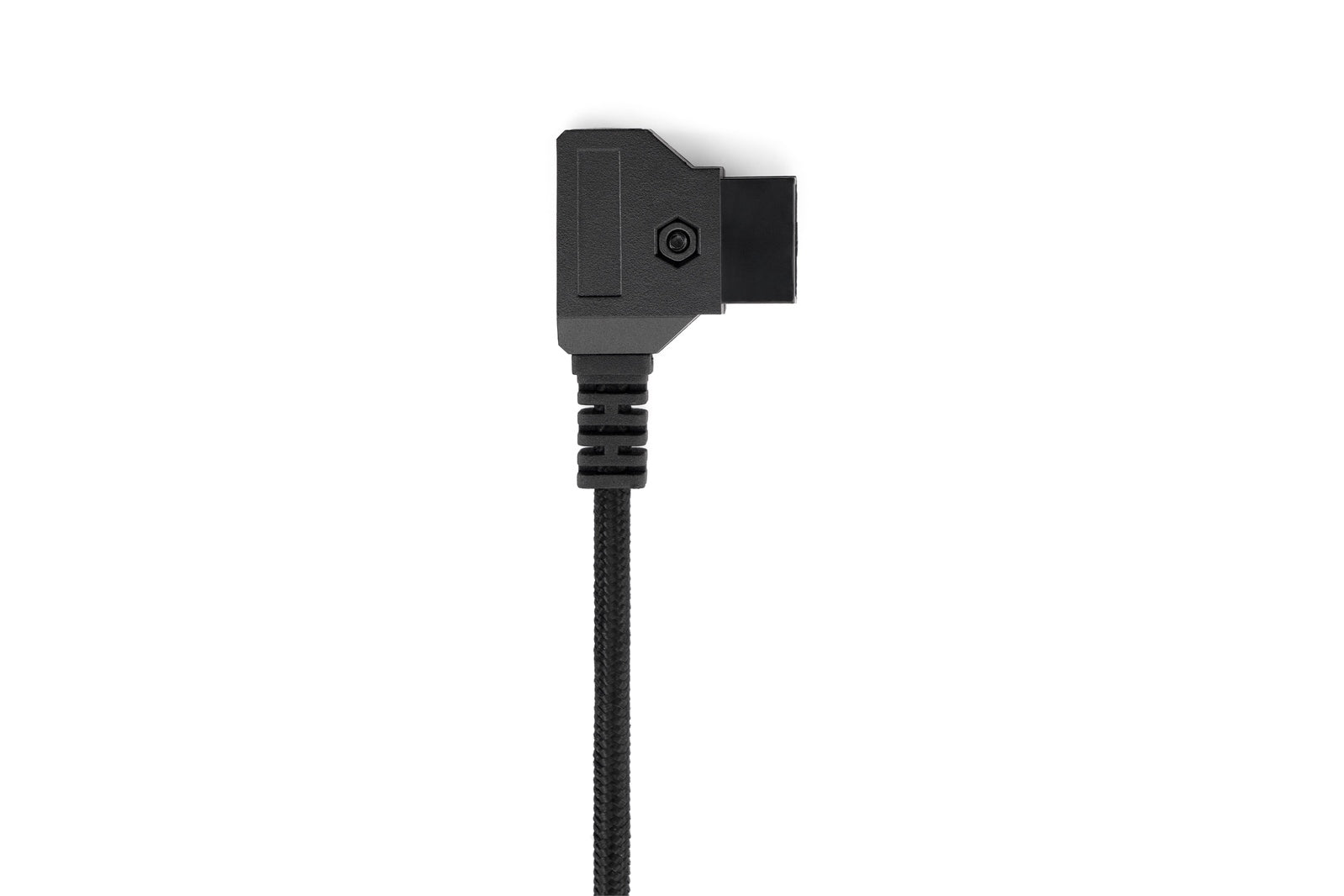

P-Tap Power Cable (40 cm)

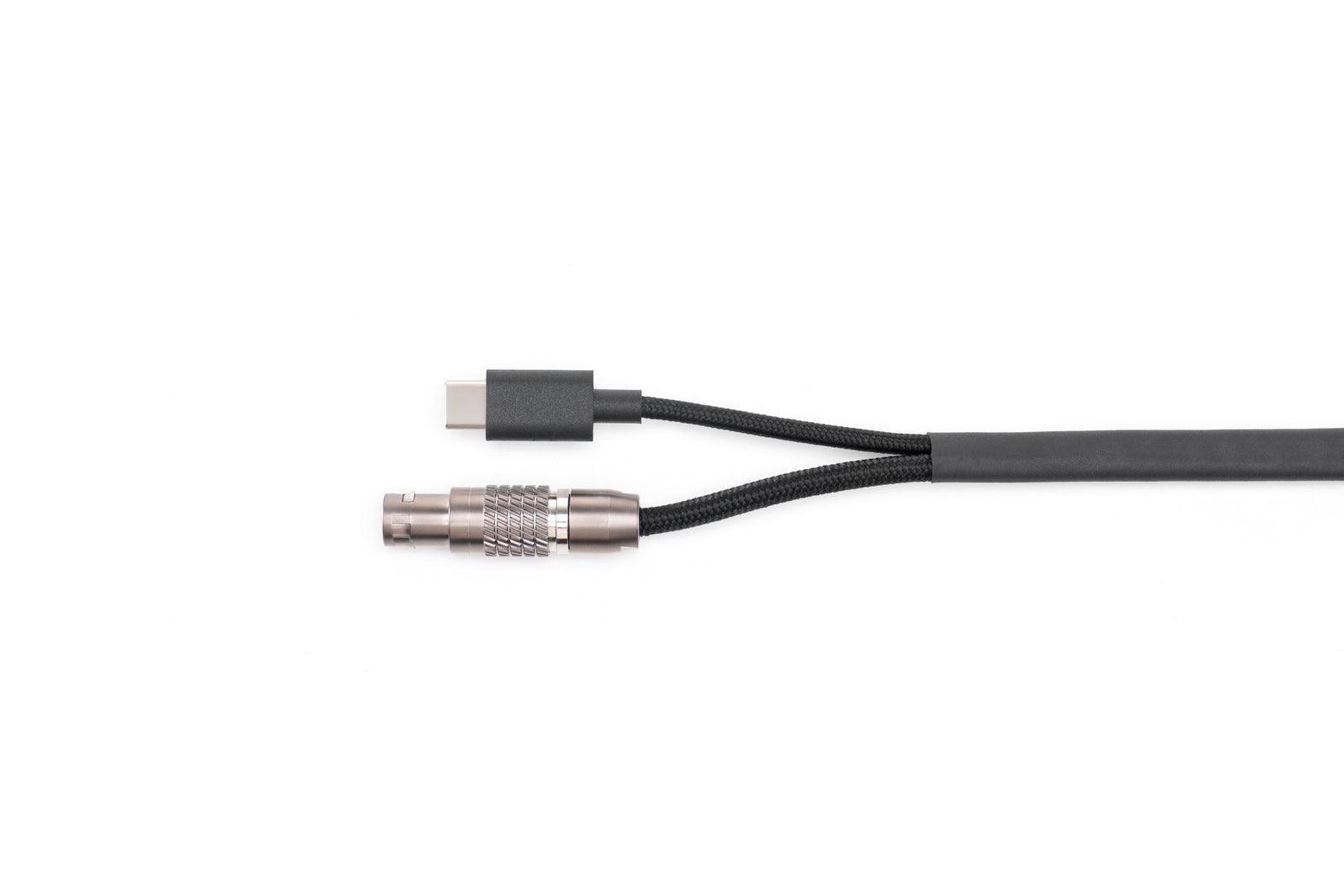

DC-OUT and USB-C Splitter Cable (40 cm)
