Freefly LR1 Thermal Upgrade
Freefly LR1 Thermal Upgrade - Image 2
Freefly LR1 Thermal Upgrade - Image 3

Freefly LR1 Thermal Upgrade

$0.00

Out of stock

Available on backorder
SKU 910-00840 Category
Overview

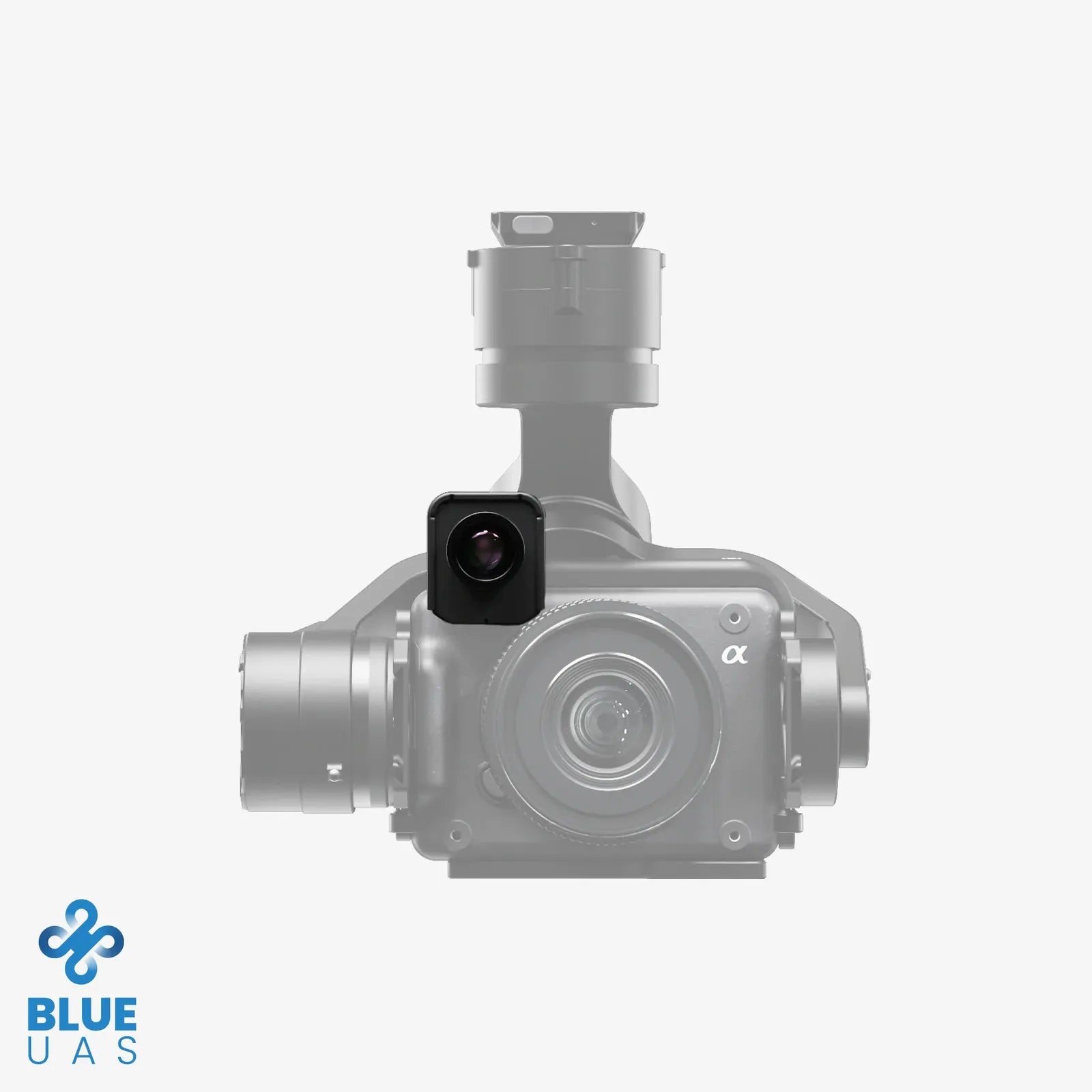

 Add-on camera module to add LWIR thermal imaging to your LR1 payload on Astro!

This thermal module and its specific counterweight is user installable and mounts to the LR1 Payload with 4+3 screws and plugs into the expansion port. Once installed, users can switch between the main LR1 camera and thermal camera through Astro's live video feed.

Technical

Specs

:



  • Flir Boson 640

    • 640 x 512 resolution Radiometric LWIR camera

    • 13.6mm (63mm full frame equivalent) lens

  • 92g installed weight

  • Geotagged images

  • Spot metering

In the box:

  • Qty 1 - Thermal Module for LR1 [Flir Boson 640R]

  • Camera mounting screws

    • Qty 4 - M3 x 10 SHCS

  • Counterweight mounting screws

    • Qty 3 - M3 x 8 FHCS

  • Qty 1 - Thermal module counterweight

  • Qty 1 - Counterweight for use with LRF
