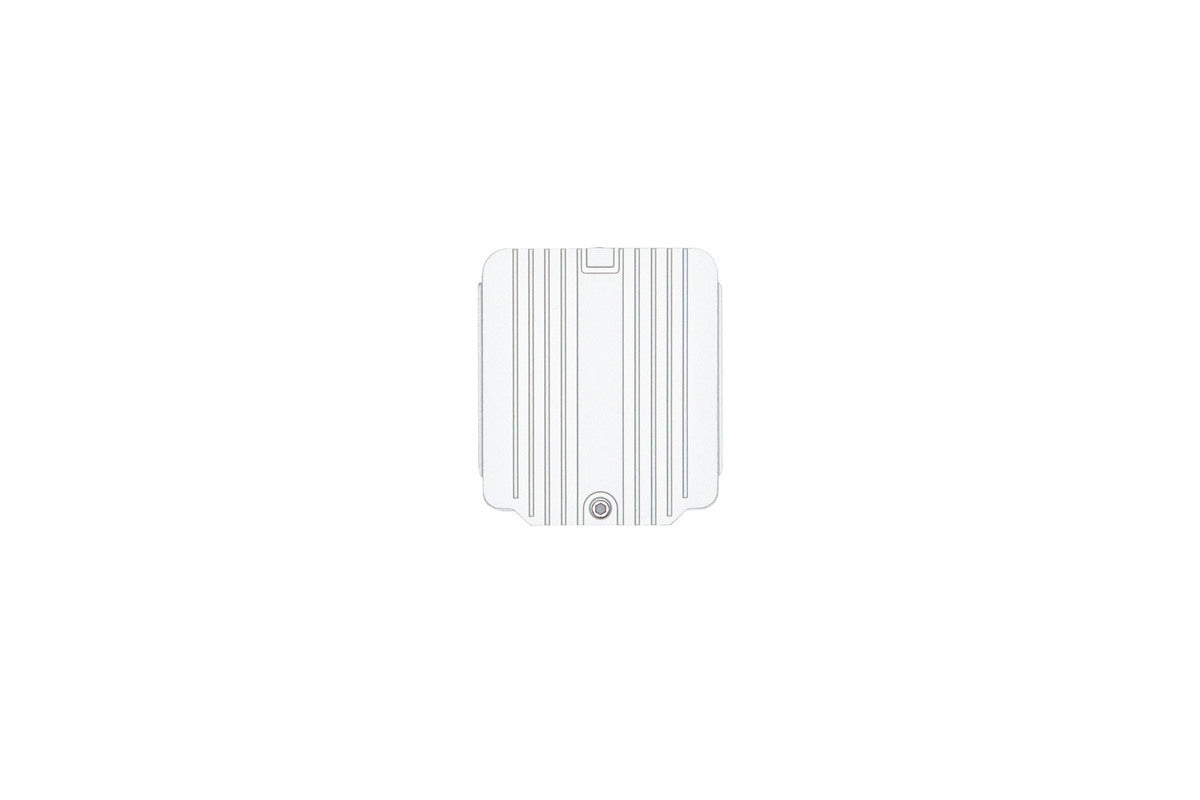

DJI FPV Air Unit Module - Image 1

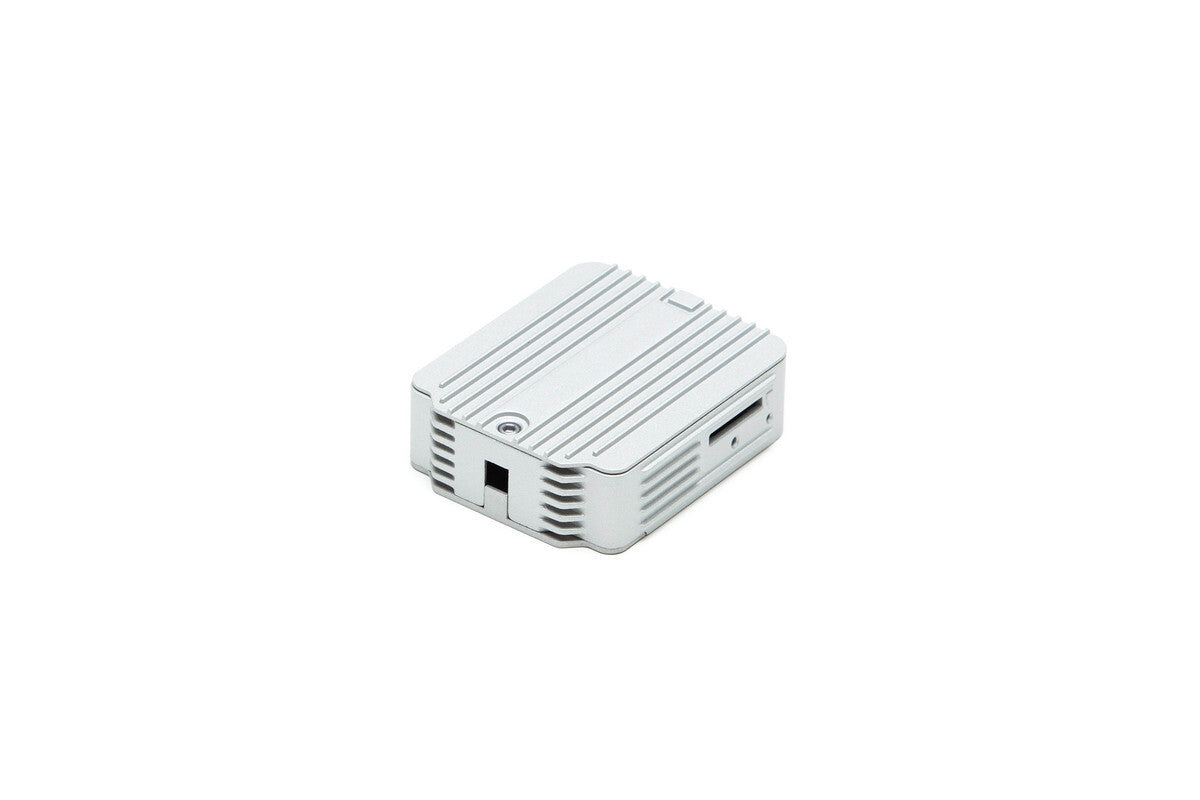

DJI FPV Air Unit Module - Image 2

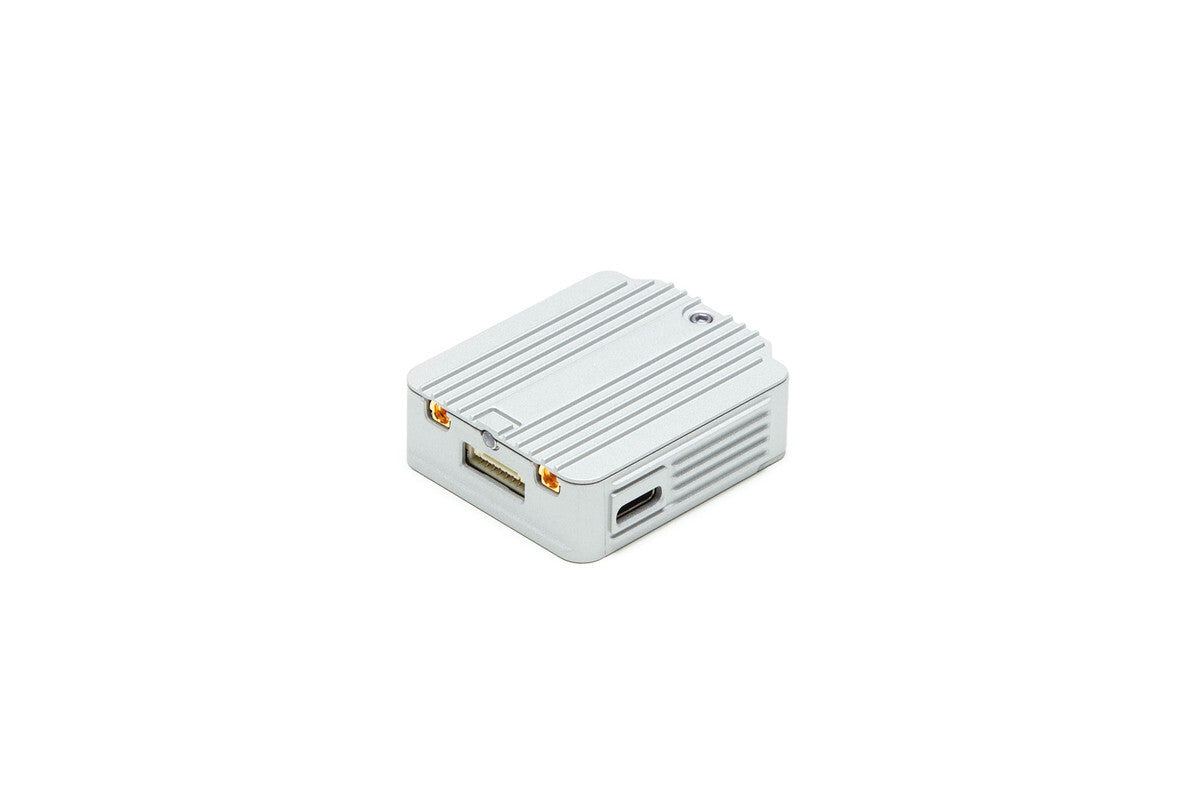

DJI FPV Air Unit Module - Image 3
Click to enlarge
DJI FPV Air Unit Module
DJI FPV Air Unit Module - Image 2
DJI FPV Air Unit Module - Image 3

DJI FPV Air Unit Module

$199.00

Out of stock

Available on backorder
SKU DJIFPV-02 Category
Overview

A modular with a quick-release design, making replacement easier and cost-efficient for users. Also features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.



<div class="temp-

Specs

-tr" style="margin: 0px;padding: 0px;border: 0px;font-size: 14px;vertical-align: baseline;background-image: initial;background-position: initial;background-size: initial;background-repeat: initial;background-attachment: initial;display: flex;, arial, sans-serif">
Overview
The FPV Air Unit Module features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.
Highlights
A modular with a quick-release design, making replacement easier and cost-efficient for users. Also features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.
In The Box
DJI FPV Air Unit Module × 1
Specifications
Dimensions

Air Unit: 44 × 37.8 × 14.4 mm



Operating Frequency: 5.725-5.850 GHz

Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm



Min. Latency (end-to-end)

Low Latency Mode (720p/120fps): <28 ms

High-Quality Mode (720p/60fps): <40 ms



Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km

Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)

I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot

Operating Temperature Range: 32°to 104°F (0° to 40°C)

Input Power: 7.4-17.6 V, about 4-9 W



Channels: 8

Channels Info

FCC

Channel 1: 5660

Channel 2: 5695

Channel 3: 5735

Channel 4: 5770

Channel 5: 5805

Channel 6: 5878

Channel 7: 5914

Channel 8: 5839



CE/SRRC

Channel 1: 5735

Channel 2: 5770

Channel 3: 5805

Channel 8: 5839



MIC

Channel 1: 5660

Channel 2: 5700

Channel 8: 5745
Compatibility
DJI FPV Camera
