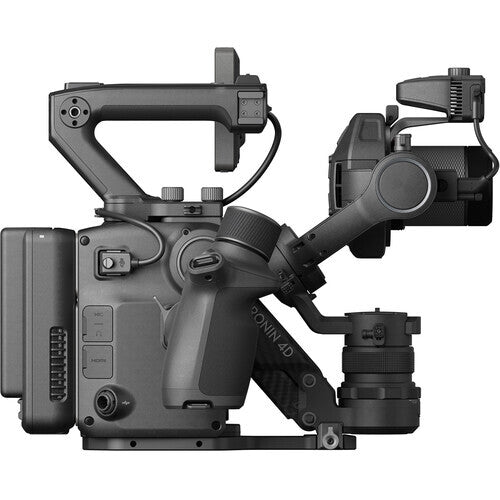

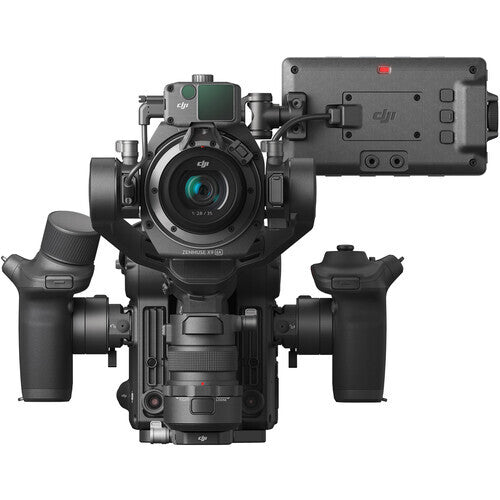

DJI Ronin 4D-6K Combo

Product Features:

• Highly Integrated Modular Design
• Full-Frame Gimbal Camera
• 6K/60fps 4K/120fps Internal RAW Recording
• 4-Axis Active Stabilization
• LiDAR Focusing
• Wireless Transmission and Control System

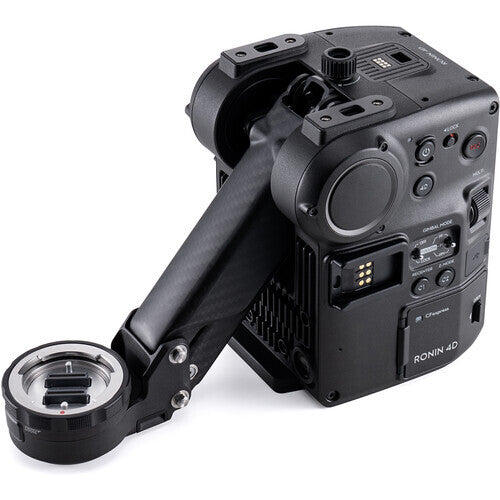

All-in-One Camera Gimbal System

• This innovative camera gimbal combines imaging, stabilization, and focusing in one lightweight, carbon fiber and aluminum/magnesium alloy rig
• Combination design reduces your setup time at the start of the day and in between setups and locations
• Included modular components:
  • Left and right control handgrips
  • LiDAR range finder
  • Top handle
  • Baseplate
• Separately available components:
  • ProSSD 1TB media drive
  • 7" high-bright, touchscreen monitor
  • Wireless video transmitter
  • X9 focus motor
  • Leica M lens mount
  • 3-channel FIZ lens control unit

CineCore 3.0 Imaging Processing System

• The Zenmuse X9, DJI's full-frame camera, uses a proprietary chip for advanced processing and high-performance computing
• The Ronin 4D uses the CineCore 3.0 system to support internal recording of Apple ProRes 422 HQ, H.264 video and ProRes 4444 XQ (coming later in 2022)
• Industry-standard ACES workflow support provide easy compatibility with other cinema cameras

Advanced 4-Axis Stabilization

• Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves
• Z-axis stabilization built into the camera, 3-axis stabilization in the gimbal
• Tilt stabilization uses dual, symmetrical motors
• Pan and X (roll) axes with additional stiffness buffering
• Downward ToF (time of flight) sensor
• Forward and downward-facing dual-vision sensors
• Built-in IMU (inertial measurement unit) and barometer
• New and improved stabilization algorithm

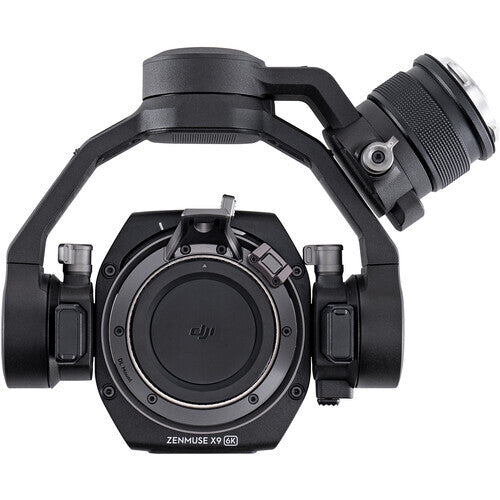

Zenmuse X9-6K Camera with DL Lens Mount

• The D4's DL lens mount supports DJI's current selection of lightweight, carbon fiber 16, 24, 35, and 50mm lenses
• Full-frame capture with all but the 16mm DL lens
• Interchangeable lens mounts available for use with Sony E-mount or Leica M-mount lenses
• Supports ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses
• Please see the current lens compatibility list here

ProRes 422 HQ and H.264 Capture

• Captures 6K raw at rates up to 60 fps in full-frame 2.39:1
• Captures up to 4K raw at rates up to 120 fps in Super 35 2.39:1
• Captures up to 4K raw at rates up to 96 fps in Super 35 17:9
• Capture up to 6K60 ProRes 422 HQ video in full-frame 2.39:1
• Capture up to 4K120 ProRes 422 HQ video in Super 35 2.39:1
• Capture up to 2K120 ProRes 422 HQ or H.264 in 17:9 full-frame

Dual Native ISO

• 800/5000 dual native ISO
• EI 200 to 12800
• 14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions

In-Camera ND Filters

• Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions
• Especially handy for outdoor shoots with changing cloud cover
• Motorized filter system
• Carry in "built" mode for easy company moves

LiDAR Focus Control

• LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' range
• Excellent focusing performance even in low-light environments
• Focus pulling can be viewed graphically, thanks to a built-in depth meter
• Intuitive and highly accurate focusing system
• Modular LiDAR focusing module attached to the front of the D4 rig

Autofocus Features

• Maintains focus, even when motion blur is produced by fast-moving subjects
• Separately available focus motor for use with manual lenses
• Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators

Automated Manual Focus

• The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus
• Operators can grab the focus wheel of the right handgrip at any time to manually focus
• Handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes

ActiveTrack Pro

• DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate
• ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system

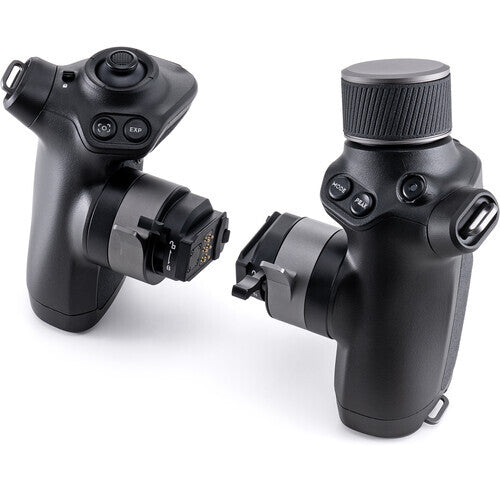

Dual Focus, Iris, and Control Grips

• Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.)
• Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode

Single User or Crew-Assisted Operation

• Top-notch stabilization in a lightweight form
• Ideal for both solo operators as well as assistant-accompanied shoots
• Designed to counter footsteps from inexperienced gimbal shooters
• Works equally well with a single grip, dual grips, shoulder supported, or tripod-mounted
• Sport mode is available with the touch of a button, accommodating faster-paced action
• Use in standard, underslung, jib, and crane setups

Media Storage Options

• Requires a ProSSD 1TB drive (optional accessory) to capture raw footage
  • USB Type-C port for external recording, no reader needed to offload footage

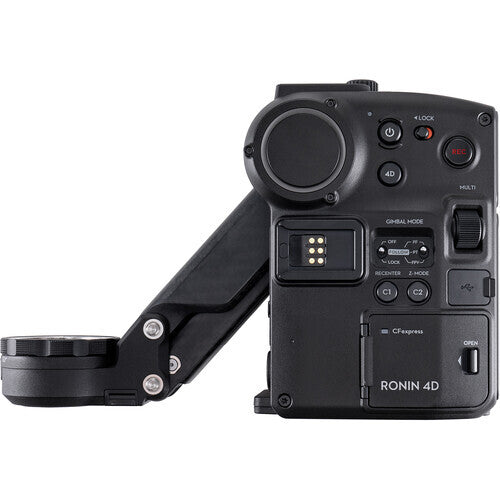

• Integrated CFexpress Type-B card slot

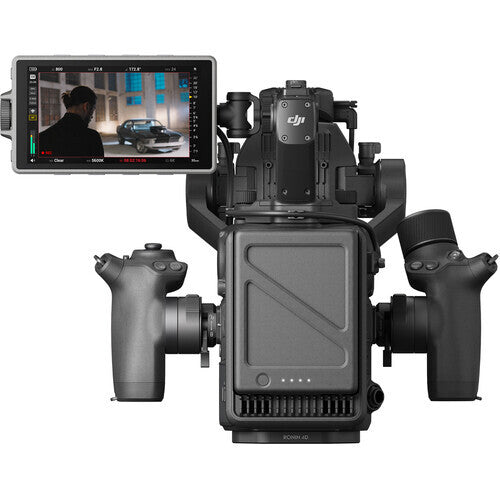

Built-In 5.5" Touchscreen Monitor

• 5.5" 1920 x 1080 monitor
• 1000 cd/m² display
• Touchscreen control
• Rotates for optimal viewing

Audio Recording

• Integrated stereo microphones capture dual-channel 24-bit audio
• Built-in 3.5mm audio input port and XLR port via expander plate

Power Options

• Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2
• Each battery provides up to 2.5 hours of capture time
• Batteries charge fully in approximately 1.5 hours
• Support auto-heating for cold weather use
• AC adapter for uninterrupted shooting

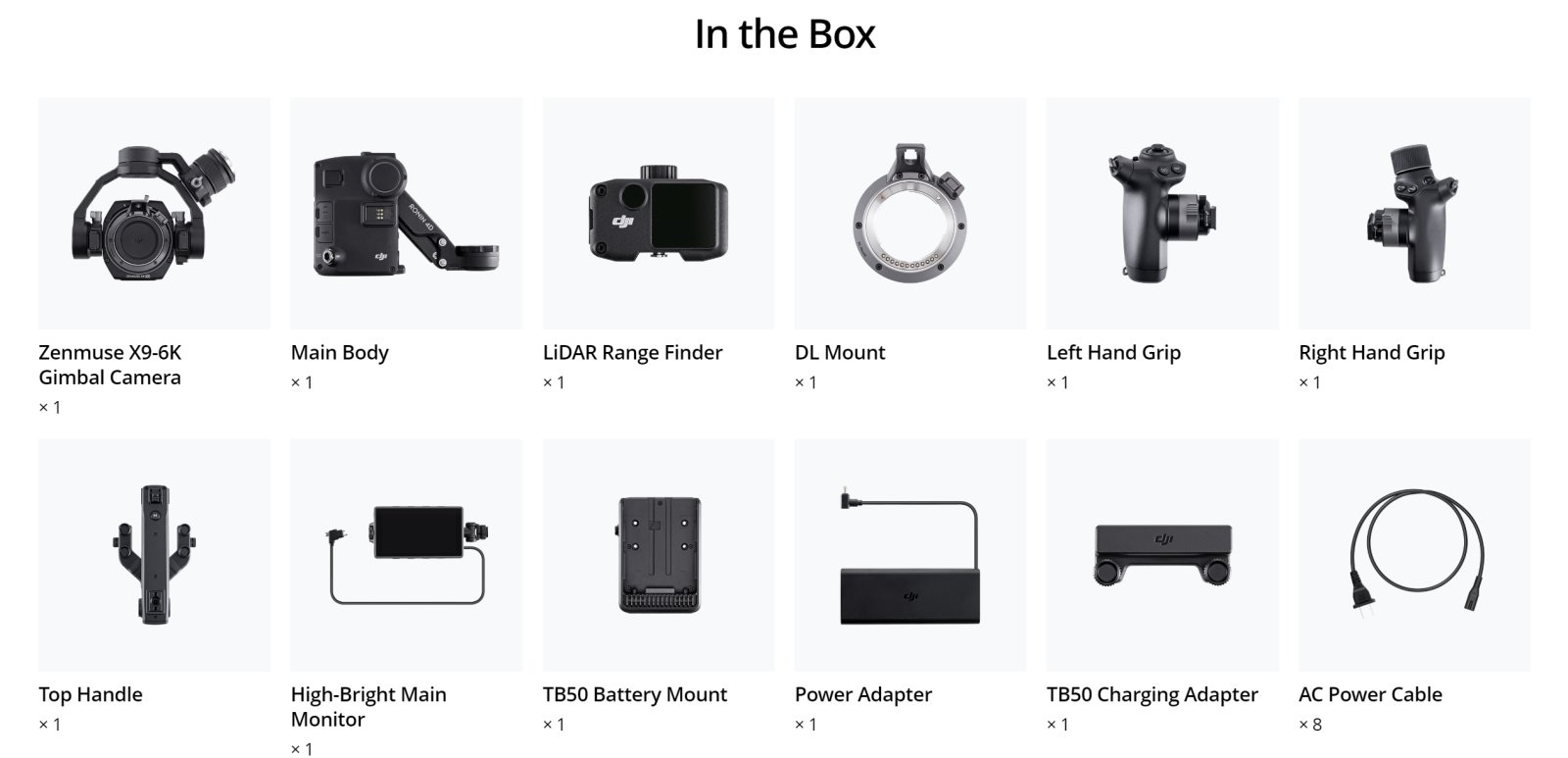

Besides the main body and the X9-6K full-frame gimbal camera, the 6K Combo includes the LiDAR Range Finder, High-Brightness Main Monitor, Hand Grips and Top Handle - All ready to be used right out of the box!

FAQs

How many versions does DJI Ronin 4D have? What are the differences between them?

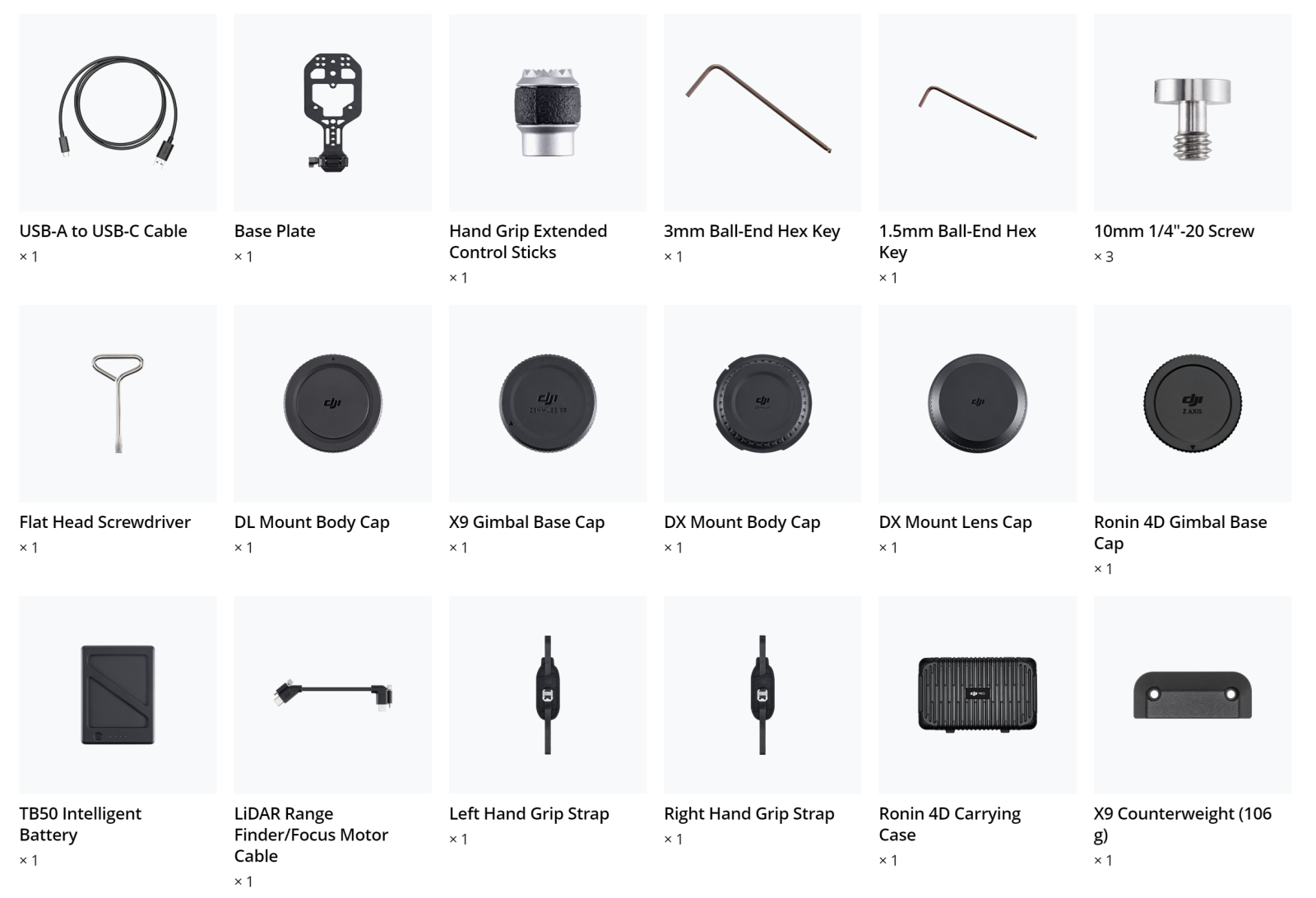

DJI Ronin 4D has two versions: a 6K Combo and an 8K Combo. Both combos include X9 gimbal cameras with different specifications. The 6K Combo features an X9-6K Gimbal Camera that supports video recording at resolutions up to 6K, and the 8K Combo features an X9-8K Gimbal Camera supporting video recording at resolutions up to 8K. Compared with the 6K Combo, the 8K Combo has an additional PROSSD 1TB, USB-C to USB-C Cable, PROSSD Mount, and other accessories. See DJI Ronin 4D In-the-Box for a detailed list of included items.

What is DJI Ronin 4D’s main body made of?

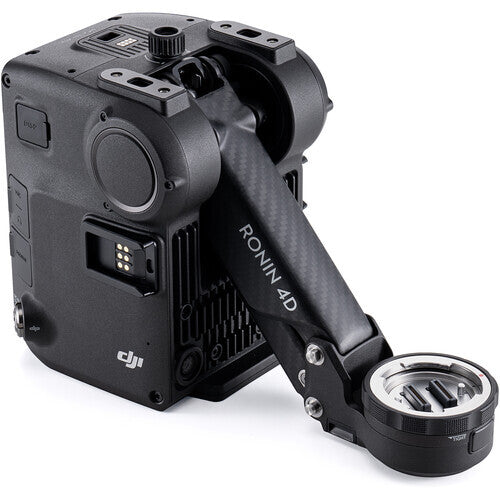

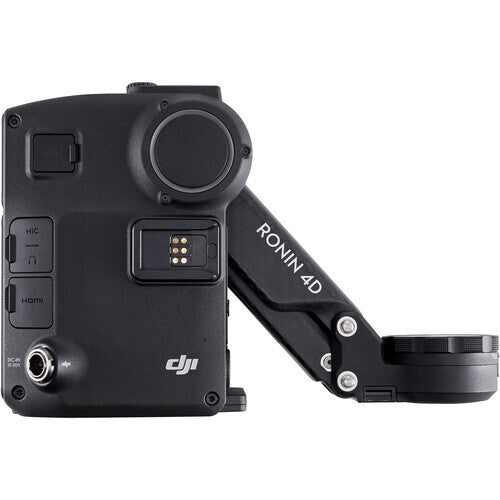

The main body of DJI Ronin 4D is crafted with aluminum magnesium alloy and the Z-axis arm with carbon fiber.

What is the effective pixel amount of Zenmuse X9 Gimbal Cameras?

The effective pixel number of Zenmuse X9-8K is 35.4 MP and X9-6K offers 24.1 MP.

What is the container format of different videos created by DJI Ronin 4D？

All in MOV.

Does the X9 gimbal support underslung shooting?

Yes, but the Z-axis is not available in underslung mode.

How is the LiDAR Range Finder different from the 3D focusing system of DJI RS 2?

The 3D focusing system of DJI RS 2 uses single-point focusing that only focuses on the center of the target, while the LiDAR Range Finder can cast 43,200 ranging points, enabling faster and more accurate focusing and providing visual focusing with the LiDAR Waveform.

How is ActiveTrack Pro different from previous ActiveTrack versions?

DJI's proprietary computer vision, deep learning technology, and the robust computing power of CineCore 3.0 allow ActiveTrack Pro to support the reliable tracking of almost any subject. It can effectively recognize human faces, heads, shoulders, and even arms and legs. Continuous tracking of people is available even from longer distances. You can now attain tracking shots effortlessly and even adjust composition at any time during tracking.

What devices are compatible with DJI Ronin 4D for remote control?

DJI Ronin 4D supports remote control with DJI Master Wheels, DJI Force Pro*, and with the left and right grips attached the High-Bright Remote Monitor. Internal motion control is also supported using the High-Bright Remote Monitor.*

* Using DJI Ronin 4D with DJI Master Wheels and DJI Force Pro requires the High-Bright Remote Monitor and Remote Monitor Expansion Plate. Please refer to the tutorial video Connecting DJI Ronin 4D with DJI Master Wheels and DJI Force Pro. Motion control with the High-Bright Remote Monitor is currently unavailable and will be supported through a future firmware update. Please stay tuned to the official website for more information.

How is DJI O3 Pro different from DJI O3?

DJI O3 is used mainly on drones, whereas DJI O3 Pro is specialized mainly for enhancing anti-interference for ground shooting. It supports control by up to two monitors at the same time, and has added DFS frequency band support.*

* Not available in certain countries and regions.

1. Requires additional purchase of 4D Video Transmitter and High-Bright Remote Monitor.

2. Range measured in an unobstructed environment free of interference with FCC compliance while using Control mode.
