DJI Ronin-SC Focus Motor (Part 06)
$189.00
Out of stock
Available on backorder
Overview
<div class="temp-
Specs
-tr" style="margin: 0px;padding: 0px;border: 0px;font-size: 14px;vertical-align: baseline;background-image: initial;background-position: initial;background-size: initial;background-repeat: initial;background-attachment: initial;display: flex;, arial, sans-serif">
Overview

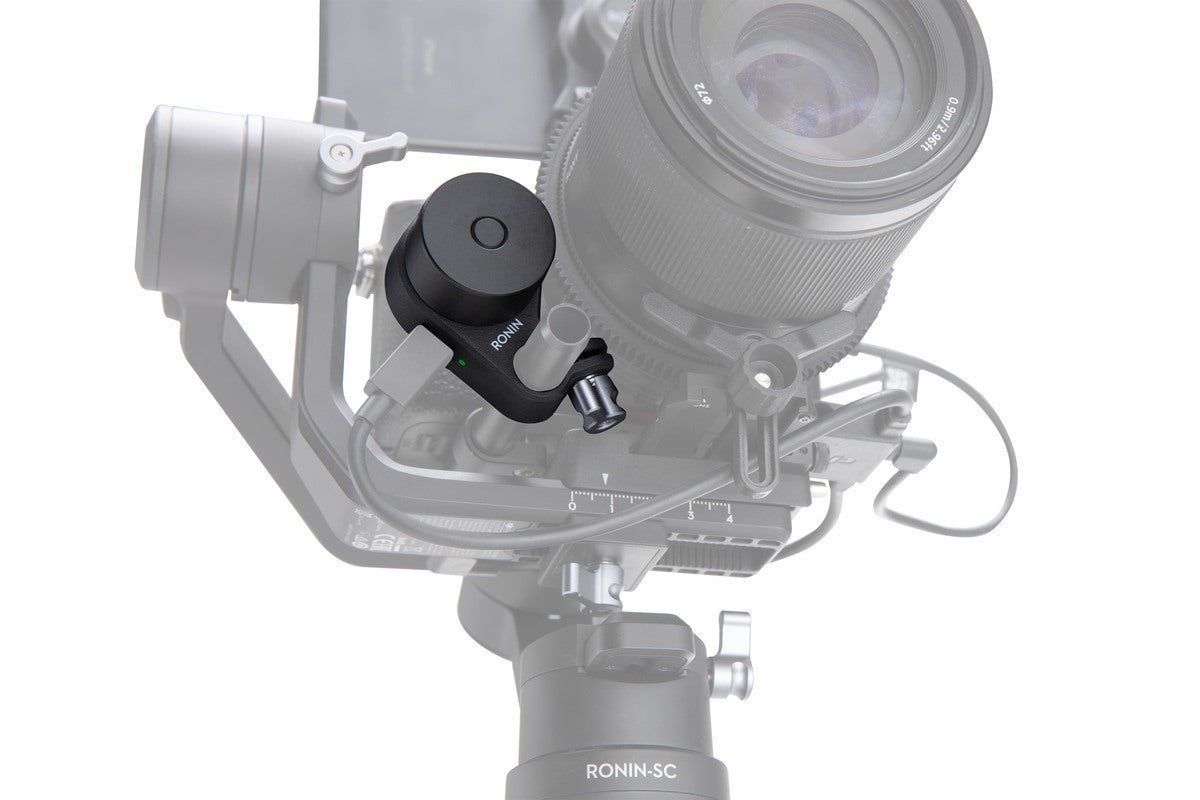

The Ronin-SC Focus Motor works with the Ronin-SC Focus Wheel to control the camera focus, providing optimal shooting experience with a compact, low-noise design.

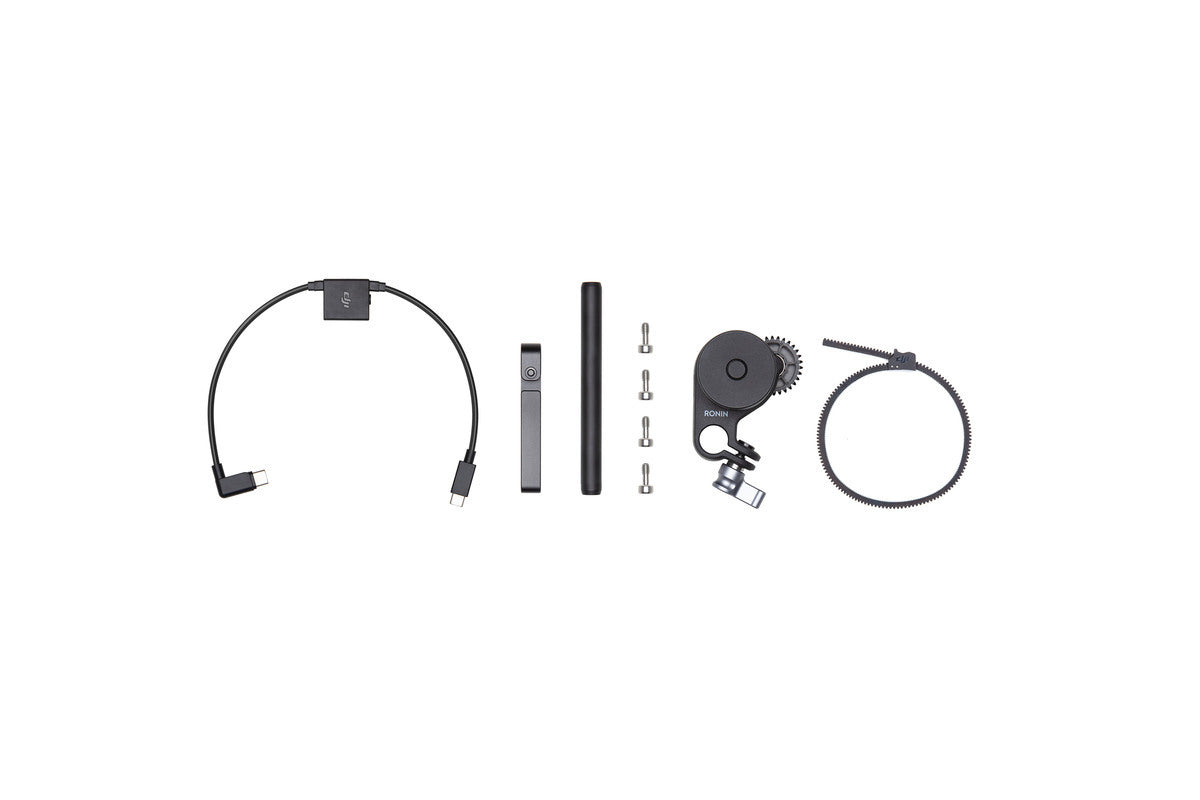

In The Box
Focus Motor × 1
Rod Mount × 1
12 mm Rod × 1
M4 Screw × 4
Focus Gear Strip × 1
RSS Splitter × 1
Specifications

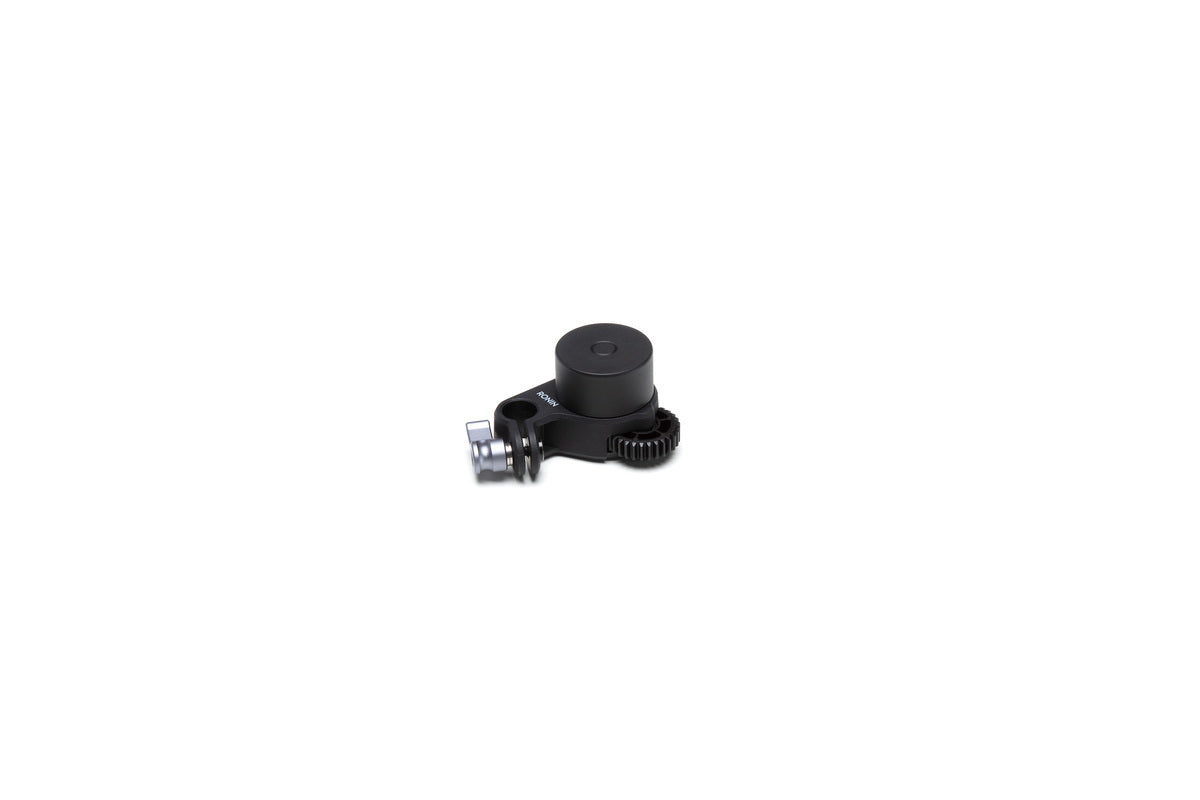

Focus Motor
Weight: 88 g
Dimensions: 71×47×34 mm
Max Torque: 0.2 Nm
Max Operating Speed: 100 RPM
Operating Current: Free current: 50 mA (5 V); Stall current: 1.2 A (5 V)
Operating Voltage: 5 V
Noise: 25 dB
Rod Clamp Inner Diameter: 12 mm
Gear: No. of teeth 40; Module: 0.8
Operating Temperature: -20 to 45°C
Gear:
No. of teeth: 151
Module: 0.8
Diameter: 30-110 mm
Length: 377 mm
