RAM Double Ball Mount with Garmin Fishfinder #8-32 Hardware

RAM Double Ball Mount with Garmin Fishfinder #8-32 Hardware

OVERVIEW

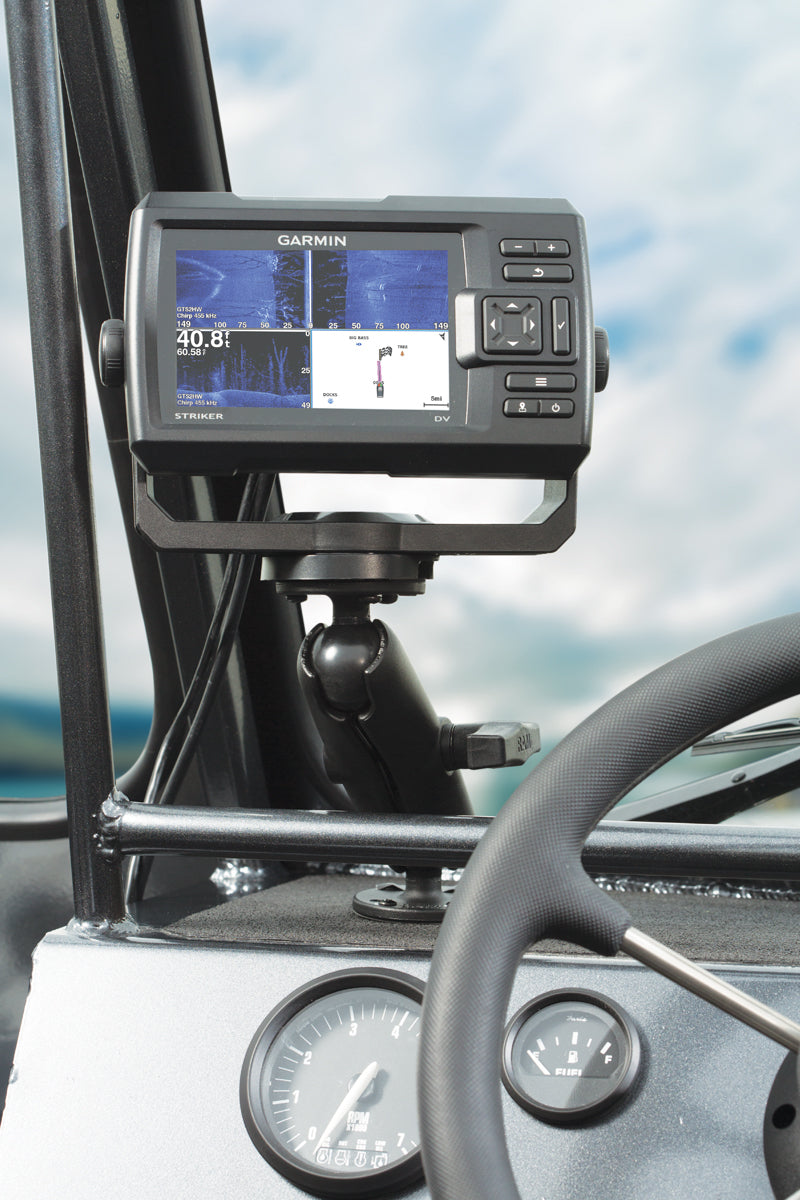

The RAM-101-G4 consists of a 6 inch double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and round adapter base that attaches directly to the back of the Garmin echo™. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. Included is hardware that is used to attach the Garmin echo™ to the RAM Mount. See other compatible Garmin devices under "compatibility".

HARDWARE INCLUDED

(3) #8-32 x 5/8" Machine Screws(3) #8-32 Nylock Nuts

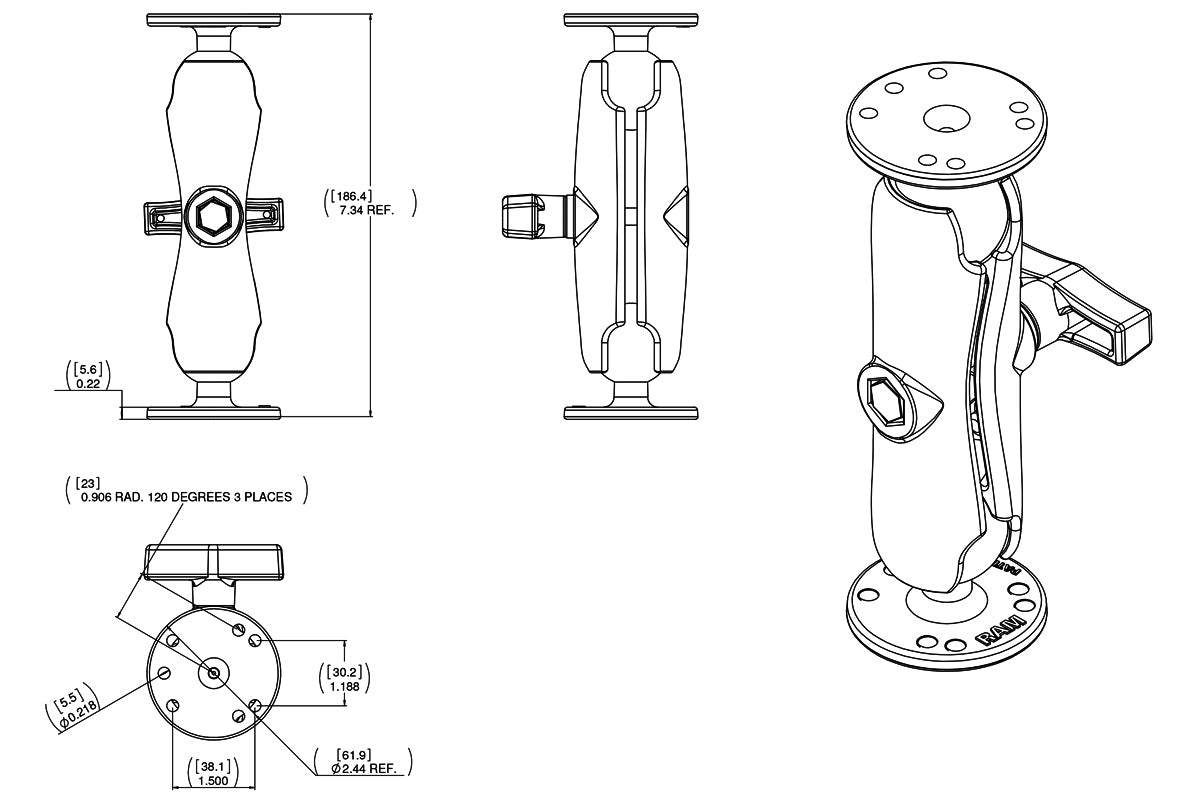

PRODUCT DIMENSIONS

Overall Height: 7.35"

SOCKET TO SOCKET LENGTH

4.66"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Retail Bag

WEIGHT

0.75 lb
