RAM® Double Ball Mount with 1/4″-20 Male Thread – C Size Long

RAM® Double Ball Mount with 1/4″-20 Male Thread – C Size Long

OVERVIEW

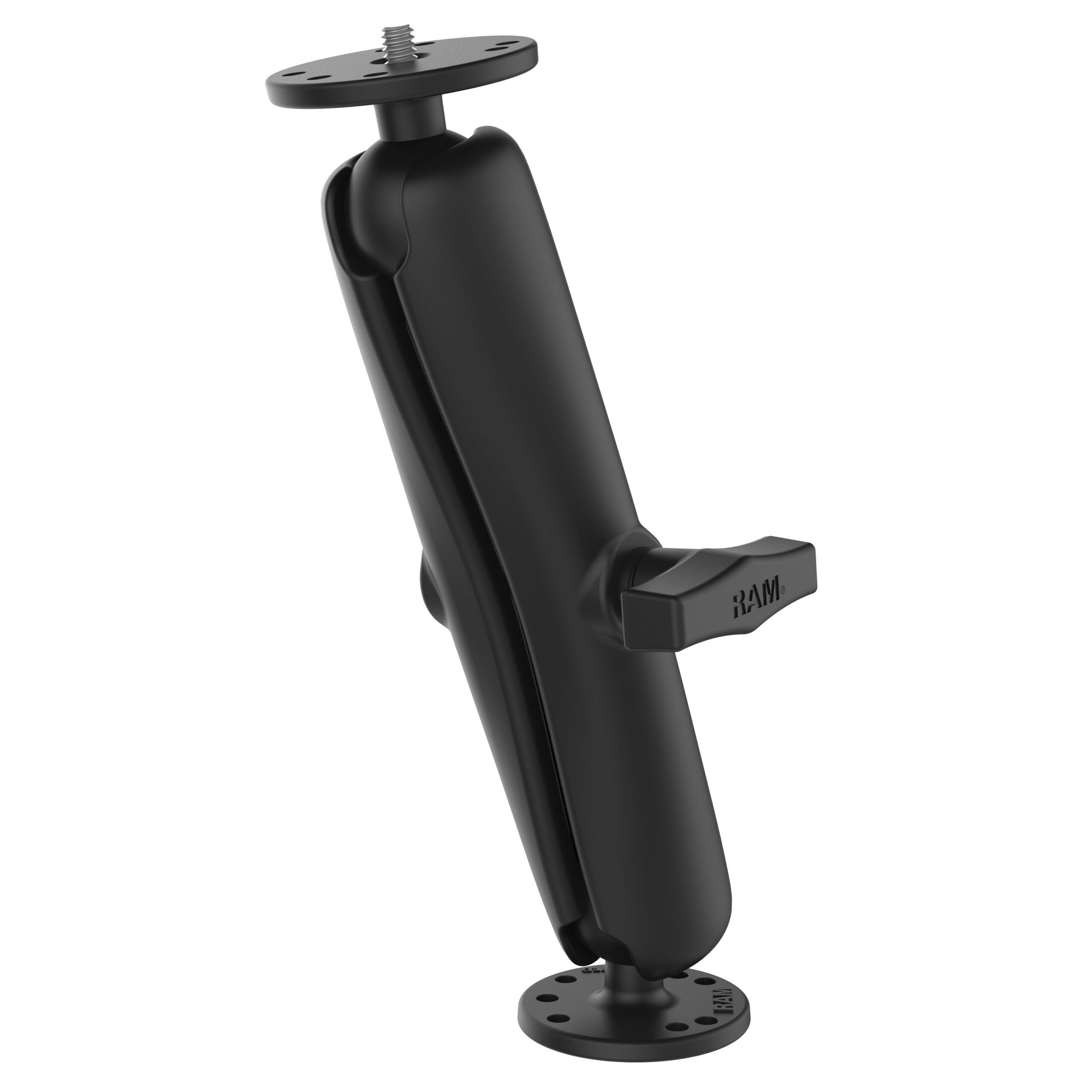

RAM-101AU-D consists of a double socket arm and two 2.5" diameter round bases that contain the universal AMPS hole pattern. One of those round plates has a 1/4"-20 male threaded post in the center. That threaded post can be removed to reveal a 1/4"-20 female threaded hole.

PRODUCT DIMENSIONS

Overall Height: 10.85"

SOCKET TO SOCKET LENGTH

8"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

2.15 lb
