RAM Dashboard Mount with Backing Plate for 9″-10.5″ Tablets with Cases

RAM Dashboard Mount with Backing Plate for 9"-10.5" Tablets with Cases

FEATURES

• Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
• Includes 4-hole AMPS pattern ball adapter, C size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

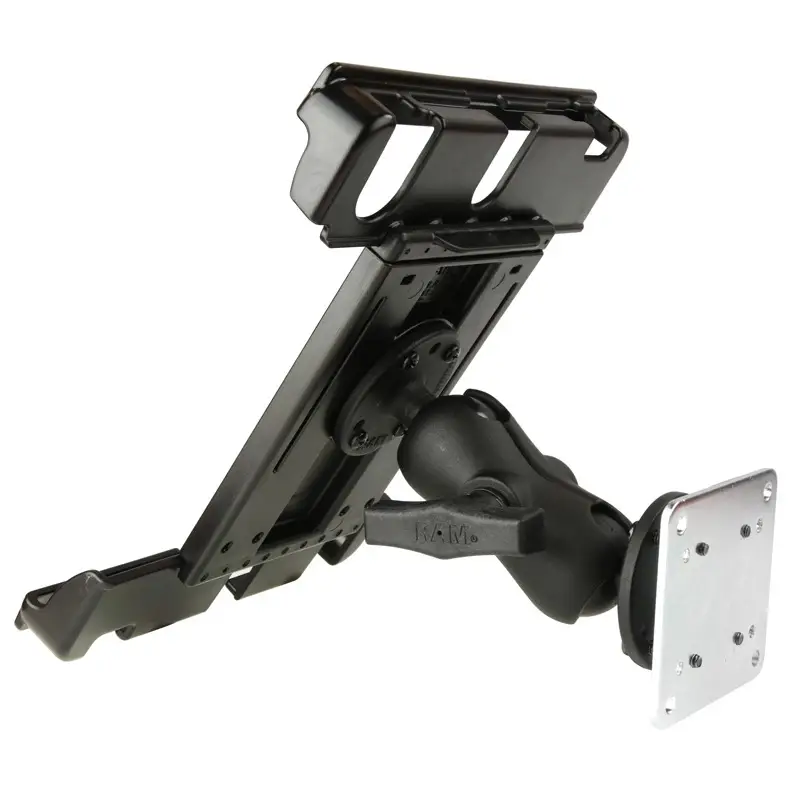

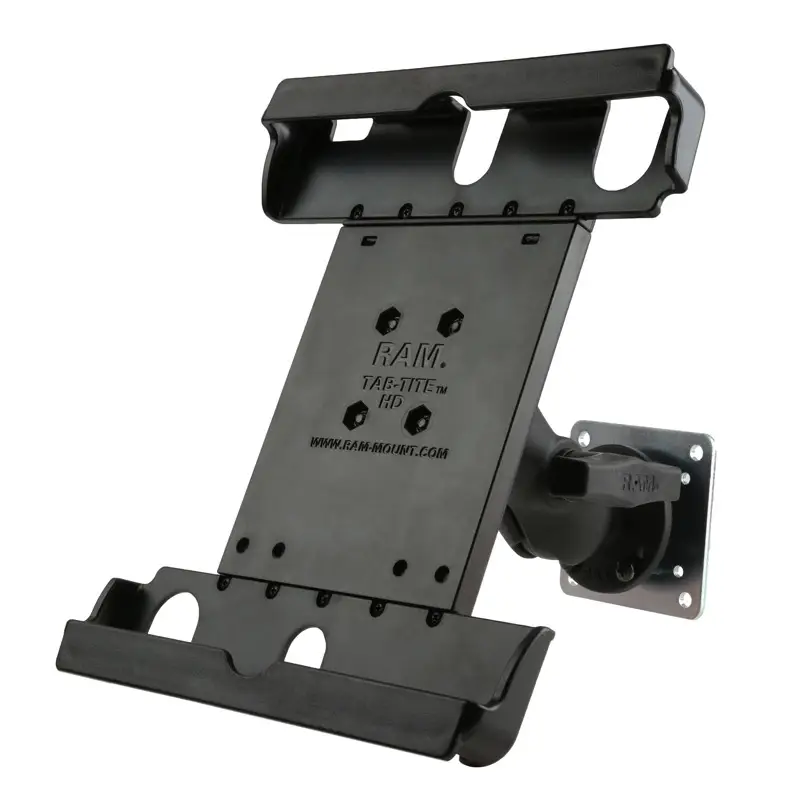

This vehicle kit consists of a RAM^® Tab-Tite^™ spring loaded holder for 9"-10.5" tablets with a case, medium C size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 3" x 3" backing plate, and mounting hardware. The mount is designed with a 1.5" diameter C size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

HARDWARE INCLUDED

Assembly Hardware
(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts

HOLDER DIMENSIONS

Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"

SOCKET-TO-SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum
High strength composite
Powder coated steel

COMPATIBILITY:

• Apple
  • iPad (5th Generation) with Case
  • iPad (6th Generation) with Case
  • iPad (7th Generation) with Case
  • iPad (8th Generation) with Case
  • iPad (9th Generation) with Case
  • iPad 9.7 (2017) with Case
  • iPad 9.7 (2018) with Case
  • iPad Air with Case
  • iPad Air 2 with Case
  • iPad Pro 10.5 (2nd Generation) with Case
• Asus
  • ZenPad 10 with Case
  • ZenPad 3S 10 with Case
  • ZenPad Z10 with Case
• Huawei
  • MediaPad M2 10.0 with Case
• Lenovo
  • Tab 2 A10-70 with Case
  • Tab 4 10 with Case
  • Tab 4 10 Plus with Case
  • Tab3 10 Business with Case
  • Yoga Tab 3 10 with Case
• LG
  • G Pad 10.1 with Case
  • G Pad II 10.1 with Case
  • G Pad X 10.1 with Case
  • G Pad X II 10.1 with Case
• Microsoft
  • Surface Go with Case
  • Surface Go 2 with Case
• Samsung
  • Galaxy Tab 10.1 with Case
  • Galaxy Tab 3 10.1 with Case
  • Galaxy Tab 8.9 with Case
  • Galaxy Tab A 9.7 with Case
  • Galaxy Tab A 10.5 with Case
  • Galaxy Tab Pro 10.1 with Case
  • Galaxy Tab S2 9.7 with Case
  • Galaxy Tab S3 9.7 with Case
  • Galaxy Tab S4 10.5 with Case
  • Galaxy Tab S6 with Case
  • Galaxy Tab S7 with Case
  • Galaxy Tab S8 with Case
• Sony
  • Xperia Tablet Z with Case
