RAM® Locking Drill-Down Dashboard Mount with Backing Plate – C Size Med

RAM Mounts

$161.00


RAM Drill-Down Dashboard Ball Base with Backing Plate - C Size

$55.00
images

RAM Double Socket Arm with RAM Pin-Lock Security Knob - C Size Medium

$71.00

RAM Round Plate with Ball - C Size

$35.00

In stock

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-101L-225B2U Categories , ,
Overview

Overview

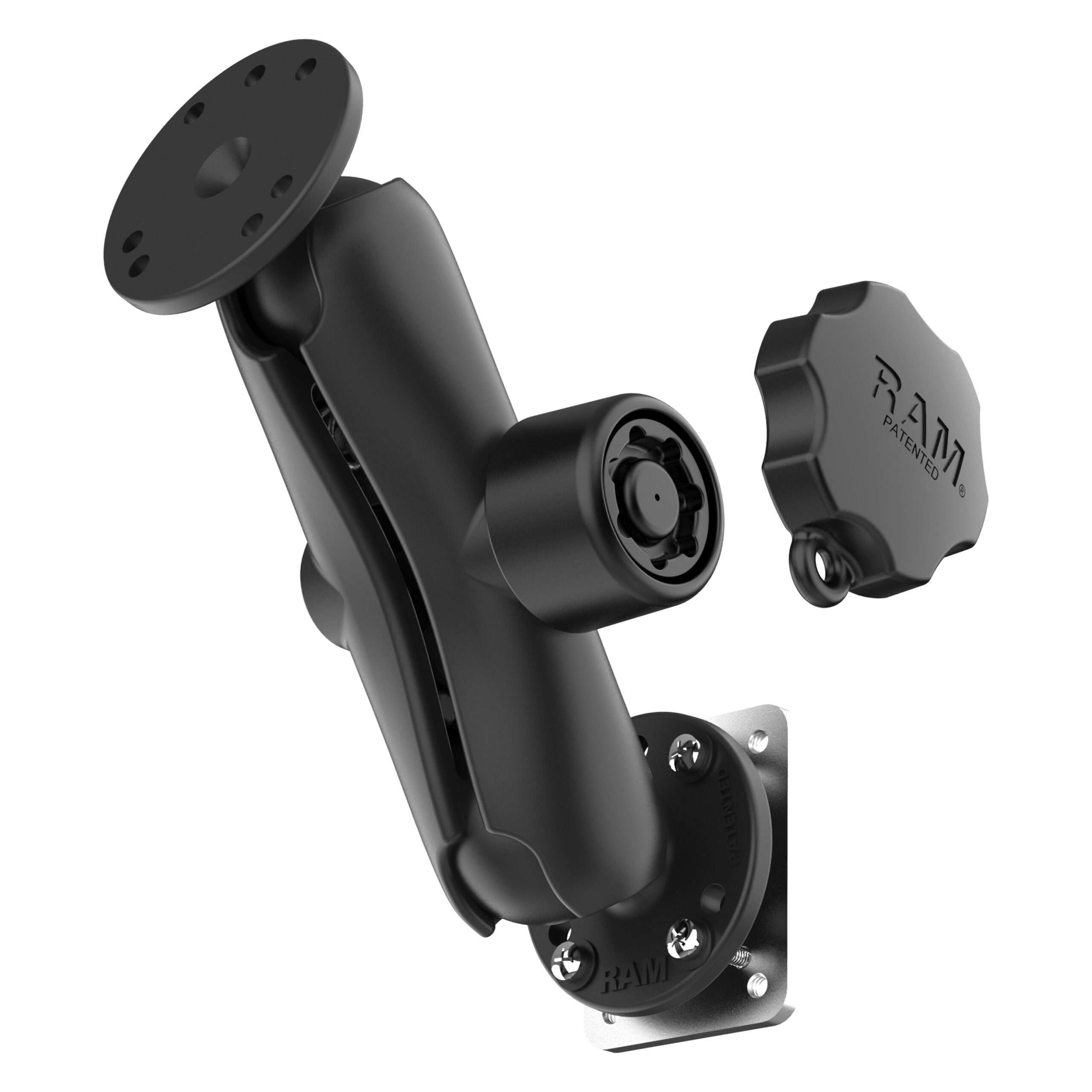

The RAM® Locking Drill-Down Dashboard Mount with Backing Plate - C Size Med (RAM-101L-225B2U) is our go-to mount and component option for securing any holder or dock to a vehicle dashboard. This bundle includes a C size medium length double socket arm with a Pin-Lock™ Security Knob, two round 2.5" diameter round bases with the universal AMPS hole pattern, and one 2.10” x 2.60” steel backing plate (hardware included). RAM®'s patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling perfect viewing and operating angle of your device.

Features

  • Drill-down double ball mount with 2.10" x 2.60" steel backing plate that connects to RAM® components containing the universal AMPS hole pattern
  • Theft deterring, tamper resistant security knob provides peace of mind
  • Includes C size 1.5" RAM® rubber ball and medium length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specs

Hardware Included

(1) Key
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Machine Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

Product Dimensions

Overall Height: 7.35"

Socket To Socket Length

4.66"

Hole Pattern

Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Ball Size

C Size (1.5")

Weight Capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials

Marine-grade aluminum
Steel

Packaging Type

Poly Bag

Weight

1.41 lb
