RAM® 3″ Square Post Clamp Mount with Round AMPS Plate – Medium Arm

RAM® 3″ Square Post Clamp Mount with Round AMPS Plate – Medium Arm

OVERVIEW

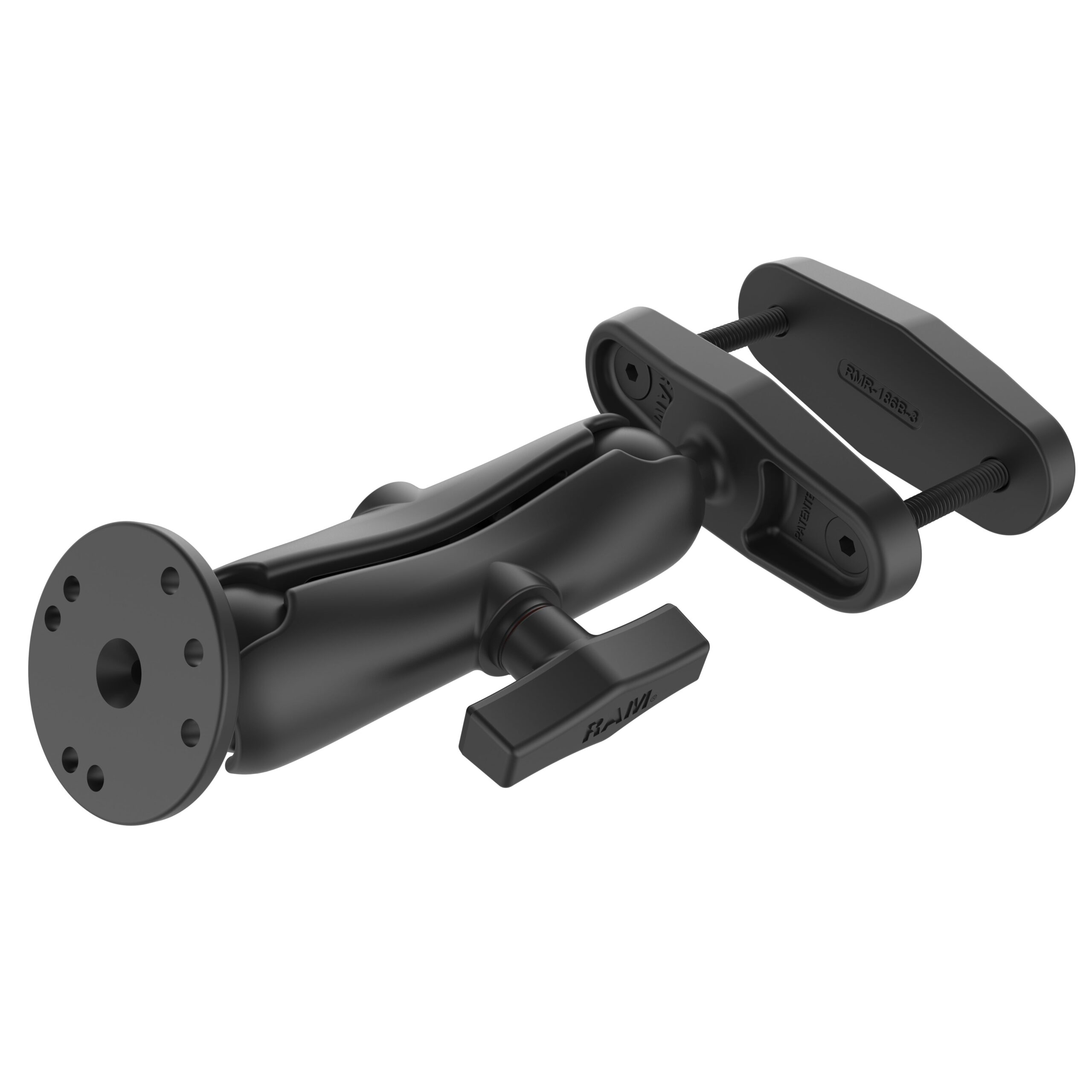

The RAM-101U-247-3 consists of a 6 inch double socket arm, round 2.5" diameter round base with the universal AMPS hole pattern and 3" clamp base. The clamp base will wrap around a maximum width of 3" and is tightened by screwing the two plates together with the included nuts and bolts. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

HARDWARE INCLUDED

(2) 5/16"-18 x 3" Machine Screws(2) 5/16"-18 Nylock Nuts

PRODUCT DIMENSIONS

Overall Height: 7.85"

CLAMP RANGE

3" max width

SOCKET TO SOCKET LENGTH

4.66"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.81 lb
