RAM® Round Post Clamp Mount with Round Plate

RAM® Round Post Clamp Mount with Round Plate

OVERVIEW

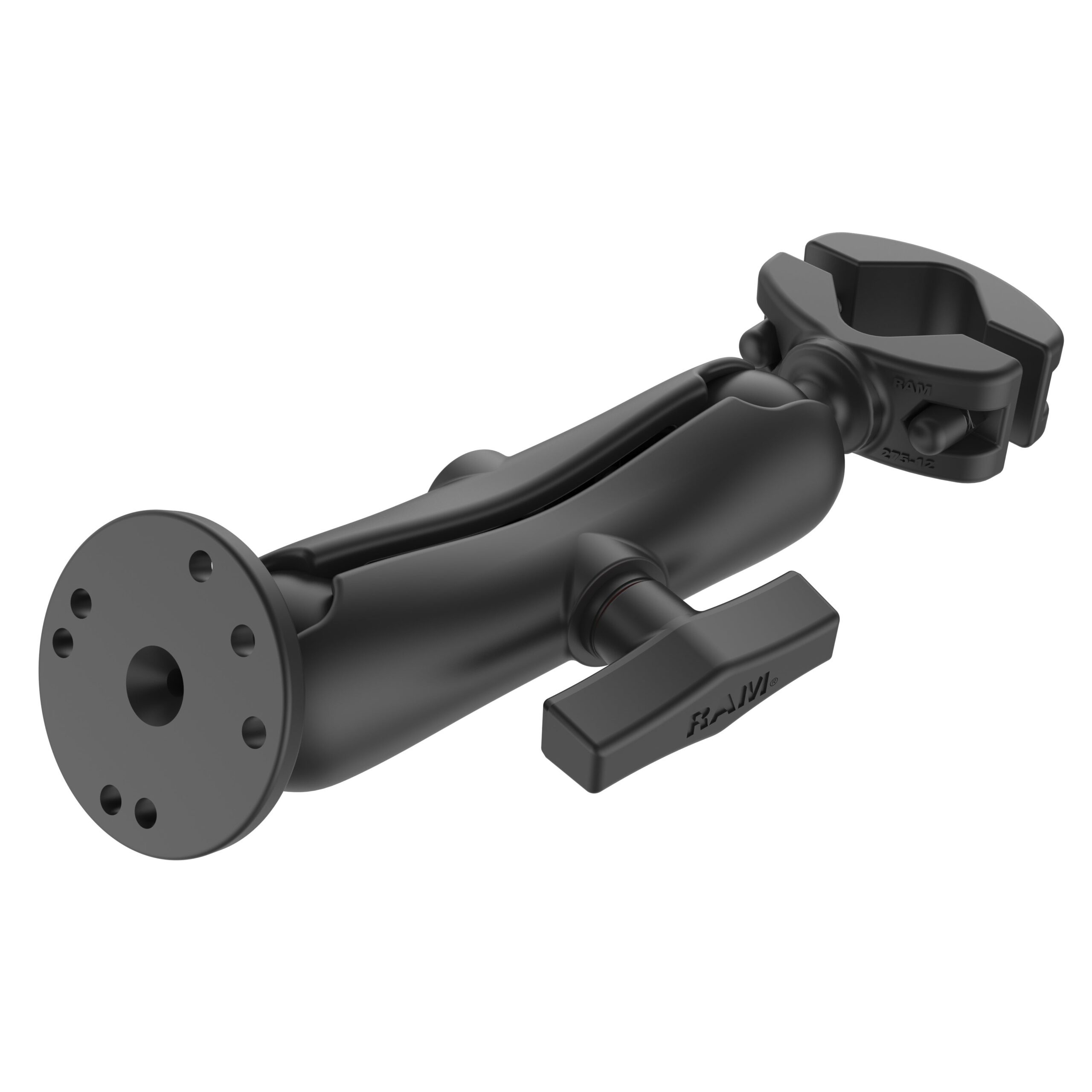

The RAM-101U-271-12 consists of a double socket arm, a 2.5" diameter round base, and a clamping base compatible with rails from 1.25" and 1.875" in diameter

HARDWARE INCLUDED

(2) 1/4"-20 x 1.5" Machine Screws(2) 1/4"-20 Nylock Nuts(2) Rubber Caps

CLAMP RANGE

1.25" - 1.875" diameter

SOCKET TO SOCKET LENGTH

4.66"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.55 lb
