RAM® Double Ball Mount with 100x100mm VESA Plate – C Size Short

RAM® Double Ball Mount with 100x100mm VESA Plate – C Size Short

OVERVIEW

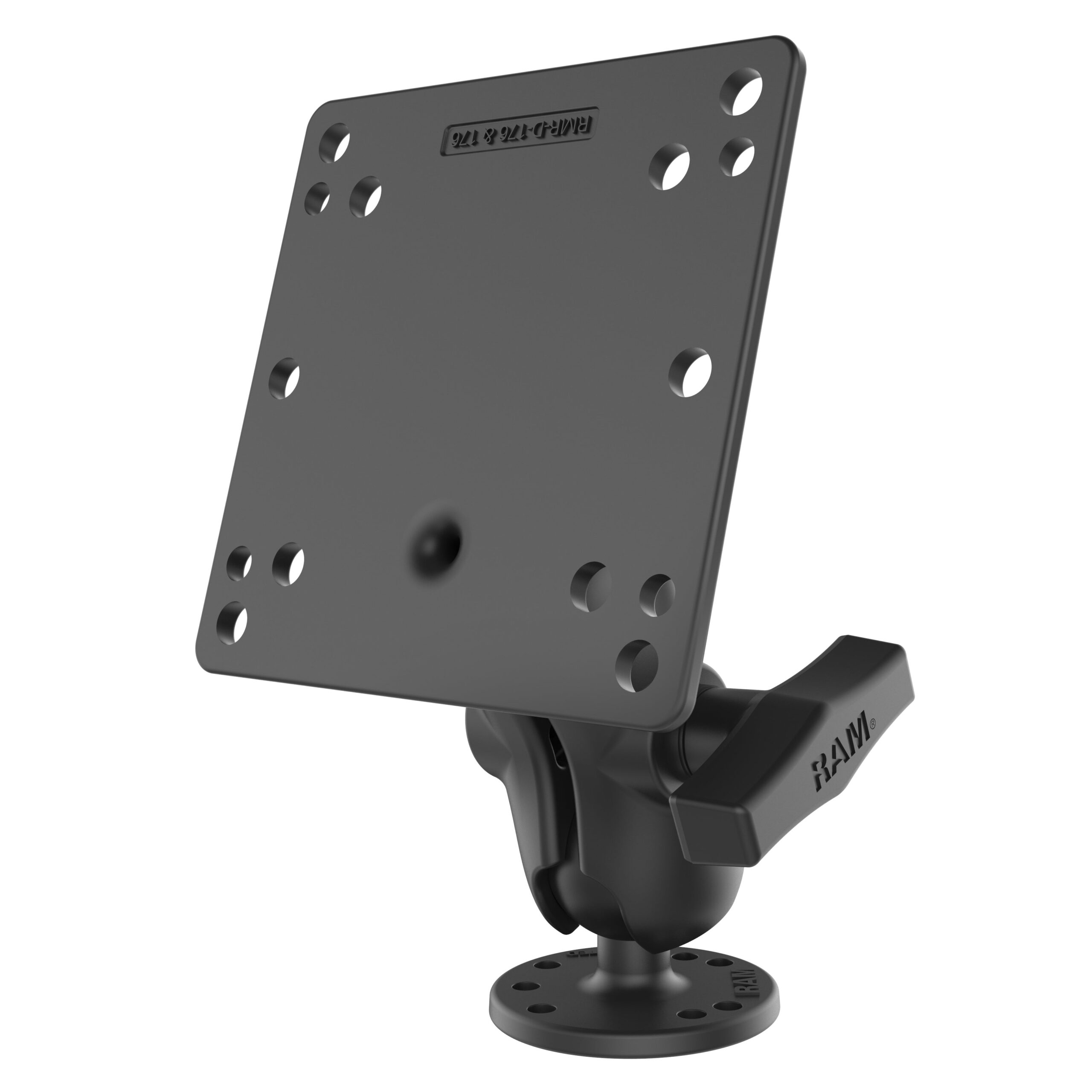

The RAM-101U-B-246 consists of a 2.5" diameter round base with the universal AMPS hole pattern, SHORT length double socket arm and 4.75" square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm and 100mm X 100mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

(4) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS

Overall Height: 5.225"

SOCKET TO SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" DiameterSee Drawing

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.31 lb
