RAM® Double Ball U-Bolt Mount with Round Plate

RAM® Double Ball U-Bolt Mount with Round Plate

OVERVIEW

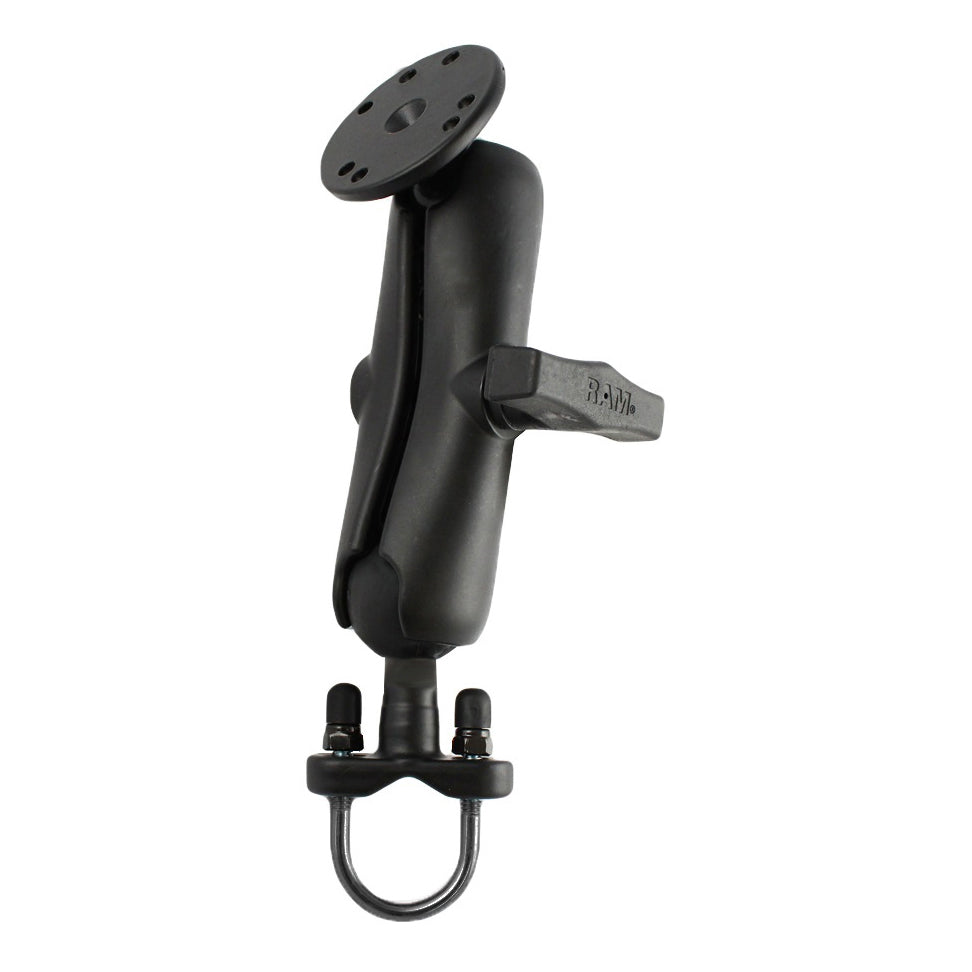

The RAM-101U-IP1 consists of a zinc coated u-bolt base, double socket, arm and 2.5" diameter round base that contains the universal AMPs hole pattern. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allows for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

(1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

4.66"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.24 lb
