RAM Double Socket Arm with Round Ball Plate – C Size Short

RAM Double Socket Arm with Round Ball Plate – C Size Short

OVERVIEW

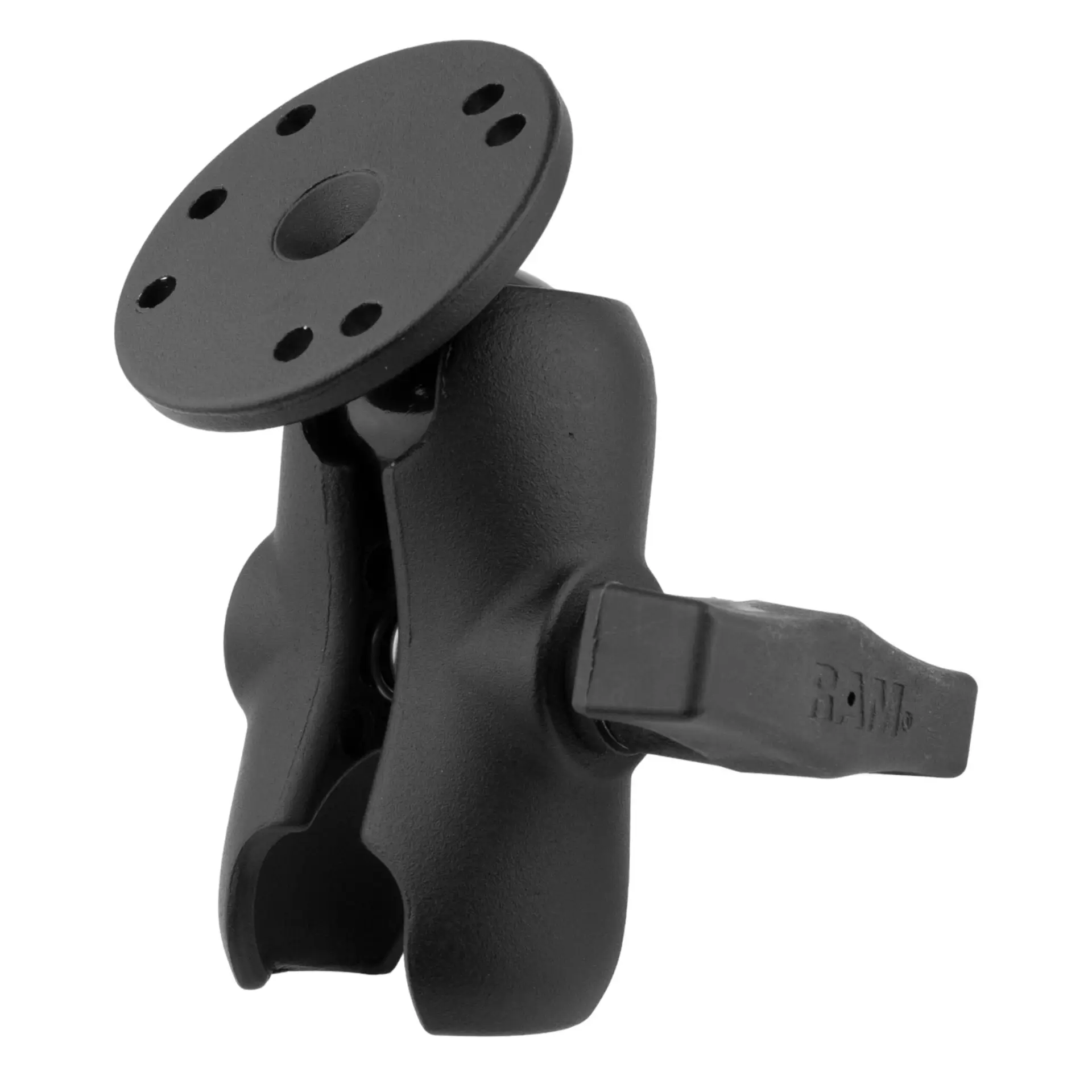

The RAM-103U-B consists of the 1.5" diameter ball and socket system with one open socket end. This mount is designed to be used with any of the RAM mounting bases or cradles with a 1.5" diameter rubber ball. The round base has a 1.5" diameter rubber ball connected at right angles to a 2.5" diameter base. The plate has pre-drilled holes in the base, including the universal AMPS hole pattern.

SOCKET TO SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.71 lb
