RAM Fishfinder Mount for Humminbird Devices – C Size Medium

OVERVIEW

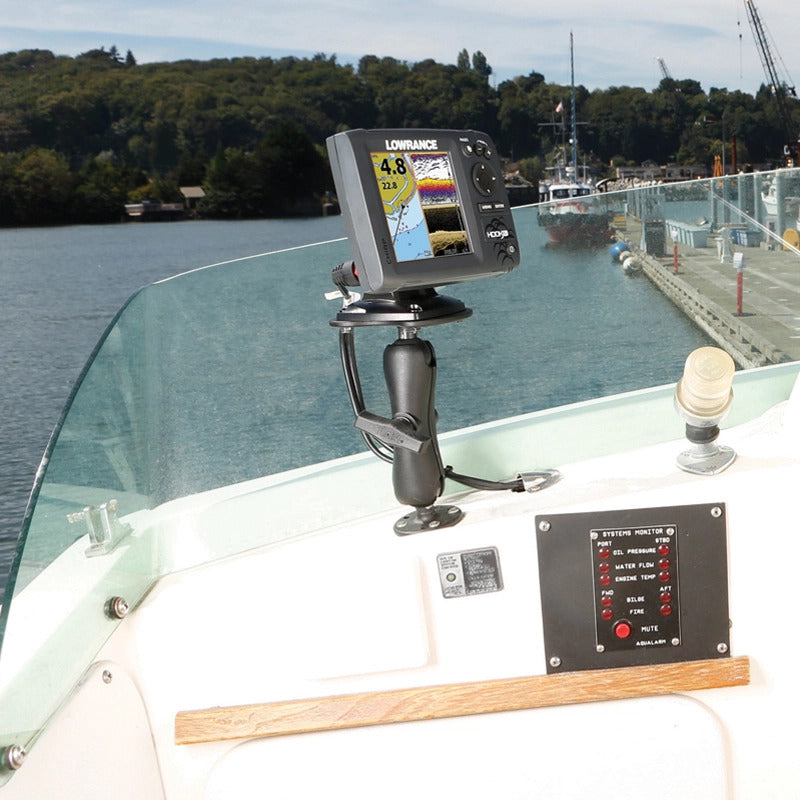

The RAM-107U consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

PRODUCT DIMENSIONS:

Overall Height: 7.35"

SOCKET-TO-SOCKET LENGTH:

4.66"

HOLE PATTERN:

• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" Diameter
• See Drawing

PLATE SIZE:

• Top Plate: 4.25" x 3.81"
• Round Plate: 2.5" Diameter

BALL/SOCKET SIZE:

C Size (1.5")

WEIGHT CAPACITY:

• Standard Use: 4 lbs
• Heavy-Duty Use: 3 lbs

MATERIALS:

Marine-grade aluminum

COMPATIBLE DEVICES

• Humminbird
  • 700 Series
  • 600 Series
  • 500 Series
  • 300 Series
  • 100 Series
  • Matrix Series (excluding Matrix 97)
• Lowrance
  • Elite-5
  • Elite-5M
  • Elite-5X
• Raymarine
  • Apelco Fishfinder with matching hole pattern
