RAM® Trolling Motor Stabilizer with Strap Hose Clamp – Short

RAM® Trolling Motor Stabilizer with Strap Hose Clamp – Short

OVERVIEW

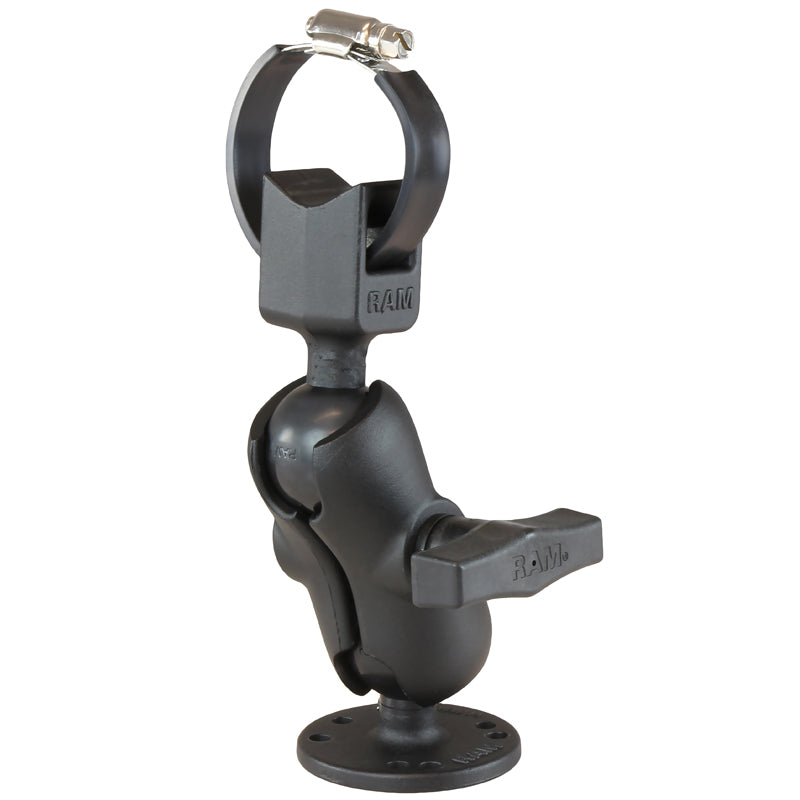

The RAM-108-BU consists of a adjustable strap clamp base, short double socket arm and 2.5" diameter round base that contains the universal AMPs hole pattern. The strap will accommodate rails from 1" to 2.1" in diameter. Included is a rubber protection strip to help reduce vibration and to prevent scratching of the mounting surface.

HARDWARE INCLUDED

(1) #20 Worm Drive Strap Clamp(1) #28 Worm Drive Strap Clamp(1) 6" Rubber Strip

PRODUCT DIMENSIONS

Overall Height: 6.875"

CLAMP RANGE

1" - 2.1" diameter

SOCKET TO SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.15 lb
