RAM Horizontal 6″ Swing Arm Mount with Ball & Socket Rectangular Plate

OVERVIEW

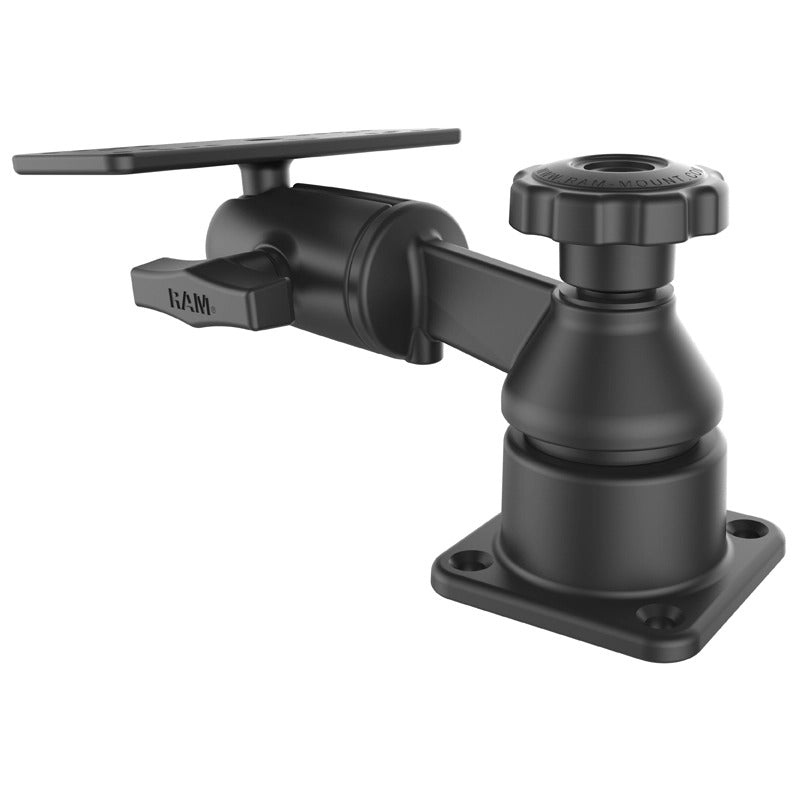

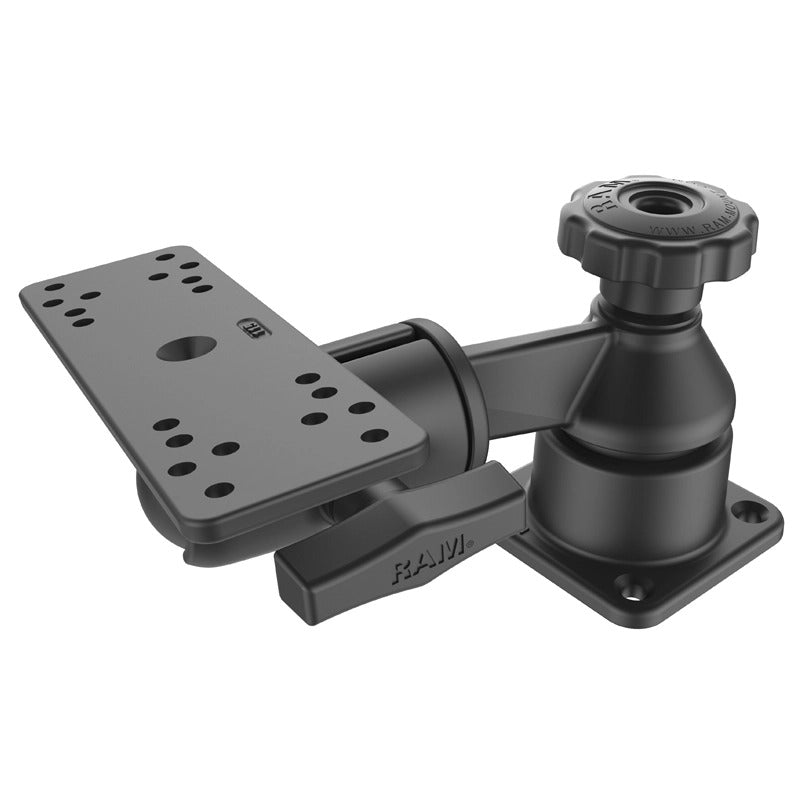

The RAM single swing and socket arm mount includes a 6" STRAIGHT swing arm mounted on a horizontal surface mounting base. At the end of the mount is a rectangular 6.25" x 2" top base. The pivoting point of the rectangle base allows 180 degree rotation, the swing arm allows a 360 degree rotation.

PRODUCT DIMENSIONS:

Swing Arm Length: 6"

HOLE PATTERN:

See Drawing

BALL/SOCKET SIZE:

C Size (1.5")

WEIGHT CAPACITY:

• Standard Use: 4 lbs
• Heavy-Duty Use: 3 lbs

MATERIALS:

Marine-grade aluminum

PACKAGING TYPE:

Retail Bag

WEIGHT:

1.98 lbs.

ADDITIONAL INFORMATION

• The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

COMPATIBLE DEVICES

Garmin

• ECHOMAP Plus 72cv
• ECHOMAP Plus 73cv
• ECHOMAP Plus 74cv
• ECHOMAP Plus 75cv
• ECHOMAP Plus 77cv
• GPSMAP 722
• GPSMAP 722xs
• GPSMAP 723
• GPSMAP 723xsv
• GPSMAP 742
• GPSMAP 742xs
• GPSMAP 743
• GPSMAP 743xsv
• Striker Plus 5cv
• Striker Vivid 5cv
• Striker Plus 7cv
• Striker Plus 7sv
• Striker Vivid 5cv
• Striker Vivid 7cv
• Striker Vivid 7sv
• Fishfinders and GPS Chartplotters

Lowrance

• HDS Carbon 7
• HDS LIVE 7
• Fishfinders and GPS Chartplotters

Humminbird

• Fishfinders and GPS Chartplotters

Raymarine

• Fishfinders and GPS Chartplotters
