RAM® Universal Marine Electronic Mount for Square Posts up to 2″ Wide

RAM® Universal Marine Electronic Mount for Square Posts up to 2″ Wide

OVERVIEW

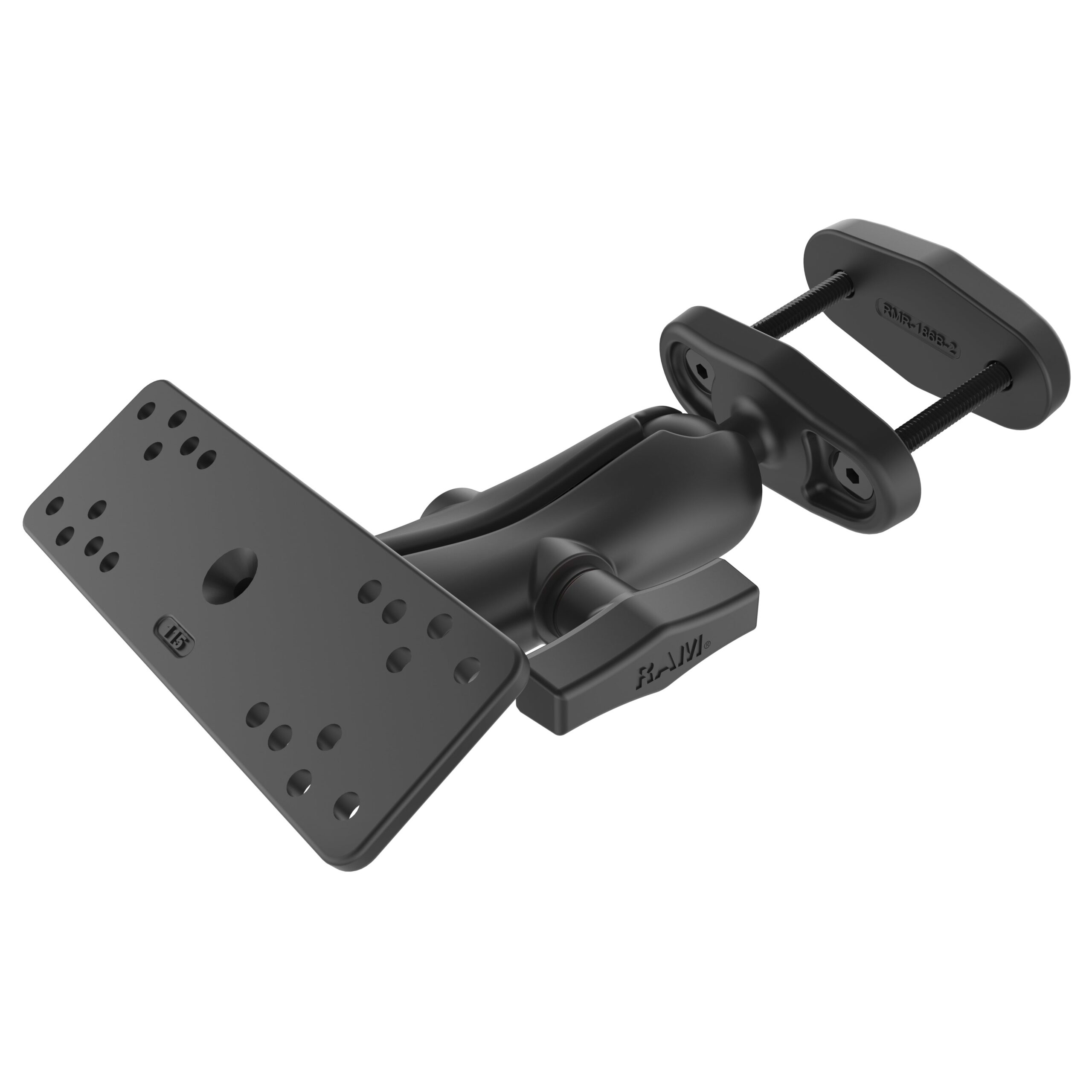

The RAM-111-247-2U with clamp base, consists of the 1.5 inch diameter ball and socket system with RAM universal rectangular 6.25 x 2 inch base. This mount is designed to be a universal mounting solution for large and heavy electronic devices, including GPS, CB Radios, Ham Radios and more. The hole pattern found on the rectangular base will connect to a large variety of third party cradle, gimbal brackets and mounts. The mounting base is a perfect solution for mounting to the cabin frame work on a forklift, or any other square post up to 2 inches square.

HARDWARE INCLUDED

(2) 5/16"-18 x 3" Machine Screws(2) 5/16"-18 Nylock Nuts

CLAMP RANGE

2" max width

SOCKET TO SOCKET LENGTH

4.66"

HOLE PATTERN

See Drawing

PLATE SIZE

6.25" x 2"

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

5.0 lb

ADDITIONAL INFORMATION

The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
