RAM Drill-Down Marine Electronic Mount with Cable Manager

FEATURES

• Complete flat surface, drill-down mounting solution with an overall height of 7.35"; RAM® ball and socket technology allows for near-infinite adjustability
• Includes RAM® cable manager to route electrical wiring and cover installation holes
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

OVERVIEW

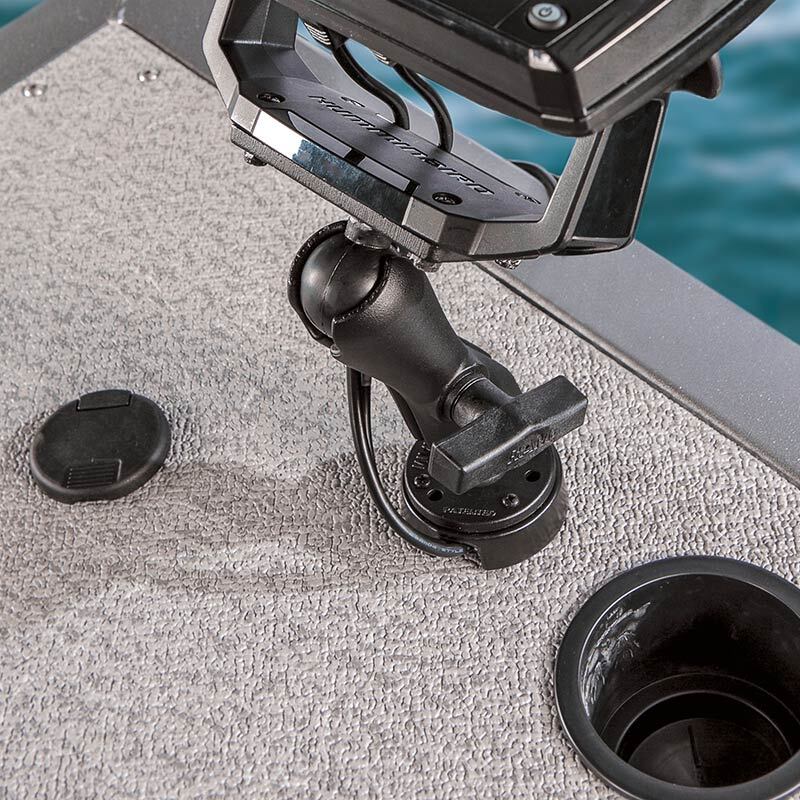

This marine electronic mounting kit consists of a medium double socket arm, 2.5" diameter round base, 6.25" x 2" rectangle base, and the RAM^® cable manager. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters. To route electrical wiring and cover installation holes cleanly, this kit also features the RAM^® cable manager. While creating a barrier between the surface mount and the attachment area, the cable manager helps to minimize vibration while reducing fiberglass and gel-coat damage.

HARDWARE INCLUDED

(4) #10-24 x 2" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10 Fender Washers

PRODUCT DIMENSIONS

Overall Height: 7.95"
Cable Slot Height: .56"
Cable Slot Width: .7"

CLAMP RANGE

Max mounting surface thickness: .68"

SOCKET-TO-SOCKET LENGTH

4.66"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

PLATE SIZE

Top Plate: 6.25" x 2"
Bottom Plate: 2.5" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum
High strength composite
