RAM® Rectangular Plate Adapter for Swing Arm Mounts

RAM® Rectangular Plate Adapter for Swing Arm Mounts

OVERVIEW

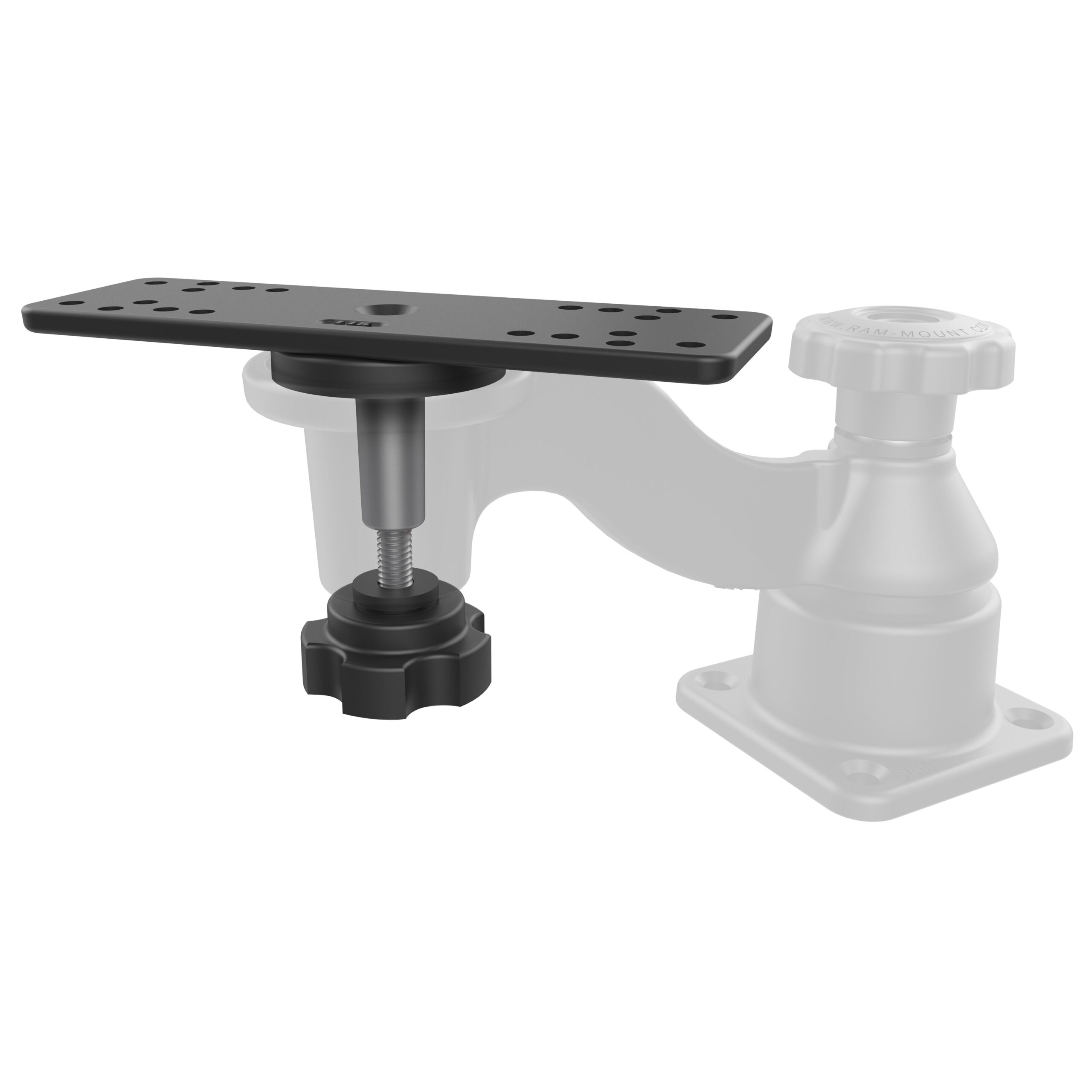

The RAM-111BT universal base has a short post connected at right angles to a flat 6.25 x 2 inch rectangular base. The base has many different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. The small post on the base is designed to connect to the RAM-109 series arms. Included on the end of the post is a tightening knob for use when installed on the compatible RAM-109 series arm.

HARDWARE INCLUDED

(1) 2" Nylon Washer(1) 1.7" Nylon Washer(1) 5/16" Stainless Steel Washer(1) .77" Nylon Washer(1) 5/16"-18 x 1.25" Knob

HOLE PATTERN

See Drawing

PLATE SIZE

6.25" x 2"

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.49 lb

ADDITIONAL INFORMATION

The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
