RAM Universal Marine Electronic Mount – C Size Short

$124.00

In stock

SKU RAM-111U-B Categories ,
Overview

FEATURES

  • Complete flat surface, drill-down mounting solution with an overall height of 5.225"

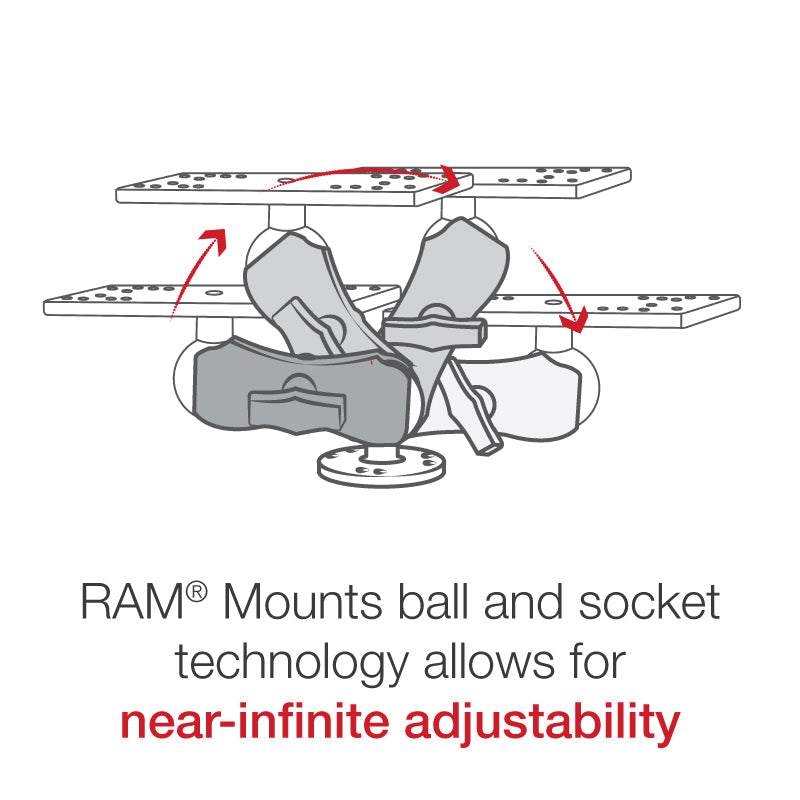

  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

OVERVIEW

The RAM-111U-B consists of a short double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.

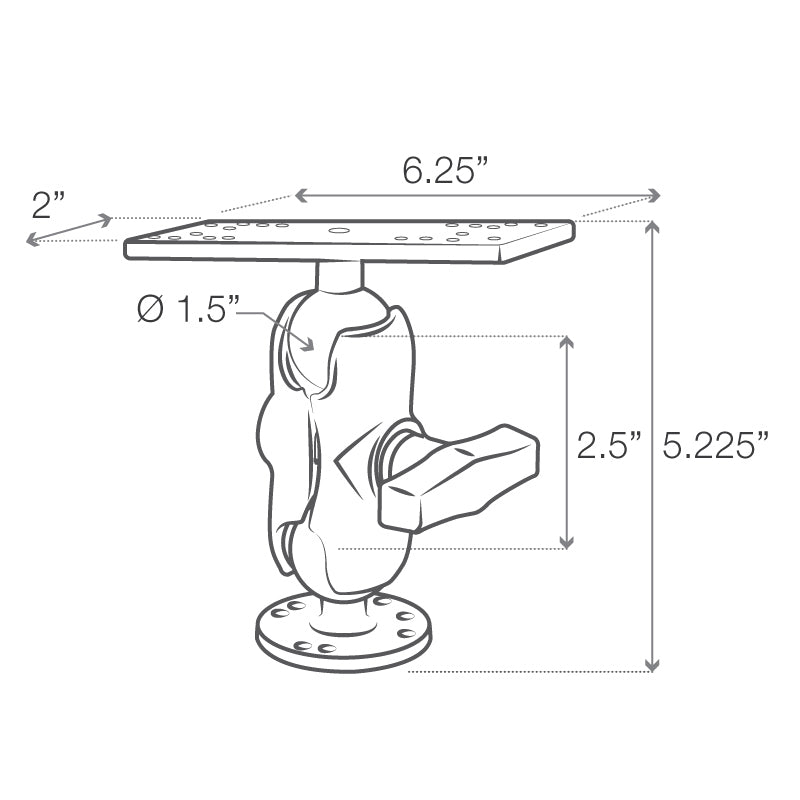

PRODUCT DIMENSIONS

Overall Height: 5.225"

SOCKET-TO-SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

PLATE SIZE

Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

WEIGHT

1.08 lbs.

ADDITIONAL INFORMATION

  • The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.



  • Garmin
    • ECHOMAP Plus 72cv
    • ECHOMAP Plus 73cv
    • ECHOMAP Plus 74cv
    • ECHOMAP Plus 75cv
    • ECHOMAP Plus 77cv
    • GPSMAP 722
    • GPSMAP 722xs
    • GPSMAP 723
    • GPSMAP 723xsv
    • GPSMAP 742
    • GPSMAP 742xs
    • GPSMAP 743
    • GPSMAP 743xsv
    • Striker Plus 5cv
    • Striker Vivid 5cv
    • Striker Plus 7cv
    • Striker Plus 7sv
    • Striker Vivid 5cv
    • Striker Vivid 7cv
    • Striker Vivid 7sv
    • Fishfinders and GPS Chartplotters
  • Lowrance
    • Elite FS 7
    • Elite FS 9
    • HDS Carbon 7
    • HDS LIVE 7
    • Hook Reveal 7 Series
    • Hook Reveal 9 Series
    • Fishfinders and GPS Chartplotters
  • Humminbird
    • Fishfinders and GPS Chartplotters
  • Raymarine
    • Fishfinders and GPS Chartplotters
