RAM Universal Marine Electronic Mount – C Size Long

FEATURES

• Complete flat surface, drill-down mounting solution with an overall height of 10.68"
• Includes C size long socket arm, 2.5" diameter flat surface drill-down base, and a 6.25" x 2" marine electronic adapter for fishfinders depthfinders and more; RAM® Mounts ball and socket technology allows for near-infinite adjustability

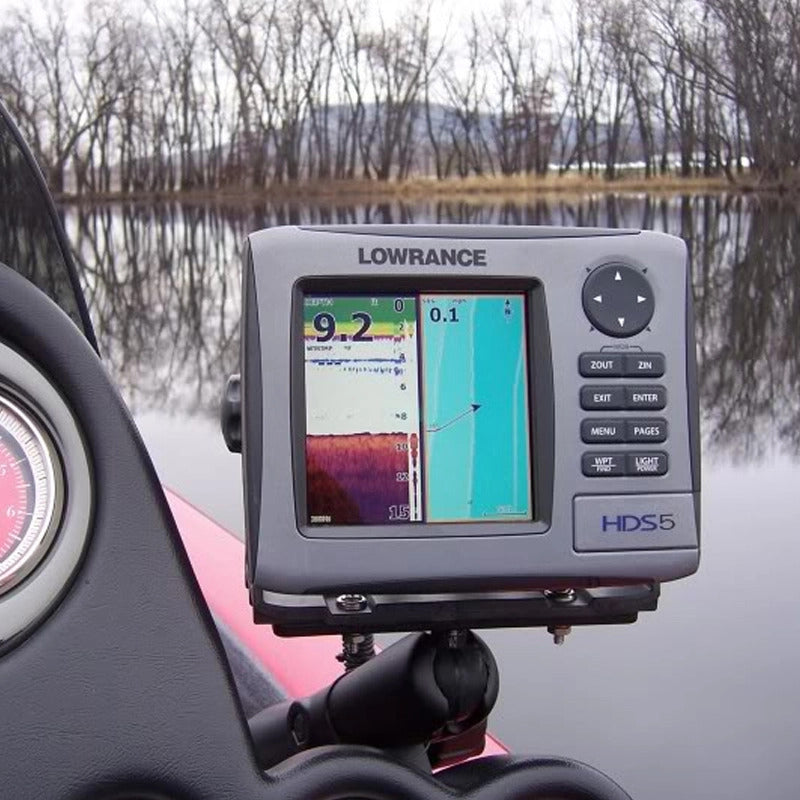

• Compatible with select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

OVERVIEW

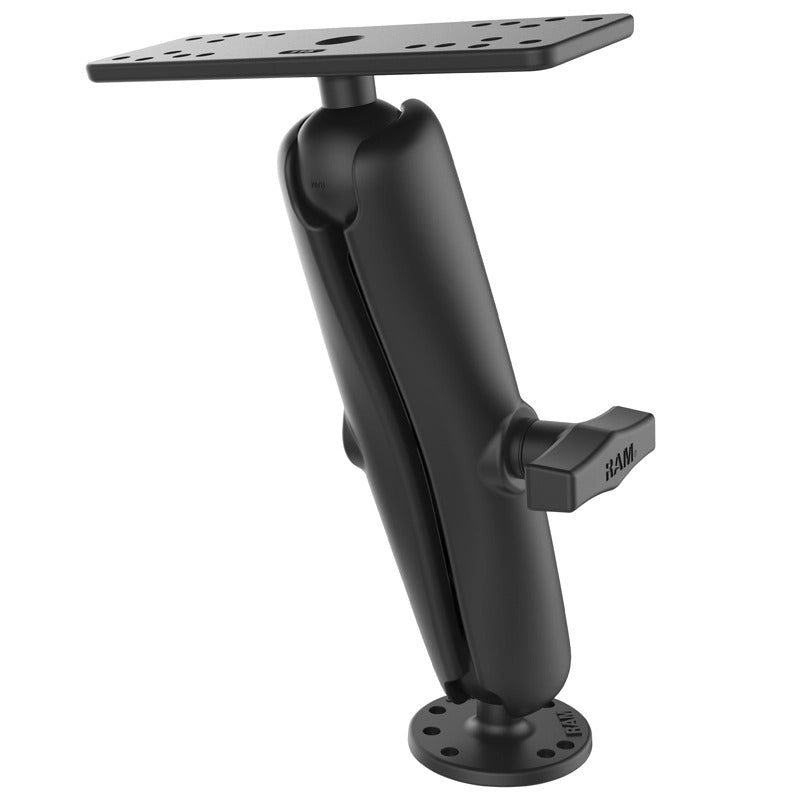

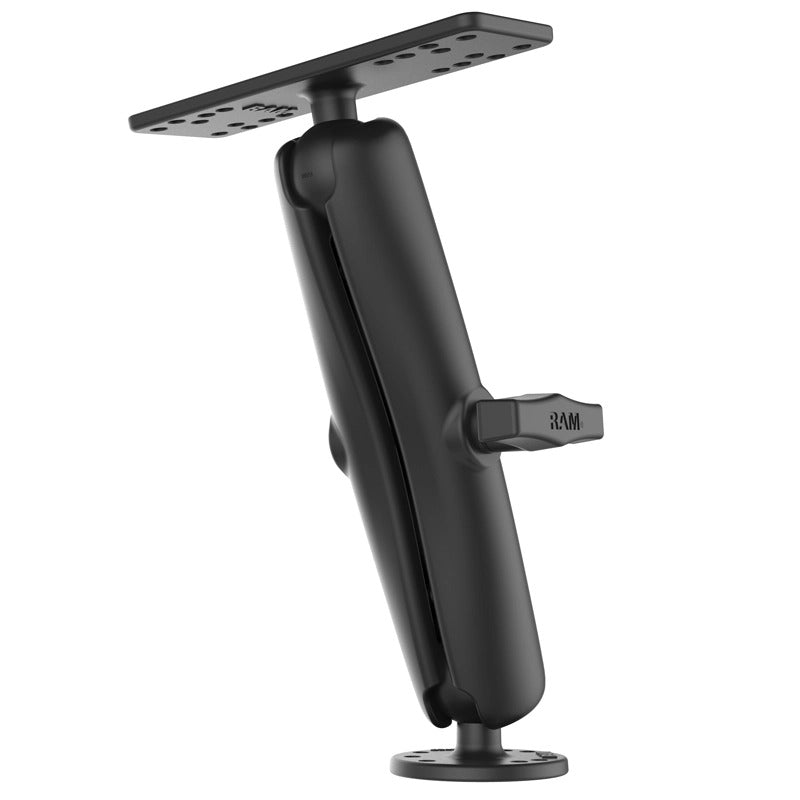

The RAM-111U-D consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, LONG LENGTH double socket arm and 6.25" x 2" rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

PRODUCT DIMENSIONS

Overall Height: 10.85"

SOCKET-TO-SOCKET LENGTH

8"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

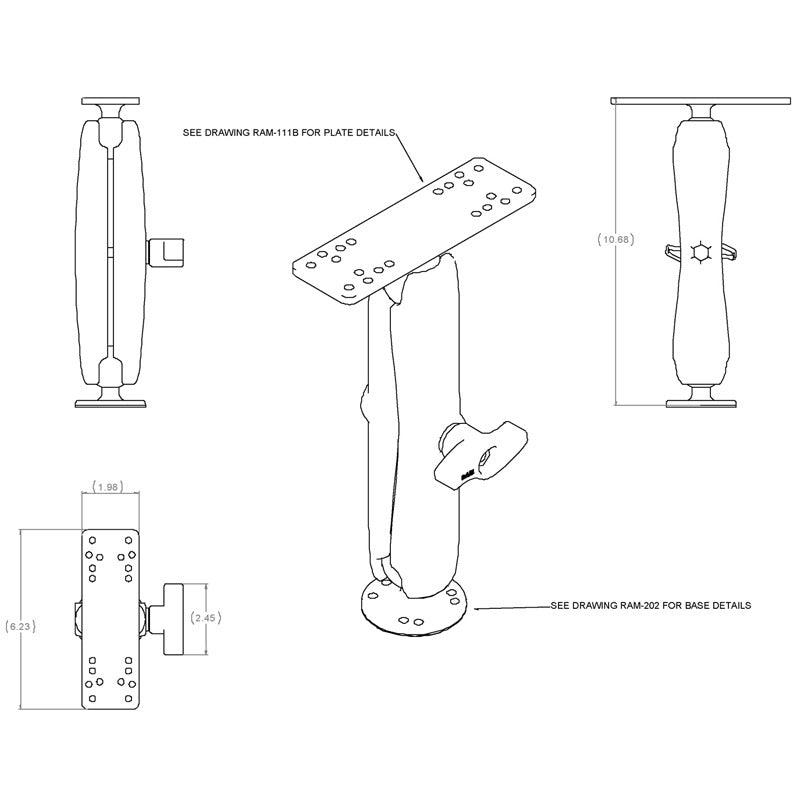

See Drawing

PLATE SIZE

Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum
