RAM Mounts

$129.00

In stock

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-111U Categories , , ,
Overview

Overview

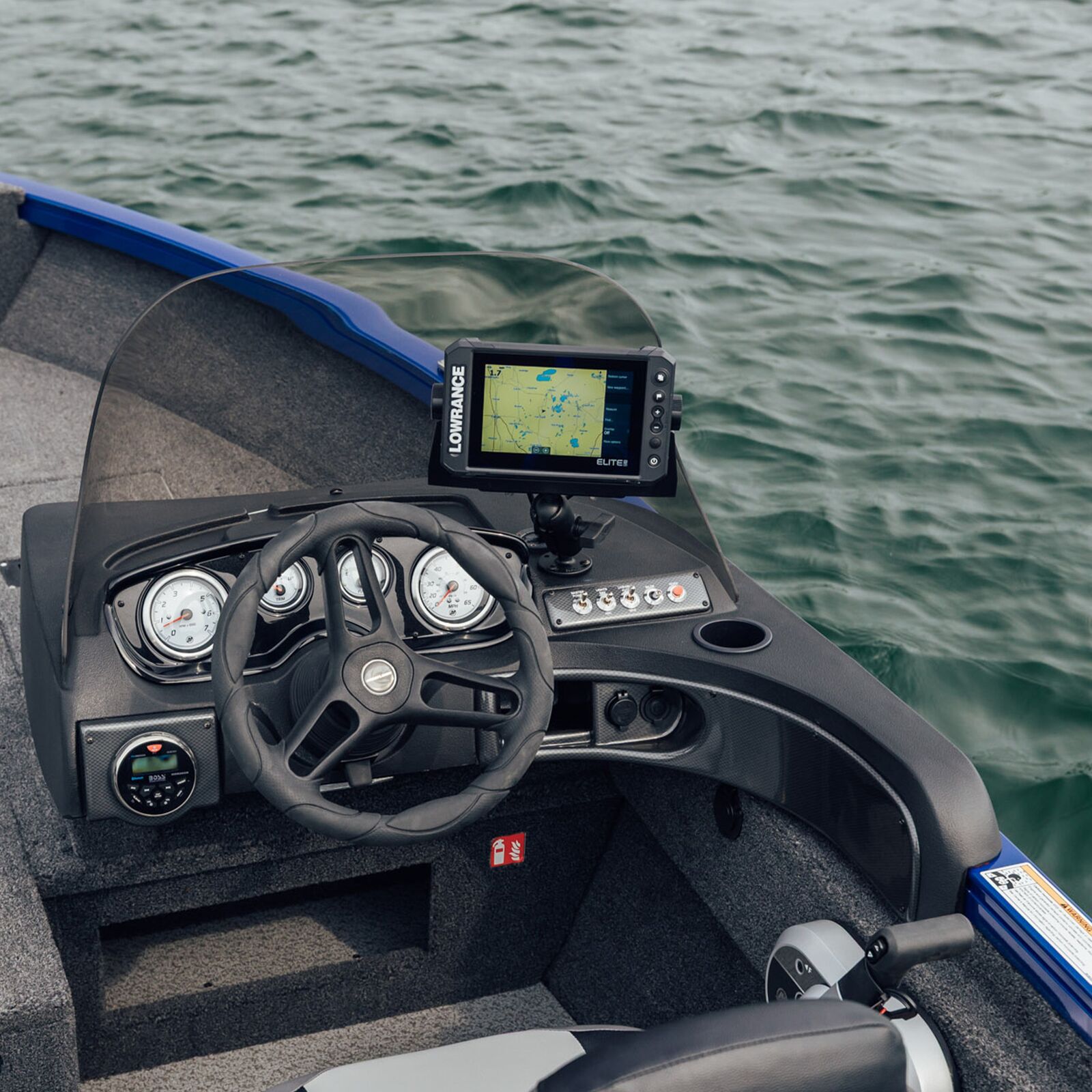

The RAM® Drill-Down Marine Electronic Mount (RAM-111U) is a rugged, fully adjustable mounting solution designed for reliable performance on the water. Constructed from powder-coated, marine-grade aluminum, this system includes a C size double socket arm, a 2.5" diameter round base, and a 6.25" x 2" rectangular adapter plate for secure device mounting. The rectangular adapter features multiple pre-drilled hole patterns, making it compatible with a wide range of marine electronics and mounting configurations, including fish finders, marine GPS units, CB and ham radios, gimbal brackets, and more.

Features

  • Complete flat surface, drill-down mounting solution with an overall height of 7.35"

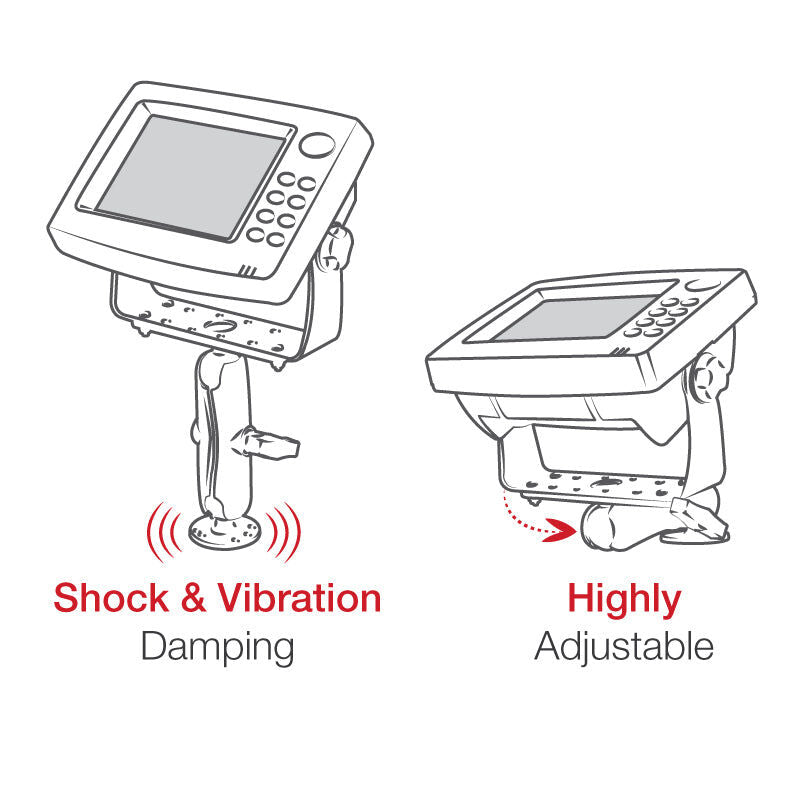

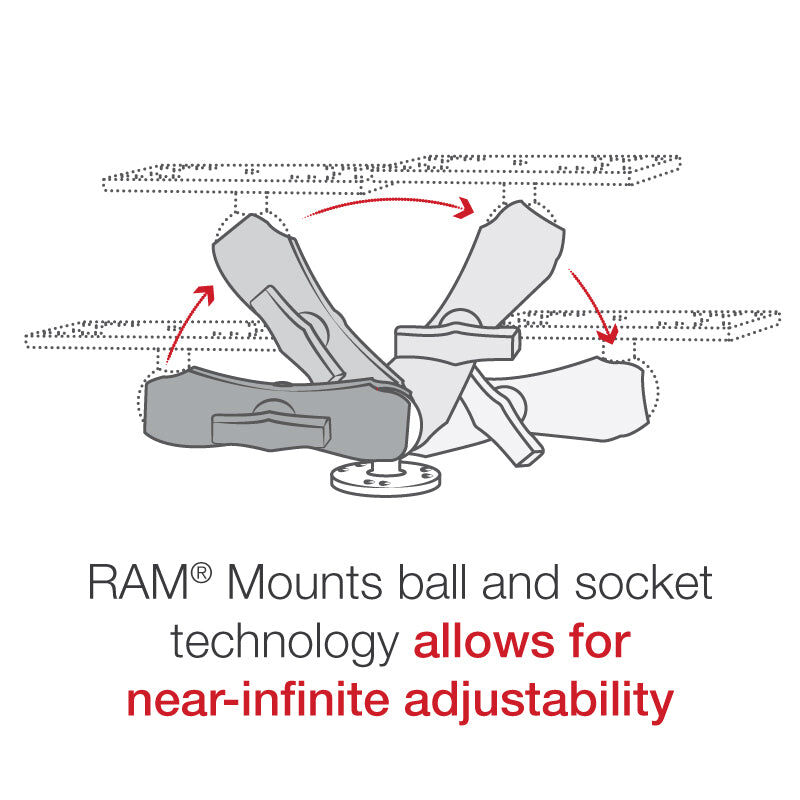

  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

Specs

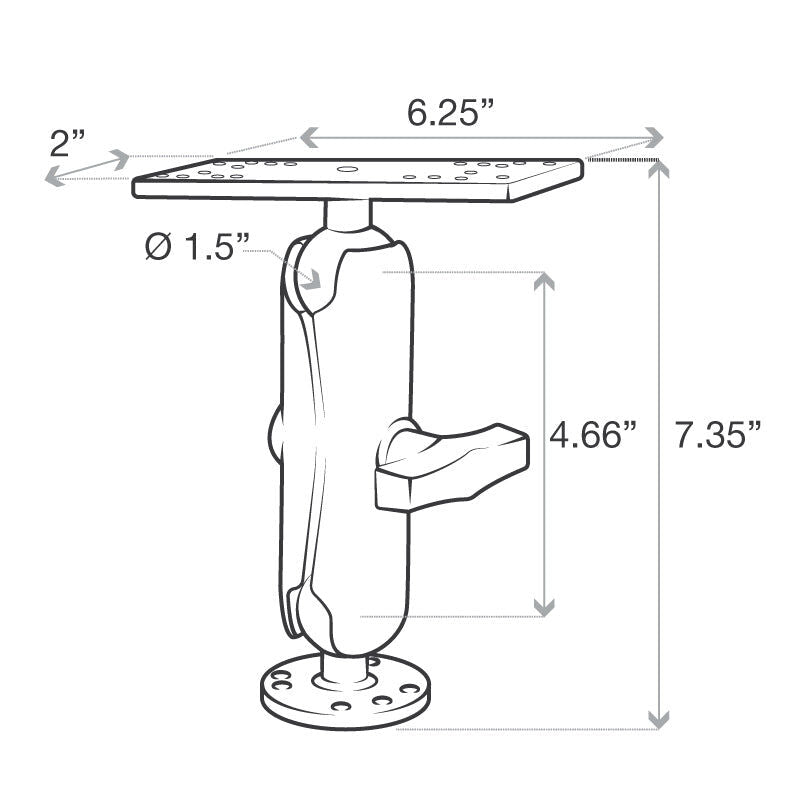

Product Dimensions

Overall Height: 7.35"

Socket To Socket Length

4.66"

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

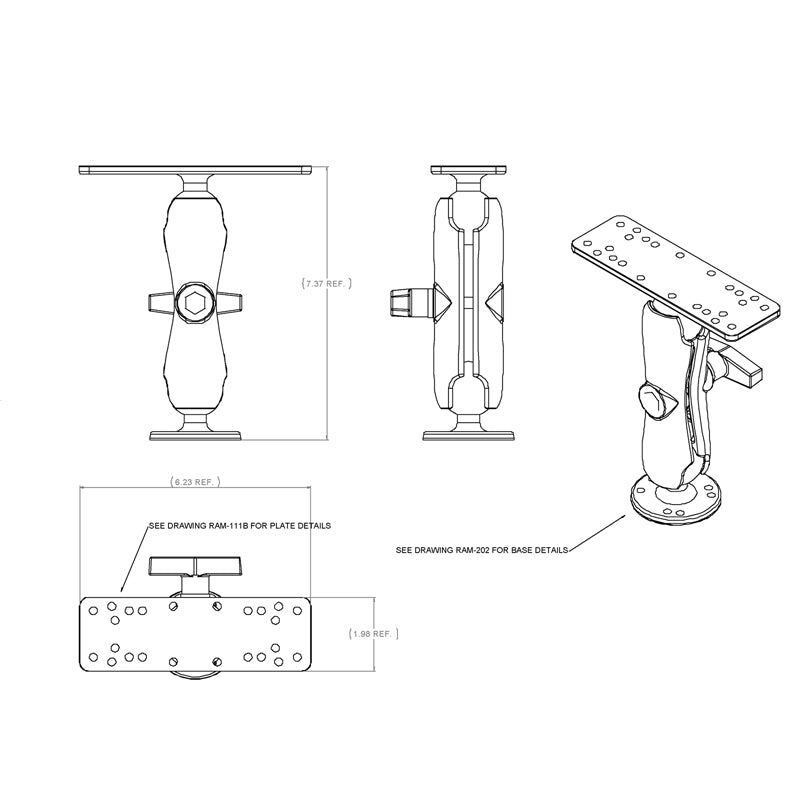

See Drawing

Plate Size

Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter

Ball Size

C Size (1.5")

Weight Capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials

Marine-grade aluminum

Packaging Type

Poly Bag

Weight

1.34 lb

Additional Information

The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
