RAM ROD Bulkhead/Flat Surface Base
RAM ROD Bulkhead/Flat Surface Base - Image 2
RAM ROD Bulkhead/Flat Surface Base - Image 3

RAM ROD Bulkhead/Flat Surface Base

RAM Mounts

$25.00

In stock

Mounting base: screws or bolts down.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-114BMPU Categories , ,
Overview

Overview

The combination bulkhead/flat surface mounting base can be installed on a flat surface such as the deck or on a vertical surface. This mounting base features a locking feature which requires the release of a plunger to remove the rod holder. Compatible with RAM post and spline rod holders and RAM wedge mount ball adapters.

Specs

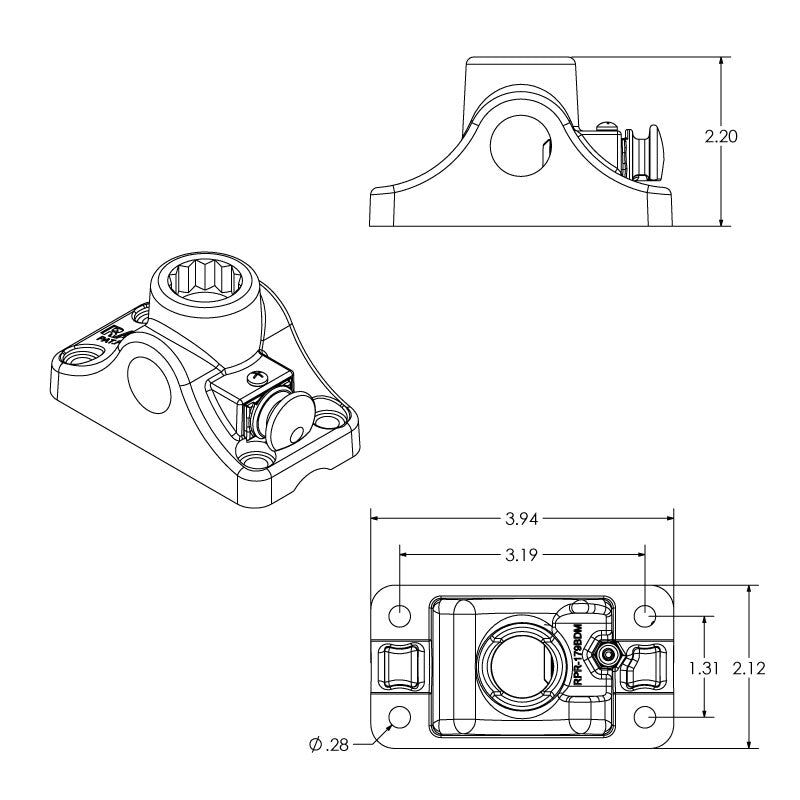

Hole Pattern

1.3" x 3.19"

Materials

High strength composite

Packaging Type

Poly Bag

Weight

0.3 lb
