RAM ROD Flush Spline Post Base
$20.00
In stock
Mounting base: screws or bolts down.
RAM ball size guide
The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.
| Size | Ball diameter | Holds up to | Best for |
|---|---|---|---|
| A | 9/16" (14 mm) | 0.45 kg | Small cameras, action cams, remotes |
| B | 1" (25 mm) | 0.9 kg | Phones, GPS units, small tablets. The most common size. |
| C | 1.5" (38 mm) | 1.8 kg | Tablets, small monitors, rugged devices |
| D | 2.25" (57 mm) | 2.7 kg | Large displays and laptops |
| E | 3.38" (86 mm) | 6.8 kg | Heavy monitors and equipment |
Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.
Overview
The RAM ROD® Flush Spline Post Base (RAM-114FMU) installs directly into a vessel’s gunwale to create a clean, low-profile rod mounting location. Designed to fit into a 1.4" diameter hole, the spline post base is secured by drilling down the four corners for a stable, permanent installation. The center socket is compatible with RAM ROD® and RAM® Tube™ rod holders featuring a spline post. An integrated rubber cap seals the socket when the rod holder is removed, helping prevent water from pooling and keeping your deck clean and dry.
Features
- Compatible with RAM ROD® and RAM® Tube™ rod holders featuring a spline post
- Requires a 1.4" diameter hole to insert socket for flush mounting
- Made of high-strength composite durability and reliability in the most demanding environments
- Backed by a lifetime warranty

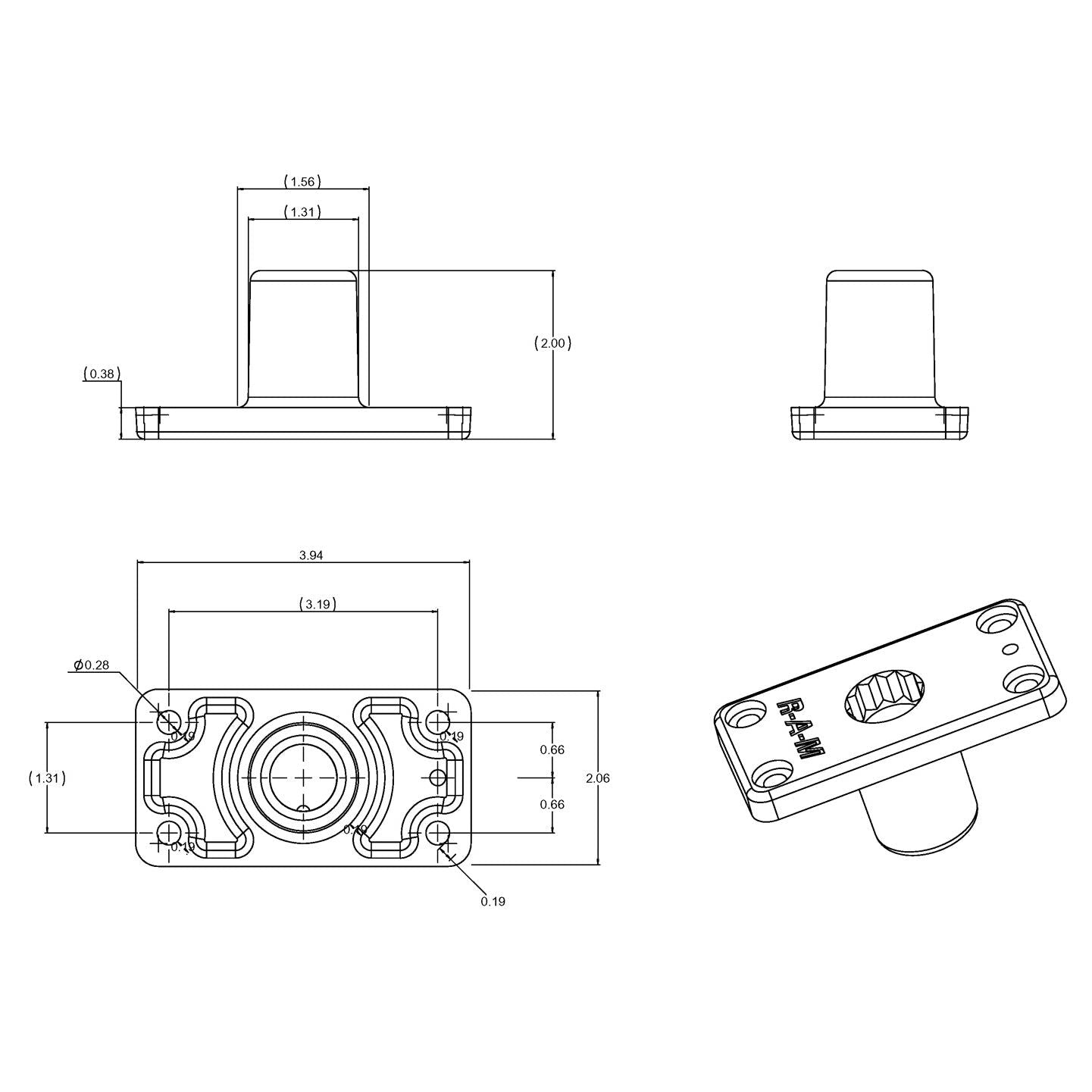

Hole Pattern
1.3" x 3.19"
Materials
High strength composite
Packaging Type
Poly Bag
Weight
0.21 lb
