RAM® Large Marine Electronics Mount

RAM® Large Marine Electronics Mount

OVERVIEW

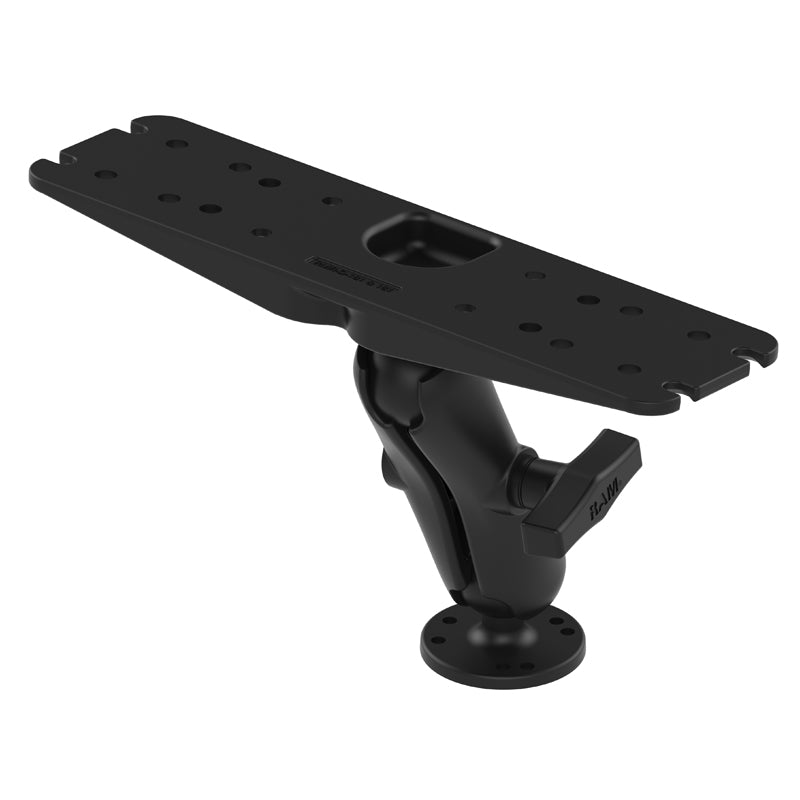

The RAM-137U, powder coated marine grade aluminum mount, consists of a double socket arm mount, one 2.5" diameter round base with 1.5" rubber ball and flat 11" x 3" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

HARDWARE INCLUDED

(4) .312" x .187" Shoulder Washers

SOCKET TO SOCKET LENGTH

4.66"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" DiameterSee Drawing

PLATE SIZE

Top Plate: 3" x 11"Bottom Plate: 2.5" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.95 lb
