RAM® Handlebar U-Bolt Double Ball Mount with Round Plate – C Size Short

RAM® Handlebar U-Bolt Double Ball Mount with Round Plate – C Size Short

OVERVIEW

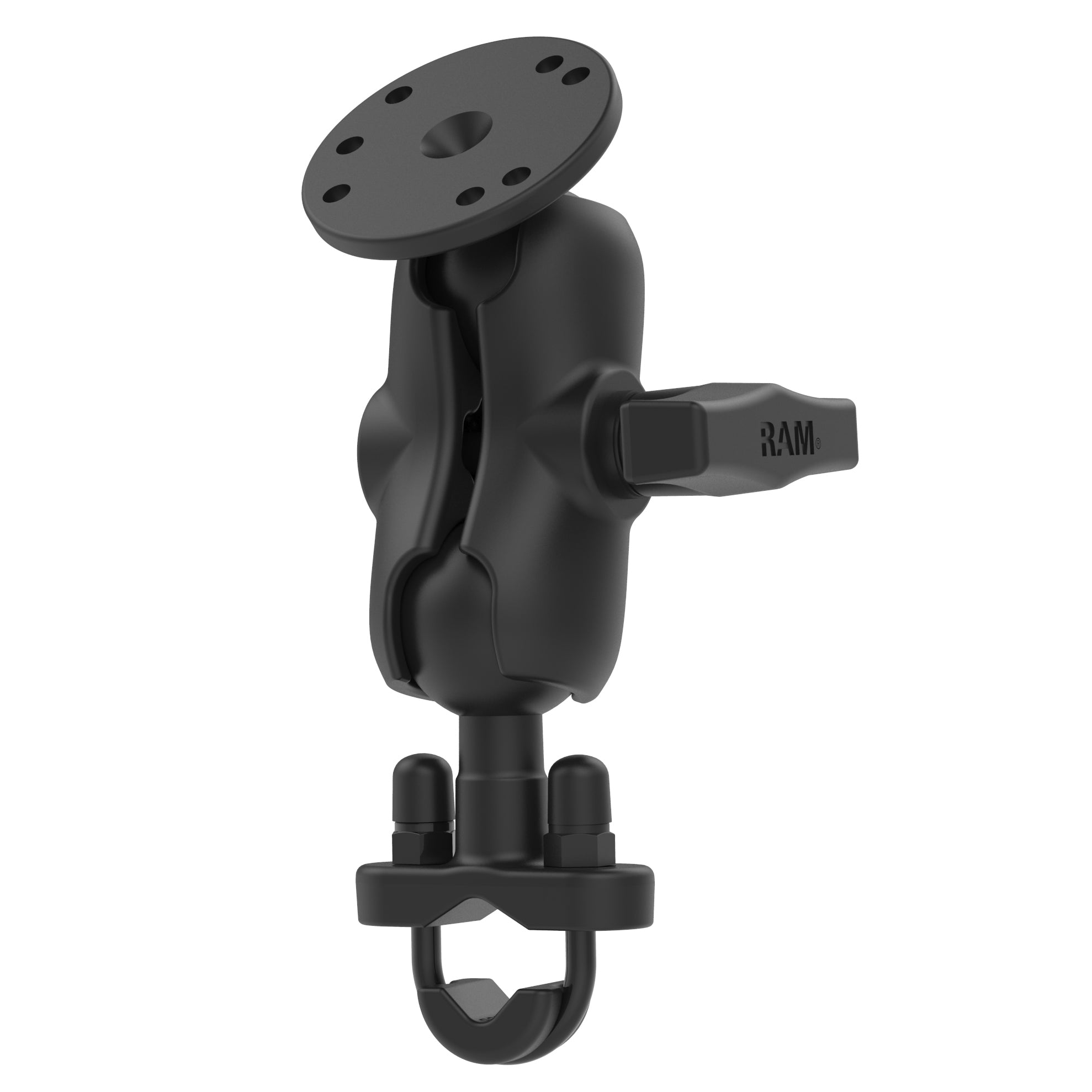

The RAM® Handlebar U-Bolt Double Ball Mount with Round Plate consists of a C size (1.5") zinc coated u-bolt base, short C size double socket arm and C size RAM® round base adapter for attaching a tablet holder. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM® Mount and/or third party tablet holders. Included in this package is hardware that will accommodate handlebars and rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM® C size 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. This mount is ideal for securely mounting a tablet to a motorcycle or ATV/Side By Side vehicle.

HARDWARE INCLUDED

(1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.02 lb
