RAM® Tab-Tite™ Large Tablet Mount with RAM® Twist-Lock™ Suction Cup

RAM® Tab-Tite™ Large Tablet Mount with RAM® Twist-Lock™ Suction Cup

OVERVIEW

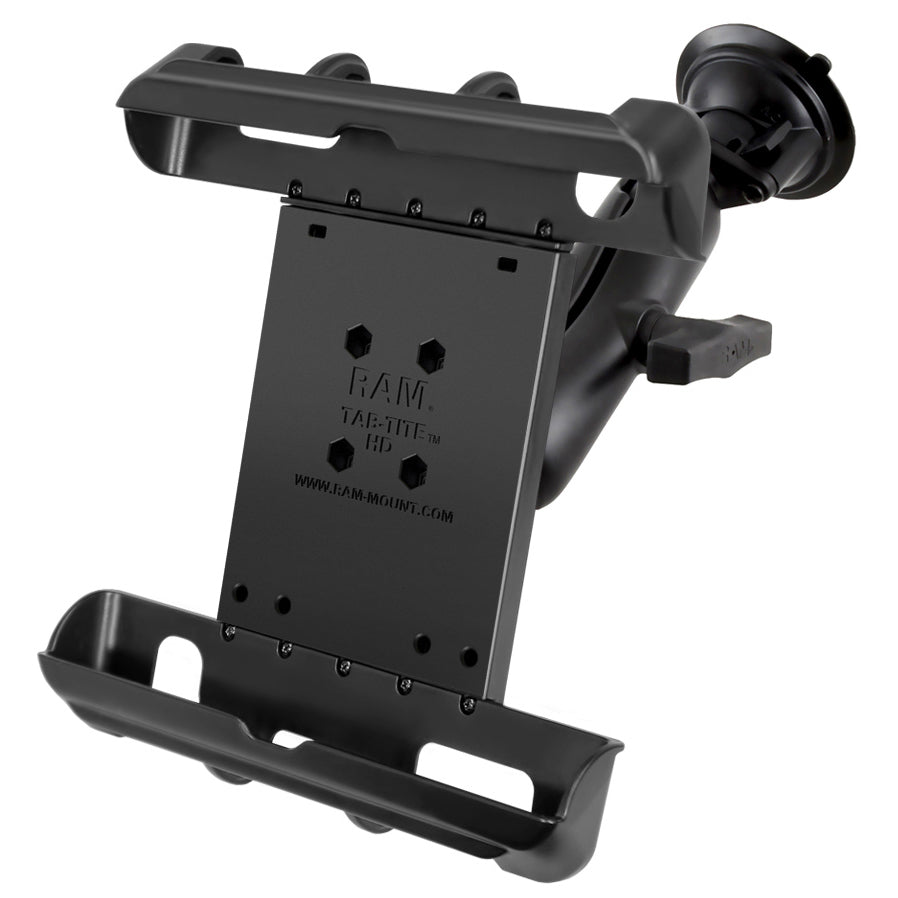

The RAM-B-166-TAB17U consists of a 3.3" diameter suction cup twist lock base with 1.5" dia. ball, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The spring loaded Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware

HOLDER DIMENSIONS

Height Range: 9.5" - 11.75"Width Range: 6.375" - 8.25"Depth Range: .13" - 1.1"

SUCTION SIZE

3.3" Diameter

SOCKET TO SOCKET LENGTH

4.66"

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.48 lb
