RAM Drill-Down Double Ball Mount for Humminbird Helix 5 – Medium

RAM Drill-Down Double Ball Mount for Humminbird Helix 5 – Medium

OVERVIEW

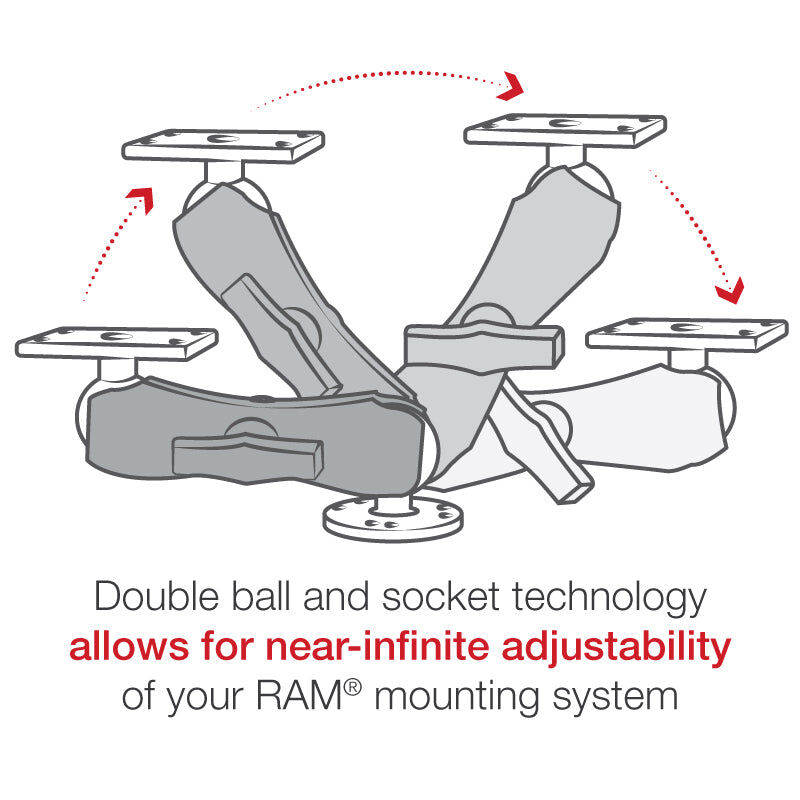

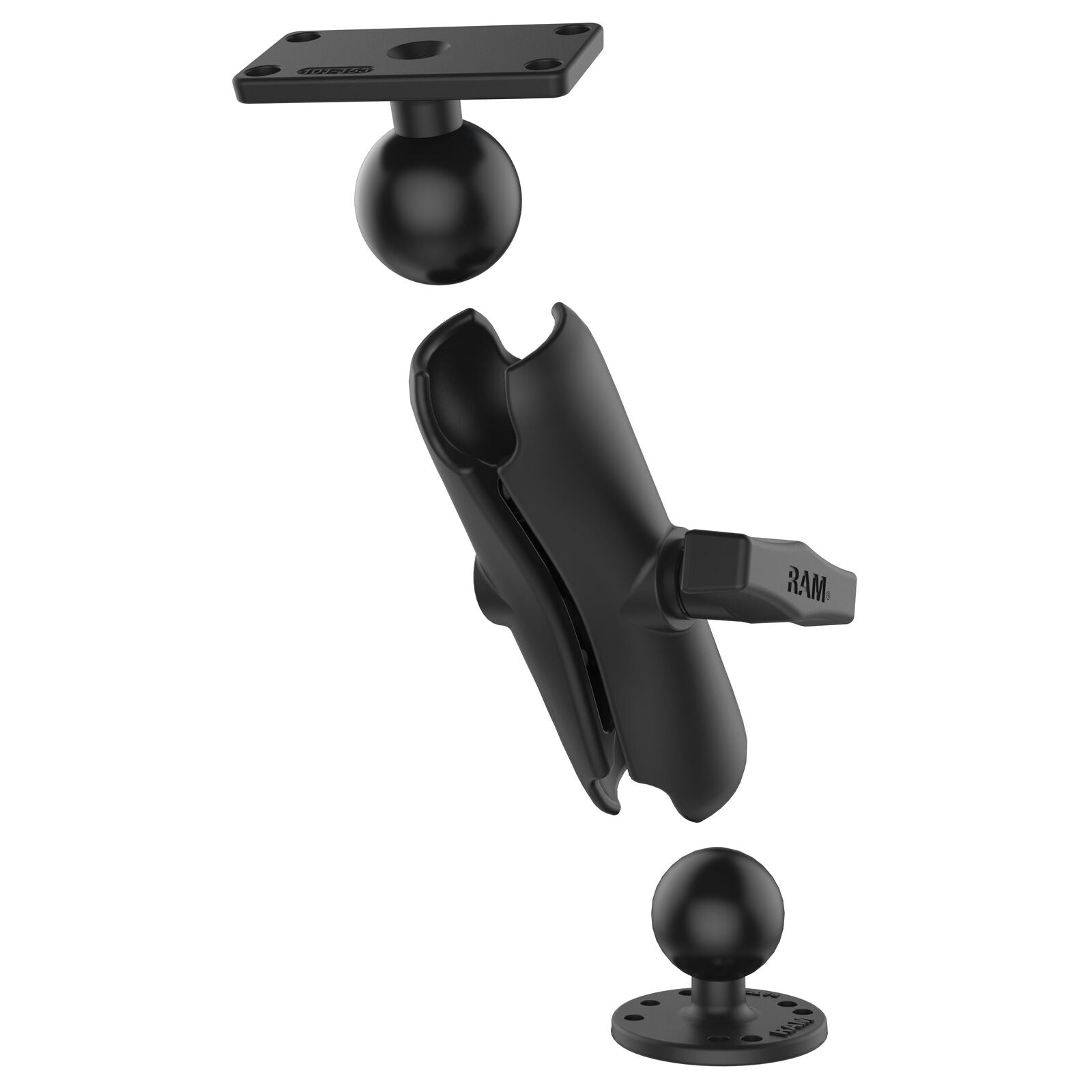

The RAM® Drill-Down Double Ball Mount for Humminbird Helix 5 (RAM-202-153-202U) is a rugged, adjustable mounting solution designed for reliable performance on the water. Constructed from powder-coated, marine-grade aluminum, this mount includes a C size medium-length double socket arm, a 2.5" round base with the universal AMPS hole pattern for drill-down installation, and a 1.5" x 3" rectangular ball adapter for the Humminbird Helix 5. Its overmolded rubber ball helps absorb shock and vibration for a smoother, more secure experience.

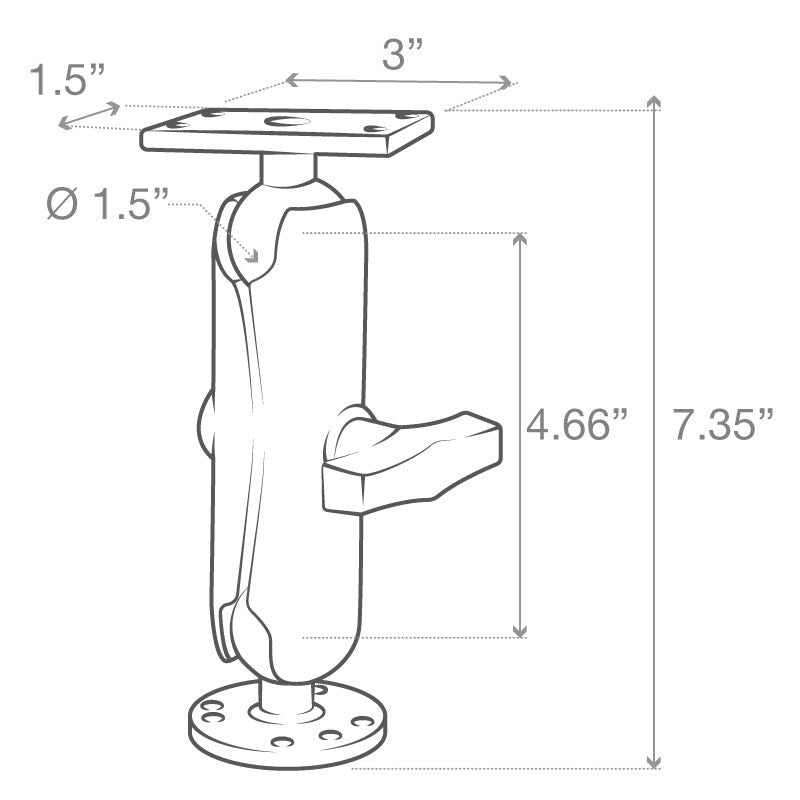

PRODUCT DIMENSIONS

Overall Height: 7.35"

SOCKET TO SOCKET LENGTH

4.66"

HOLE PATTERN

Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" DiameterRectangular Plate: 1" x 2.5"

PLATE SIZE

Top Plate: 1.5" x 3"Bottom Plate: 2.5" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.15 lb
