RAM® Double Ball Mount with 3″ Square Post Clamp Base and 1/4″-20 Stud

RAM® Double Ball Mount with 3″ Square Post Clamp Base and 1/4″-20 Stud

OVERVIEW

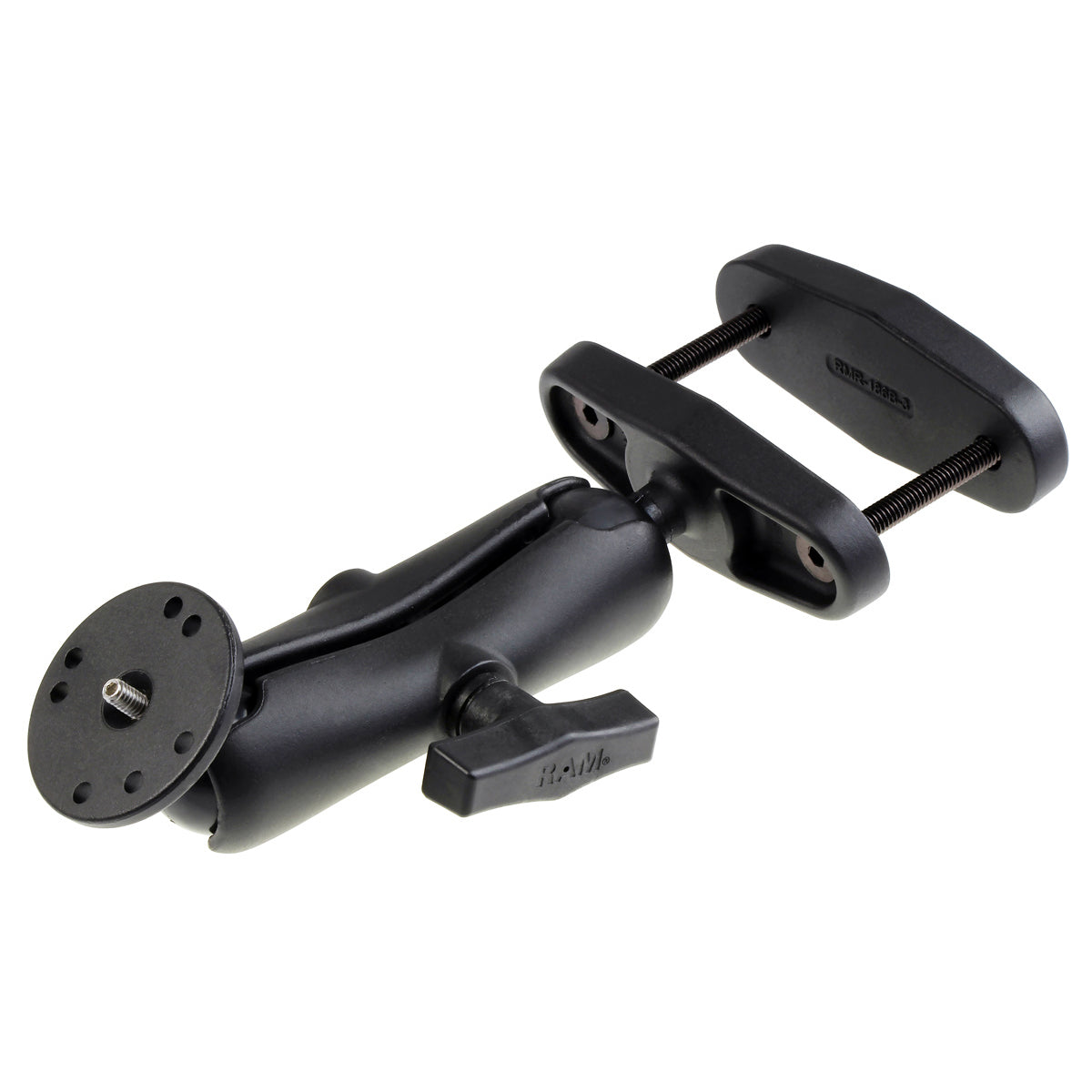

The RAM-202A-247-3U consists of a medium double socket arm, a 3" Square Post Clamp Base, and a 2.5" diameter round plate with AMPS hole pattern and a 1/4"-20 threaded stud.

HARDWARE INCLUDED

(2) 5/16"-18 x 3" Machine Screws(2) 5/16"-18 Nylock Nuts

PRODUCT DIMENSIONS

Overall Height: 7.85"

CLAMP RANGE

3" max width

SOCKET TO SOCKET LENGTH

4.66"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.22 lb
