RAM Ball Adapter with Hardware for Raymarine Dragonfly – C Size

RAM Mounts

$43.00

In stock

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-202U-RYM1 Categories , ,
Overview

Overview

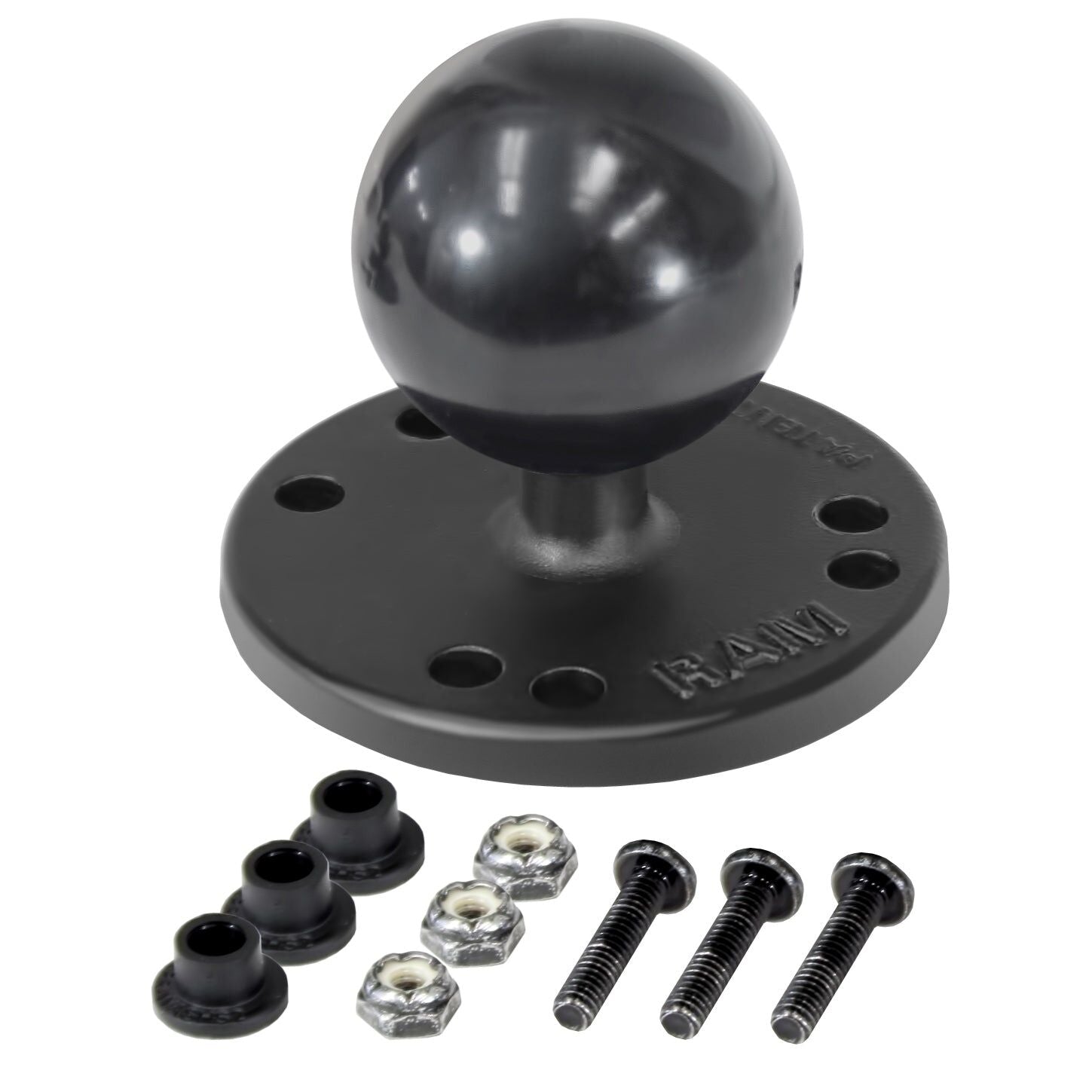

The RAM-202U-RYM1 consists of a 1.5" diameter rubber ball connected to a flat 2.5" diameter base. The base has pre-drilled holes, including the universal AMPs hole pattern. Included are (3 quantity) (#8-32 x 3/4" PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-202U-RYM1 to the bottom of all Raymarine® Dragonfly™ Sonar/GPS devices.

Specs

Hardware Included

(3) #8-32 x 3/4" Machine Screws
(3) #8-32 Nylock Nuts
(3) .312" x .187" Shoulder Washers

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Ball Size

C Size (1.5")

Weight Capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials

Marine-grade aluminum

Packaging Type

Poly Bag

Weight

0.25 lb
