RAM® U-Bolt Double Ball Mount with 1/4″-20 Threaded Stud – C Size Long

RAM® U-Bolt Double Ball Mount with 1/4″-20 Threaded Stud – C Size Long

OVERVIEW

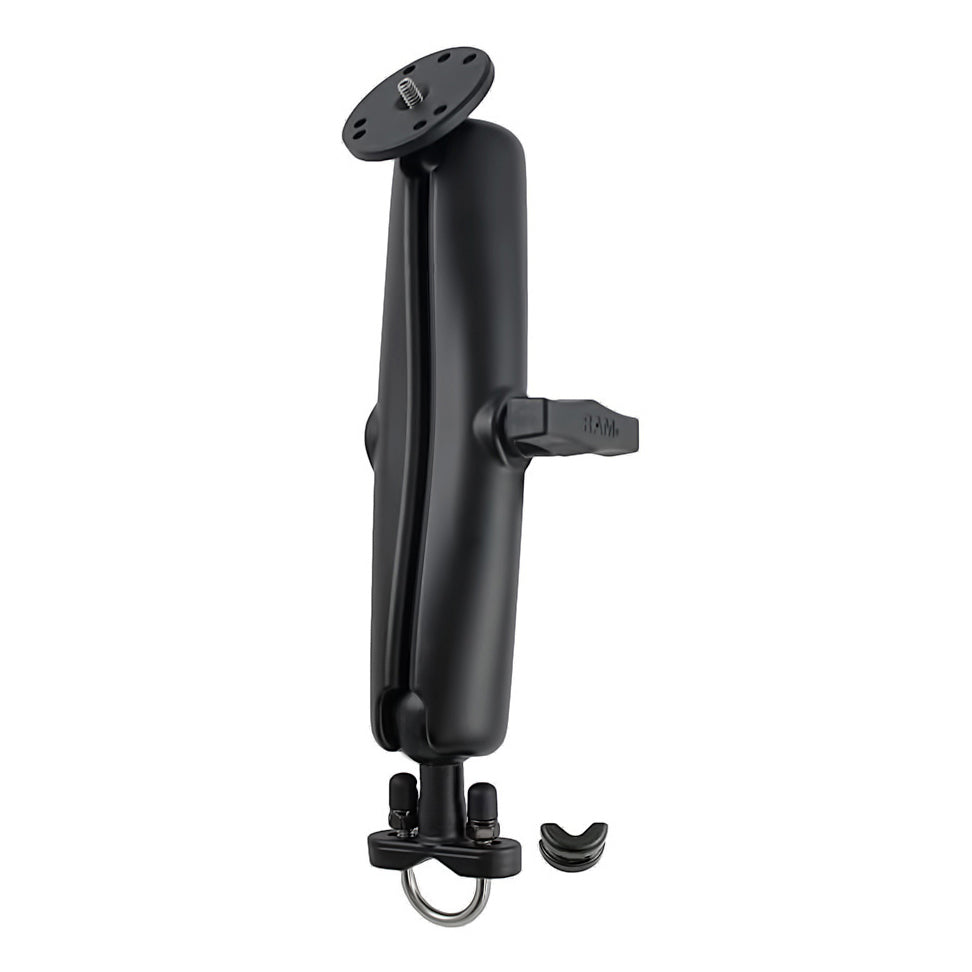

The RAM-231-D-202AU consists of a U bolt base for rails between .5" and 1" in diameter, a long length C-size double socket arm, and a 2.5" round plate with universal AMPS hole pattern and a removable 1/4"-20 threaded post in the center.

HARDWARE INCLUDED

(1) 1/4"-20 U-Bolt for .5" - 1" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1" diameter

SOCKET TO SOCKET LENGTH

8"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

2.11 lb
