RAM Rail Adapter Kit for Round Bases

RAM Rail Adapter Kit for Round Bases

OVERVIEW

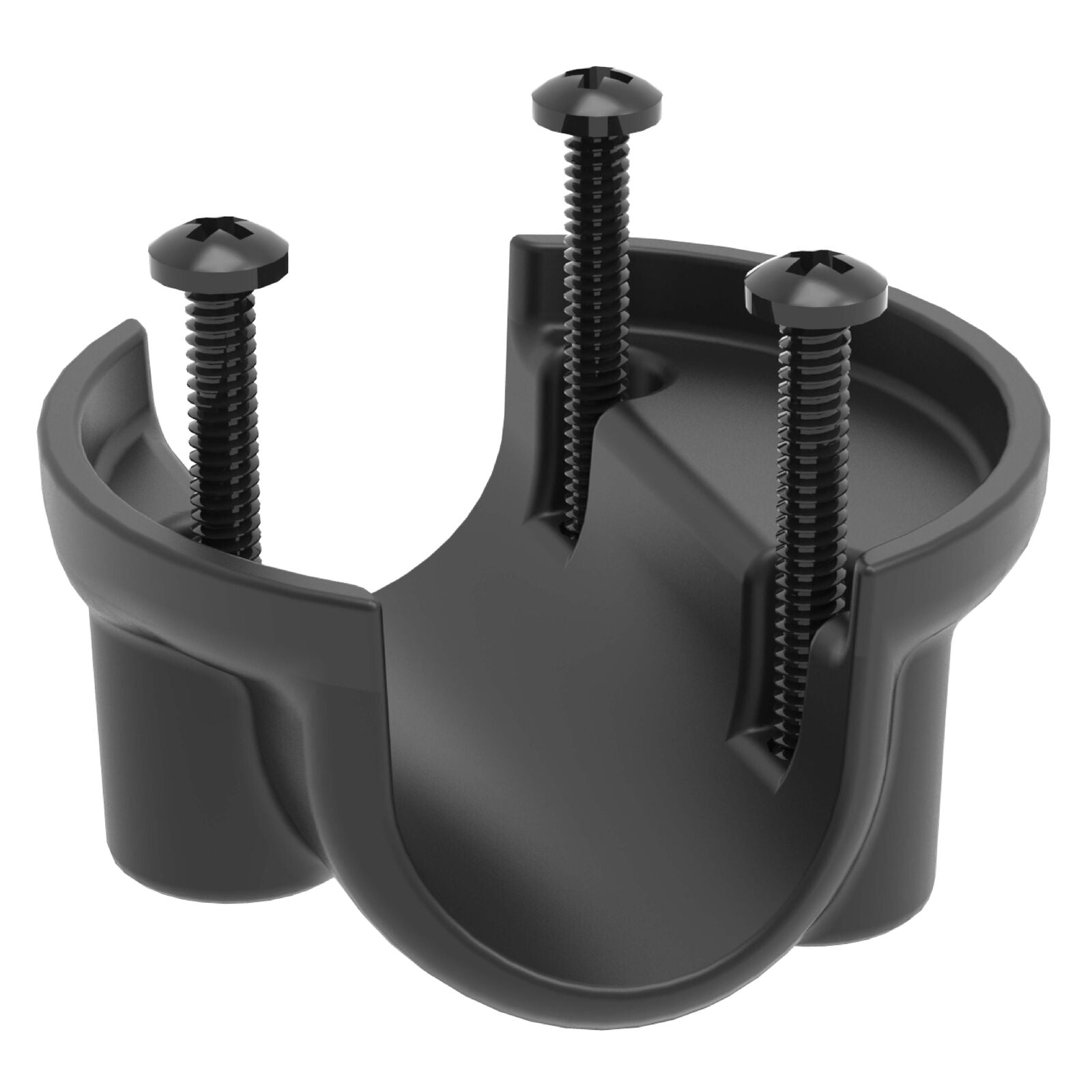

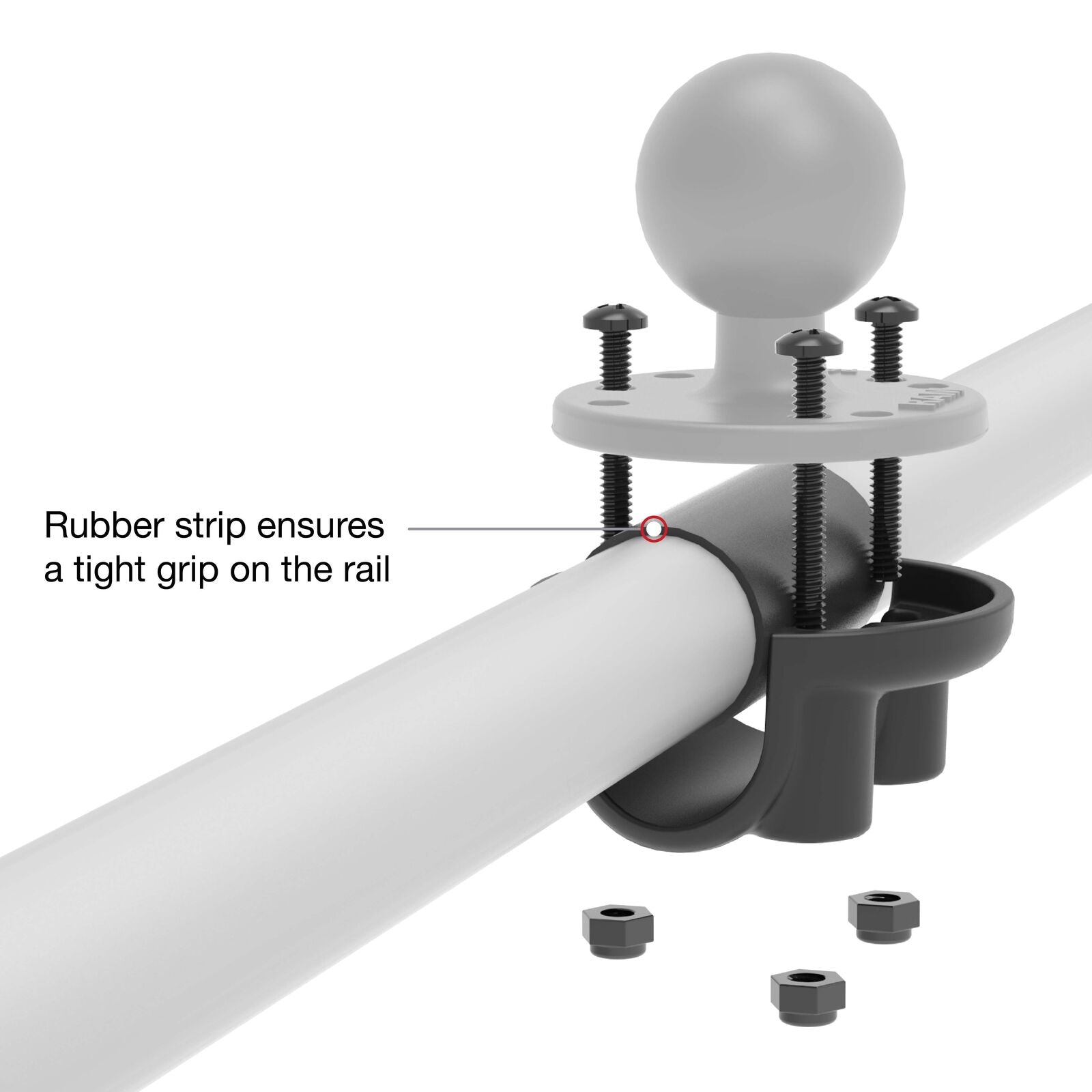

The RAM® Rail Adapter Kit for Round Bases (RAM-233U) is designed to secure a standard RAM® round 2.5-inch ball base to rails with a 0.75" - 1" diameter. It comes with a rubber strip that ensures a tight grip between the adapter and the rail as well as the hardware necessary for installation. This adapter is made of marine grade aluminum for rugged reliability in the most extreme conditions.

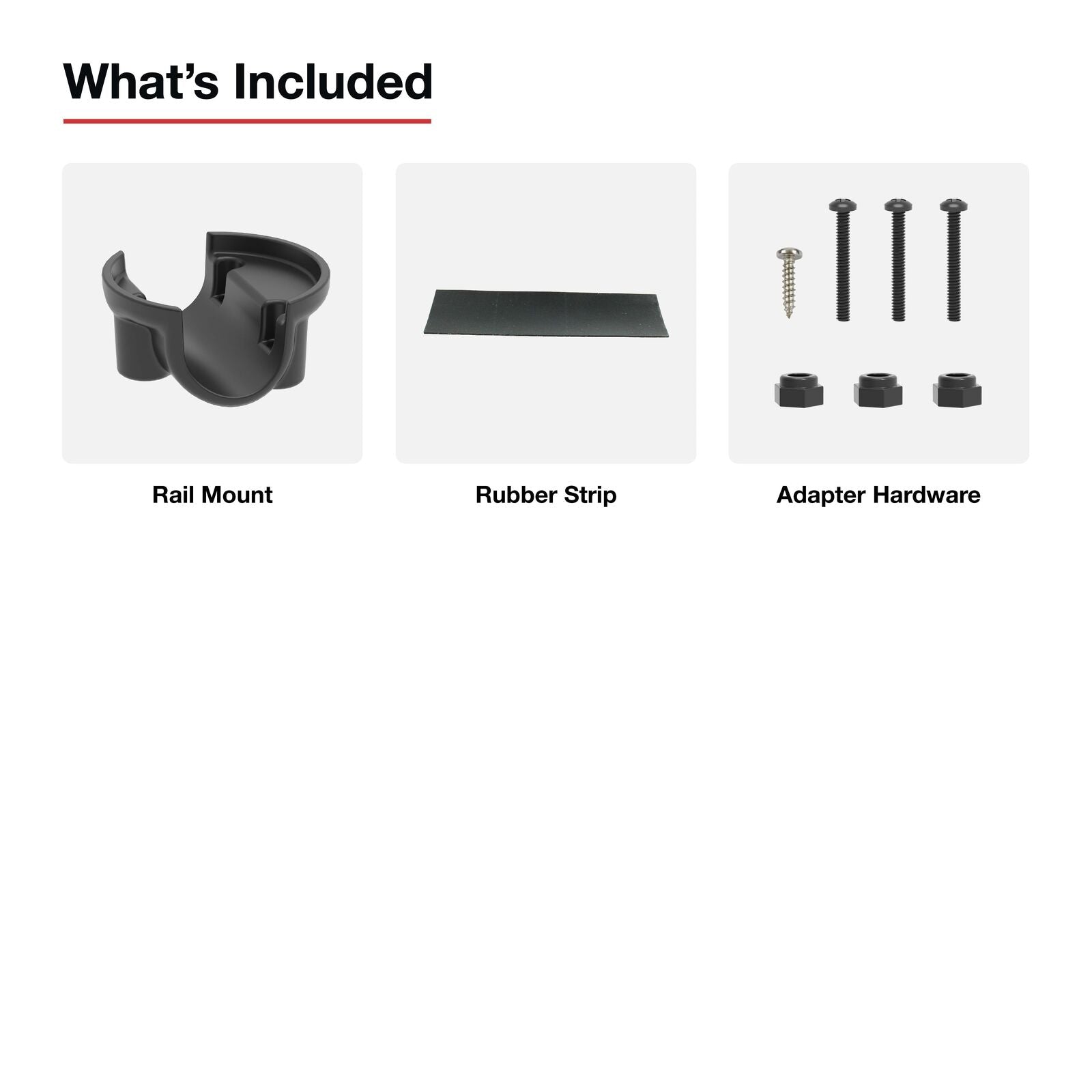

HARDWARE INCLUDED

(3) #10-24 x 1.5" Machine Screws(3) #10-24 Nylock Nuts(1) #8 x 3/4" Sheet Metal Screw(1) 2" x 7.5" Rubber Adhesive Strip

CLAMP RANGE

.75" - 1" diameter

HOLE PATTERN

3-Hole 120-Degree: 1.812" Diameter

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.27 lb
