RAM Universal Wheelchair Ball Base – C Size

RAM Universal Wheelchair Ball Base – C Size

OVERVIEW

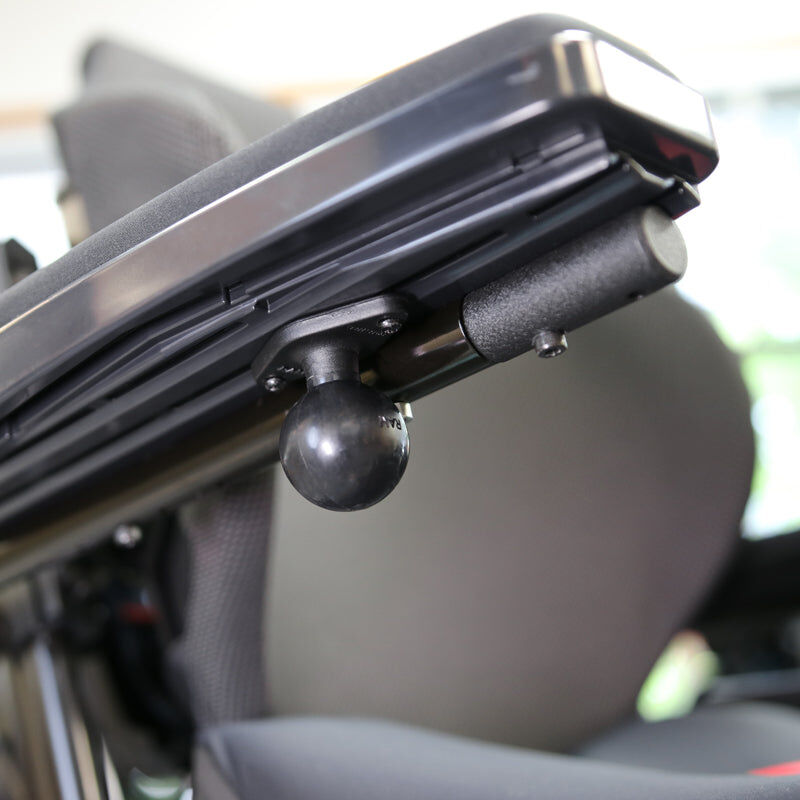

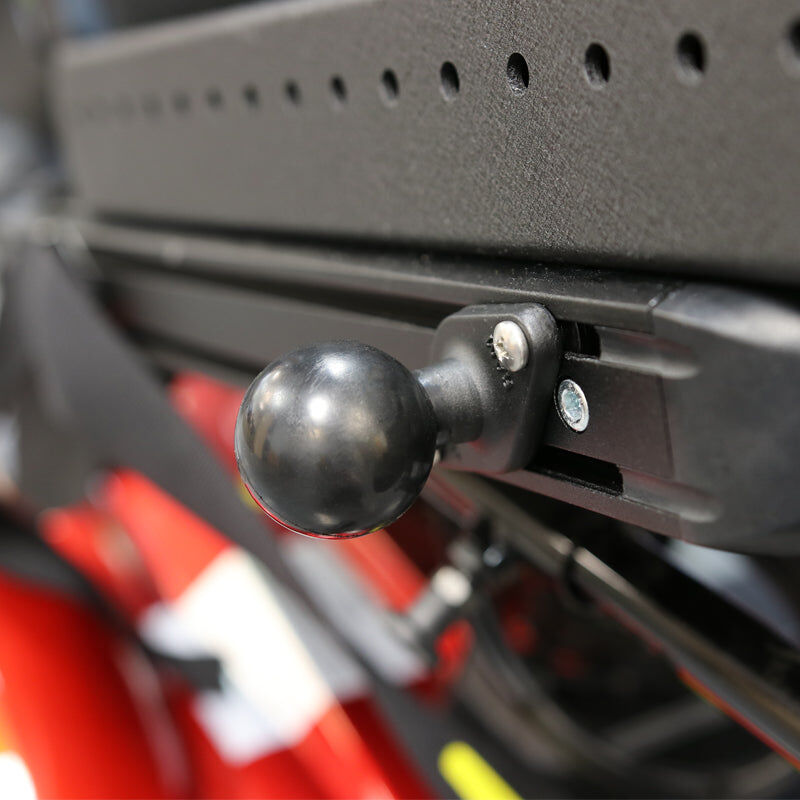

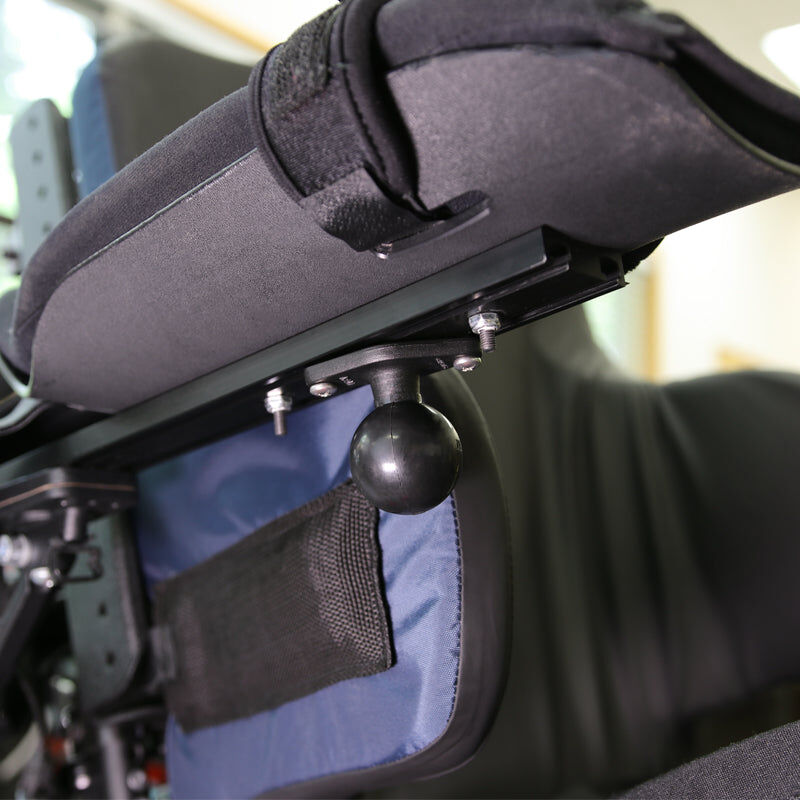

This RAM® ball base features a universal hardware pack that accommodates the arm and seat tracks on most major wheelchair brands including Invacare, Permobil, and Quickie, as well as any other universal mounting point. Pair with a variety of compatible RAM® arms and extensions to build a custom mount to meet your specific needs.

HARDWARE INCLUDED

(2) #10-32 T-Nuts(2) #10-32 Flat Weld Nuts(2) #10-32 x 1/2" Machine Screws(2) M4 x 12mm Machine Screws(2)M4 x 20mm Machine Screws(2) M4 Stainless Steel Washers(2) M4 Nylock Nuts

T BOLT DIMENSIONS

Large: .48" x .95"Small: .375" x .593"

HOLE PATTERN

2-Hole AMPS 1.912"

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Retail Bag

WEIGHT

0.3 lb
