RAM® 3″ Square Post Clamp Mount with 75x75mm VESA Plate

RAM® 3″ Square Post Clamp Mount with 75x75mm VESA Plate

OVERVIEW

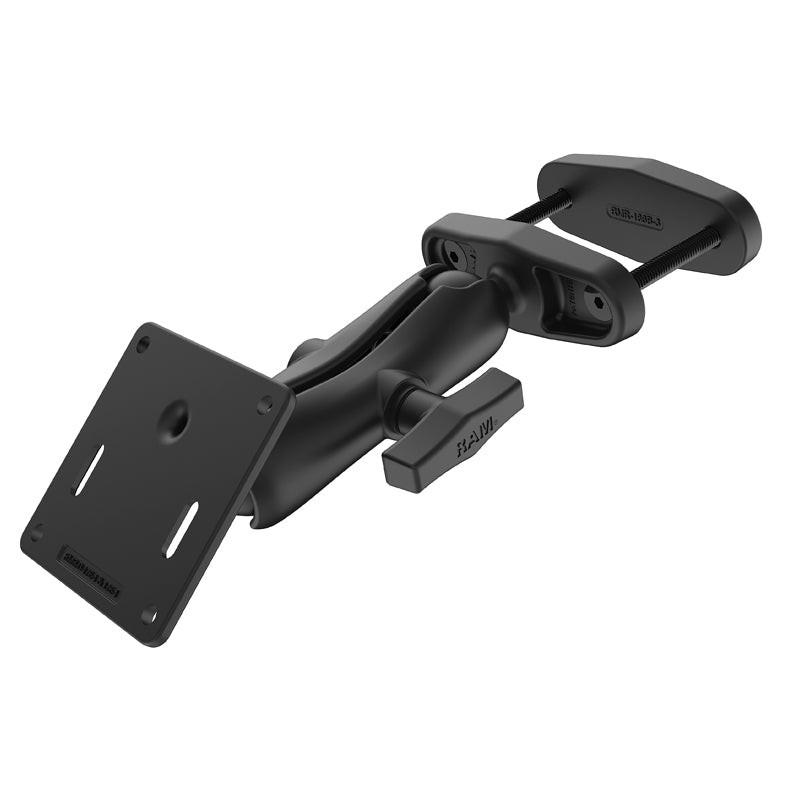

The RAM-2461-247U-3 consists of a 3" clamp base, double socket arm and 3.625" square base that contains a 75mm X 75mm VESA hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

HARDWARE INCLUDED

(2) 5/16"-18 x 3" Machine Screws(2) 5/16"-18 Nylock Nuts

CLAMP RANGE

3" max width

SOCKET TO SOCKET LENGTH

4.66"

HOLE PATTERN

75 x 75mm VESA

PLATE SIZE

3.625" x 3.625"

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

2.05 lb
