RAM Aluminum Track Ball Base with T-Bolt Attachment – C Size

RAM Aluminum Track Ball Base with T-Bolt Attachment – C Size

OVERVIEW

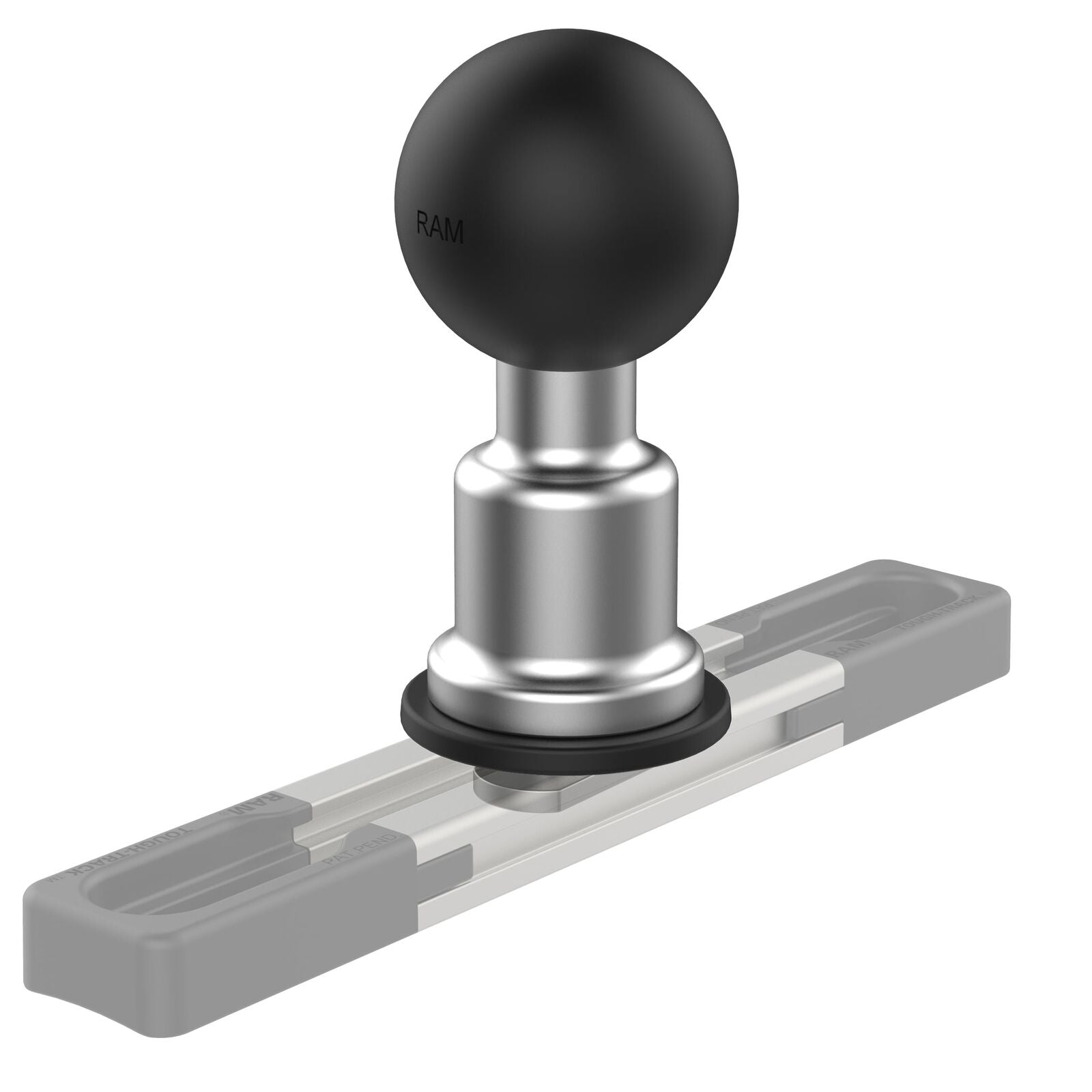

The RAM® Track Ball™ is made up of a C size 1.5" ball molded to a marine-grade aluminum base, a rubber friction washer and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the Track Ball™ into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball.

HARDWARE INCLUDED

(1) Friction Washer(1) 1/4"-20 x 7/8" T-Bolt

PRODUCT DIMENSIONS

Plate Diameter: 1.25"Thread Depth: .875"

T BOLT DIMENSIONS

.48" x .95"

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum Stainless steel

PACKAGING TYPE

Poly Bag

WEIGHT

0.26 lb
