RAM Double U-Bolt Rail Mount for Smaller Rails – B Size Medium

RAM Double U-Bolt Rail Mount for Smaller Rails – B Size Medium

OVERVIEW

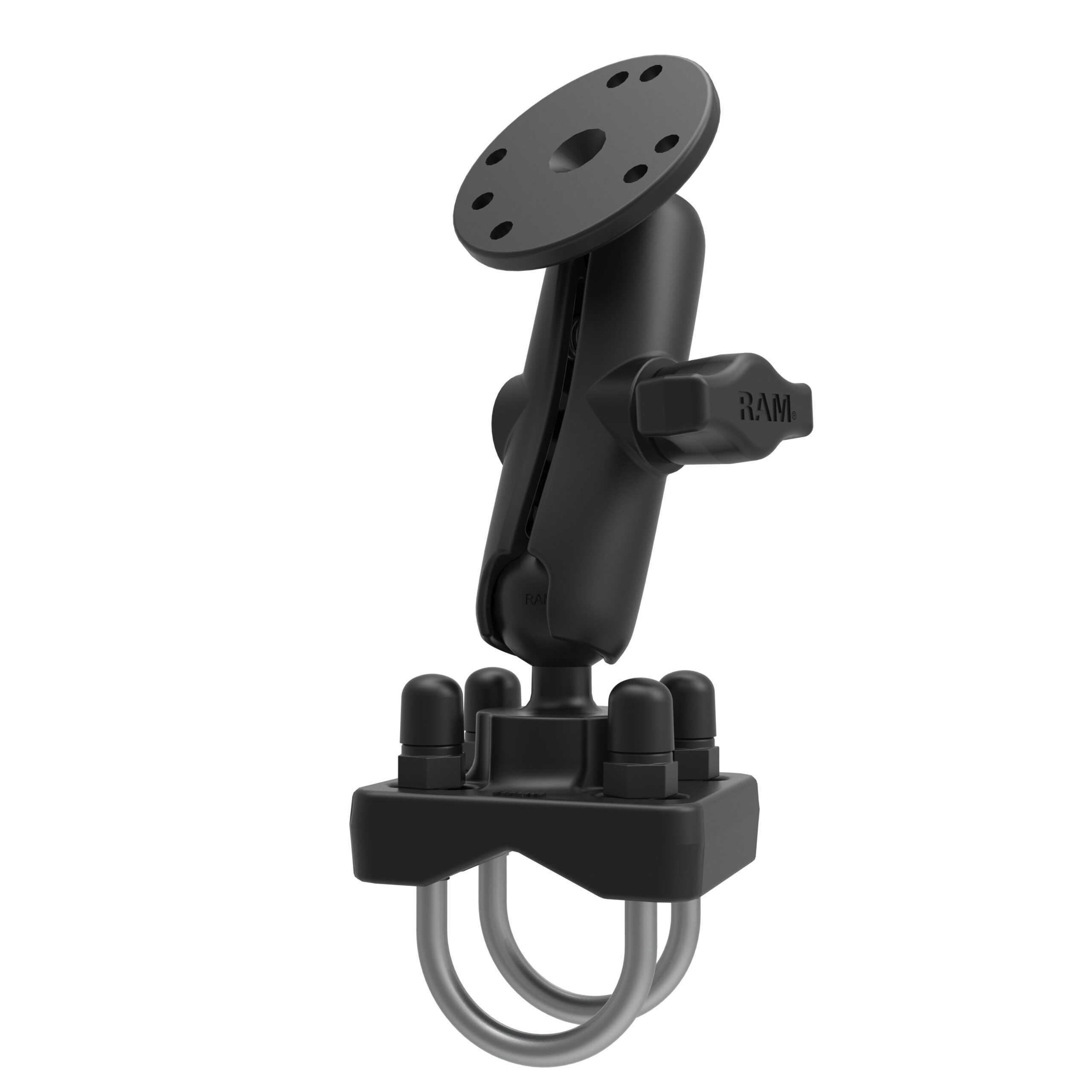

The RAM-B-101-235U consists of a double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1" to 1.25" in diameter. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails(4) 1/4"-20 Nylock Nuts(4) Rubber Caps

CLAMP RANGE

1" - 1.25" diameter

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.87 lb
