RAM® Drill-Down Double Ball Mount with 1/4″-20 Stud – B Size Short

RAM® Drill-Down Double Ball Mount with 1/4″-20 Stud – B Size Short

OVERVIEW

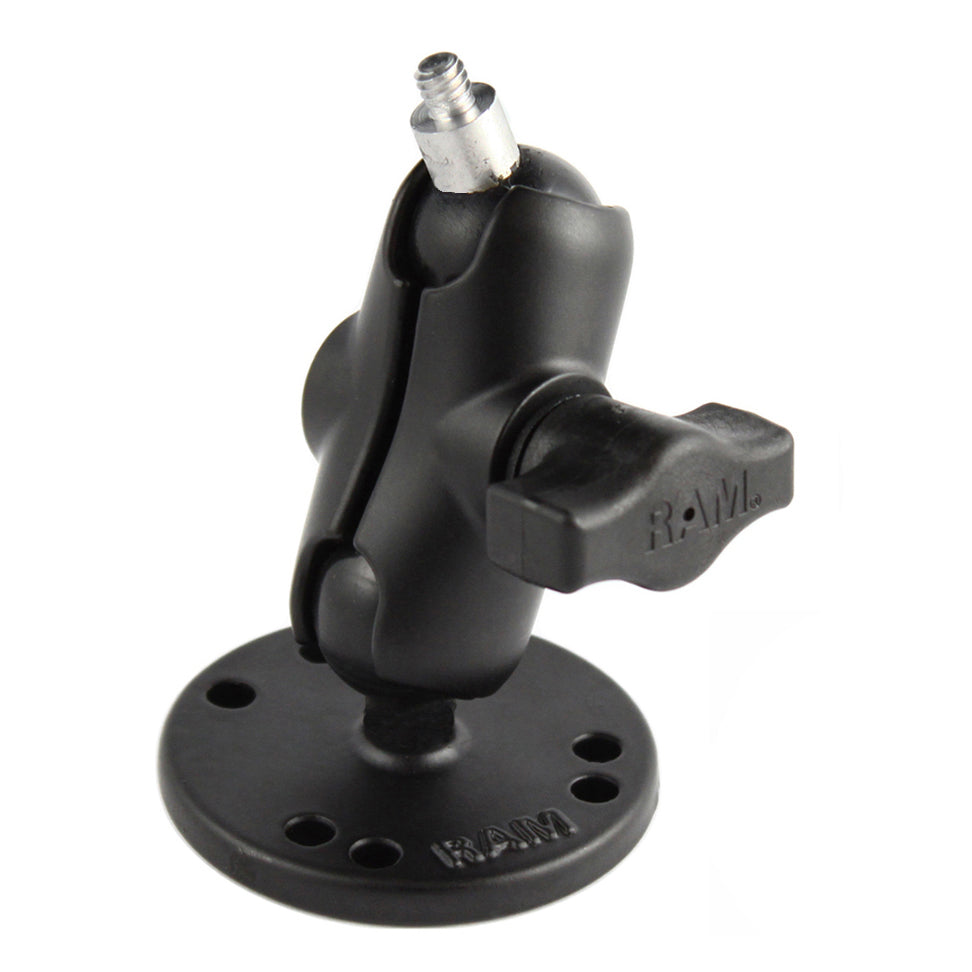

The RAM-B-101-A-237U consists of a short double socket arm, 2.5" diameter round base and 1" diameter rubber ball, connected to a 1/4"-20 camera thread. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera. The round base contains pre-drilled holes, including the universal AMPs hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows for infinite articulation and optimum viewing angles.

SOCKET TO SOCKET LENGTH

1.75"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.38 lb
