SKU RAM-B-101-C-LO11 Categories , ,
Overview

Overview

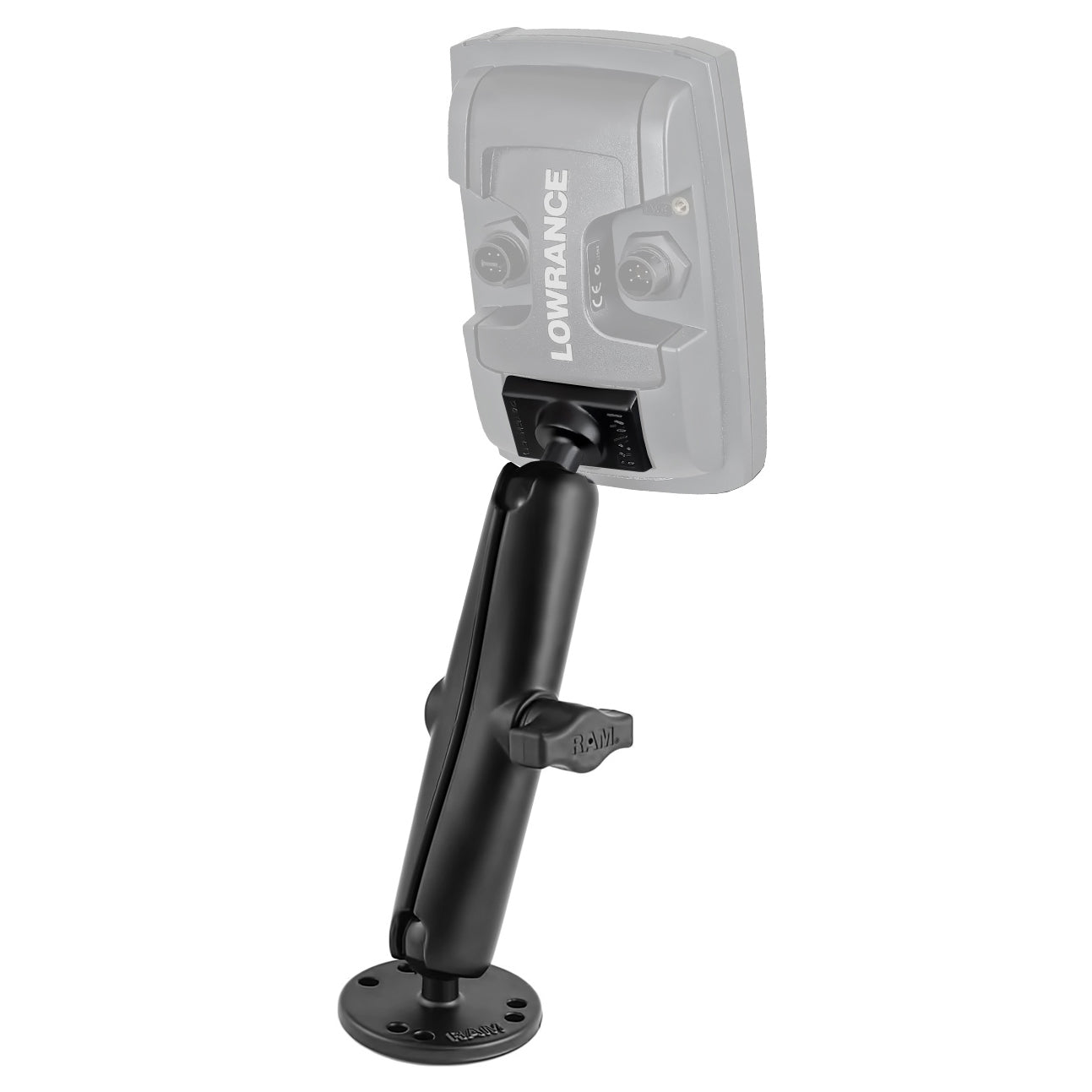

The RAM-B-101-C-LO11 consists of a 2.5" diameter round base with the universal AMPS hole pattern, long double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and Hook-4 fish finders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your fish finder in seconds. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Specs

Product Dimensions

Overall Height: 7.3125"

Socket To Socket Length

5.31"

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Plate Size

2.5" Diameter

Ball Size

B Size (1")

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

Marine-grade aluminum

Packaging Type

Retail Bag
