RAM Double Ball Mount for Lowrance Elite-4 & Mark-4 Series

RAM Double Ball Mount for Lowrance Elite-4 & Mark-4 Series

OVERVIEW

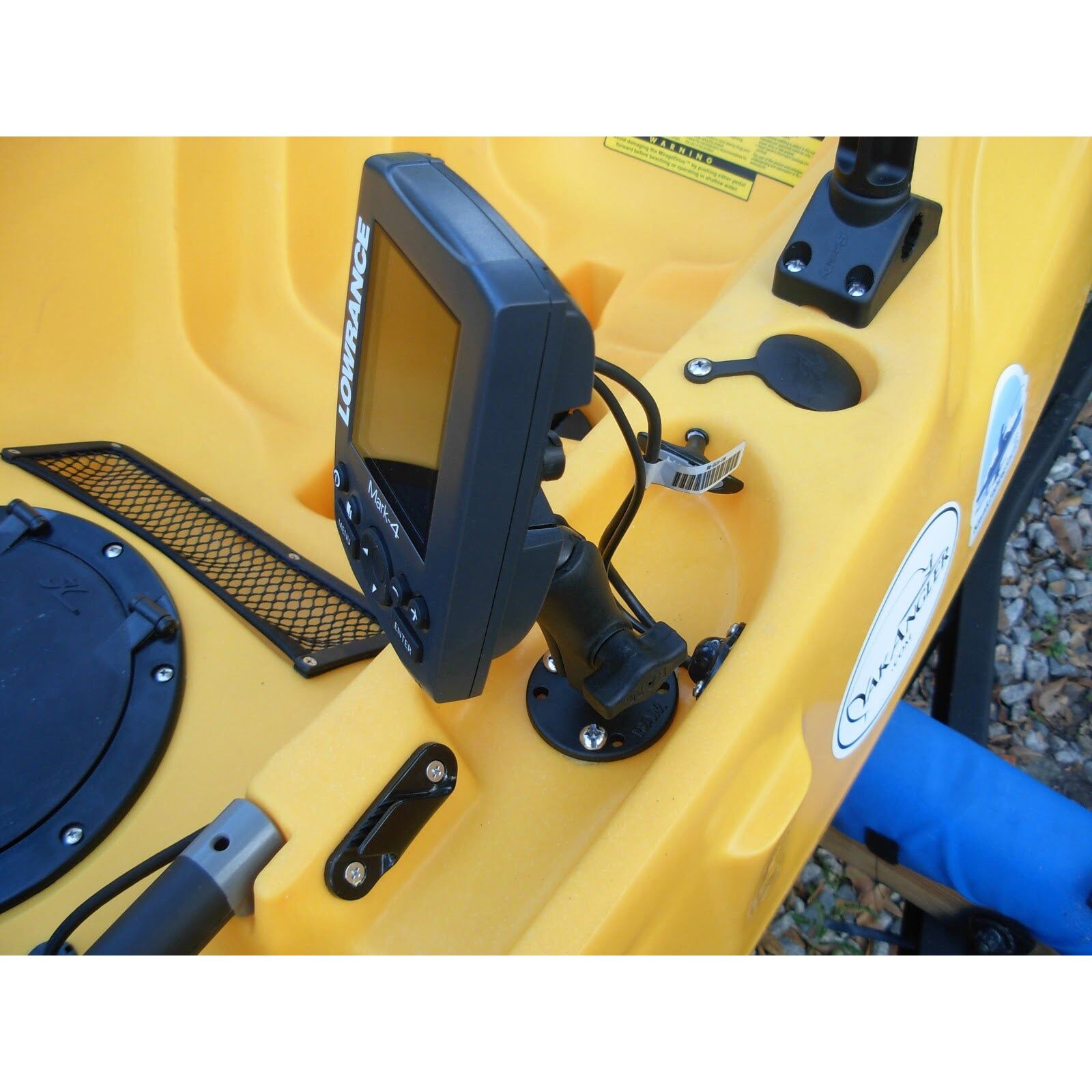

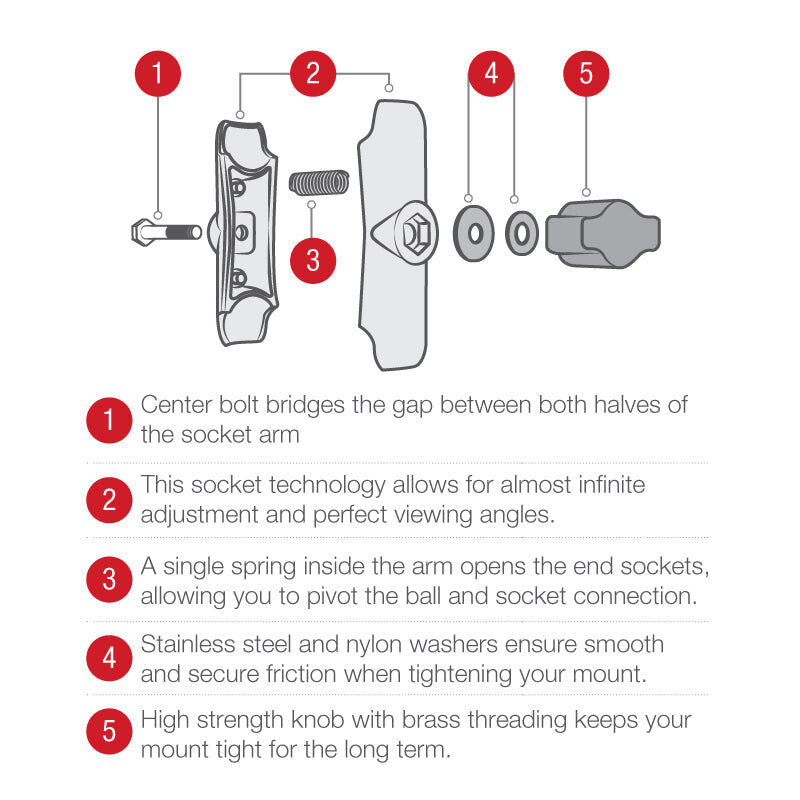

The RAM-B-101-LO11 consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and Hook-4 fish finders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your fish finder in seconds. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

PRODUCT DIMENSIONS

Overall Height: 5"

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Retail Box

WEIGHT

0.58 lb

ADDITIONAL INFORMATION

This product is not compatible with the standard Lowrance Elite-7.
