Overview
Overview

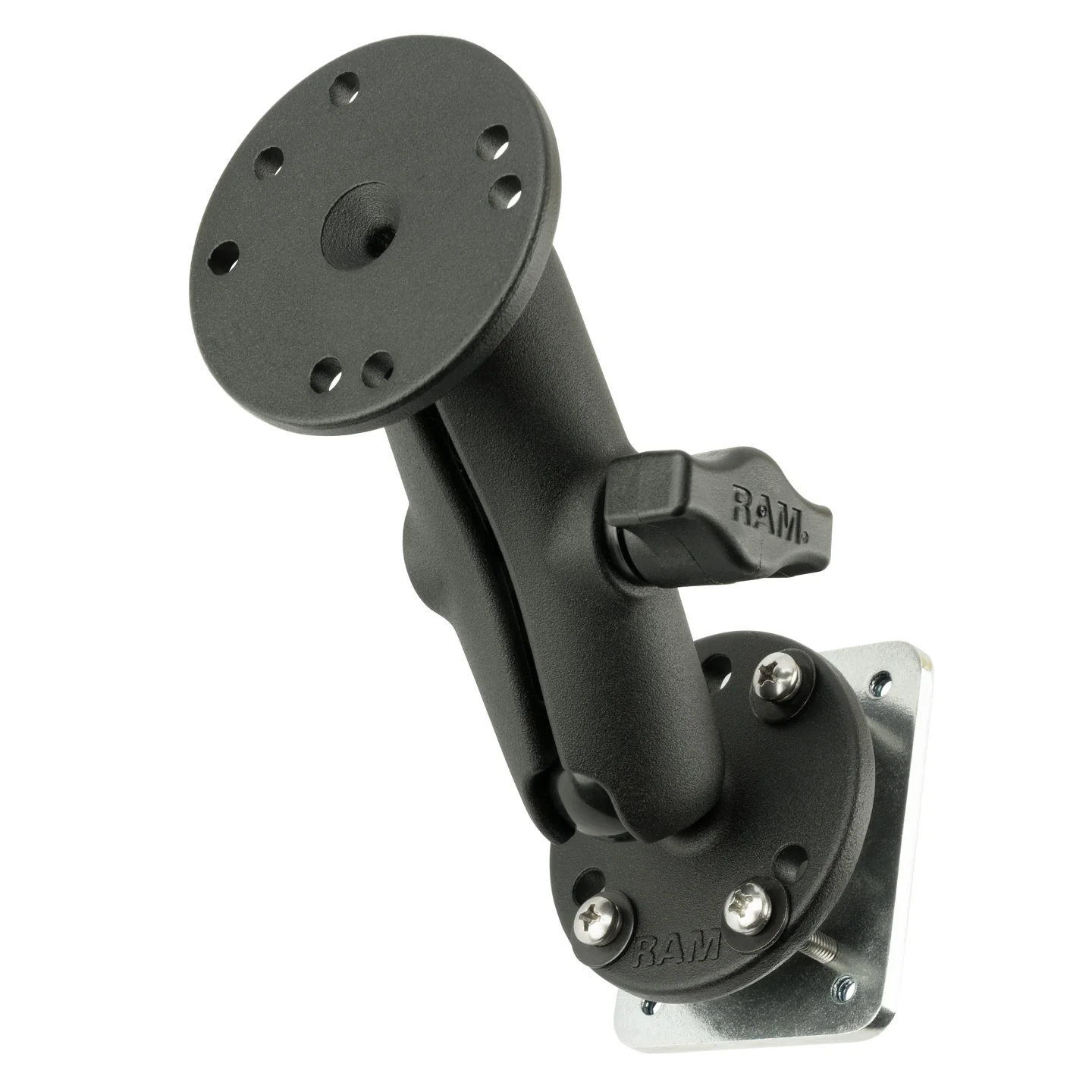

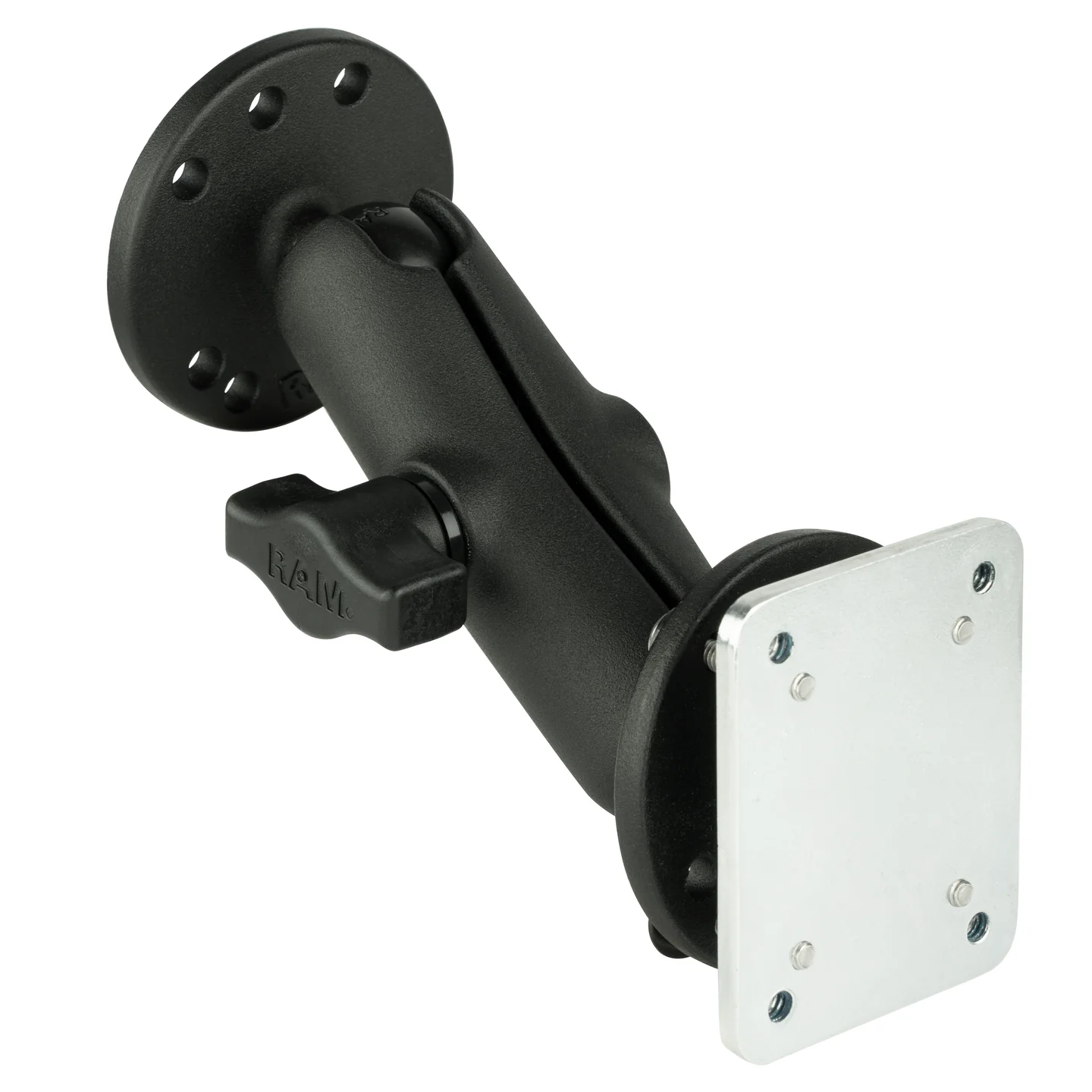

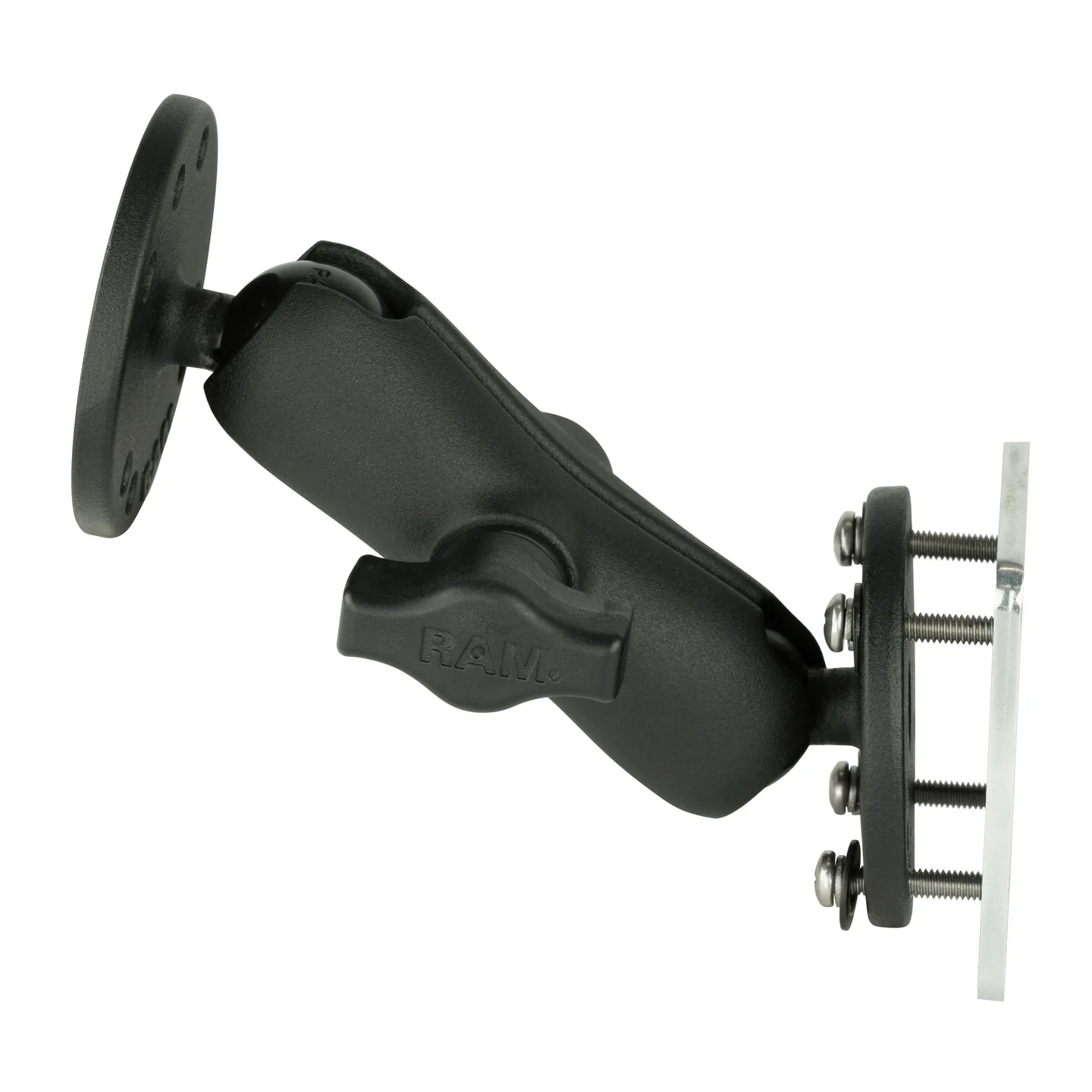

The RAM-B-101U-225B2 consists of a double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1" diameter rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.
Features
- 2.10" x 2.60" steel backing plate attaches to a variety of RAM® Mounts ball bases
- 2.5" round plate with B size 1" RAM® rubber ball connects to RAM® device holders containing the universal AMPS hole pattern; includes B size medium length double socket arm
- Made of stainless steel and high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specs
Hardware Included
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
Product Dimensions
Overall Height: 5"
Socket To Socket Length
3"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Plate Size
2.5" Diameter
3" x 3" Square Plate
Ball Size
B Size (1")
Weight Capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials
Marine-grade aluminum
Stainless steel
Packaging Type
Poly Bag
Weight
0.84 lb
