RAM® Double Ball Mount with Drill-Down, U-Bolt & Adhesive Bases

RAM® Double Ball Mount with Drill-Down, U-Bolt & Adhesive Bases

OVERVIEW

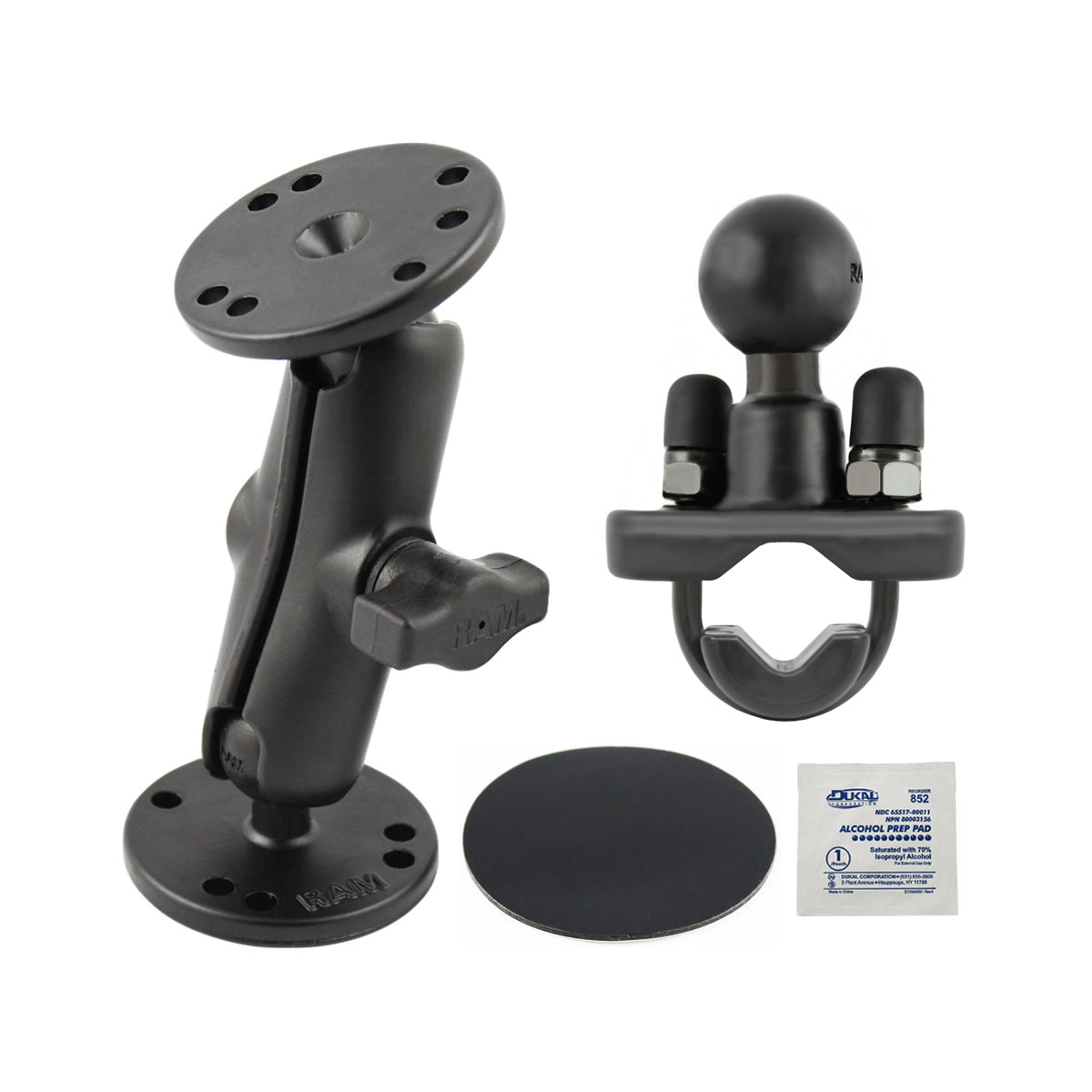

The RAM-B-101U-CR1 consists of a medium length B-size arm with two 2.5" diameter round plates with universal AMPS hole pattern. This mount also includes a 2.5" diameter double sided adhesive pad and a U-Bolt base with 1" diameter B-size ball. The U-Bolt base is compatible with round rails between .5" and 1.25" in diameter.

HARDWARE INCLUDED

(1) 2 7/16" Double Adhesive Pad(1) Alcohol Prep Pad(1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

1.19 lb
