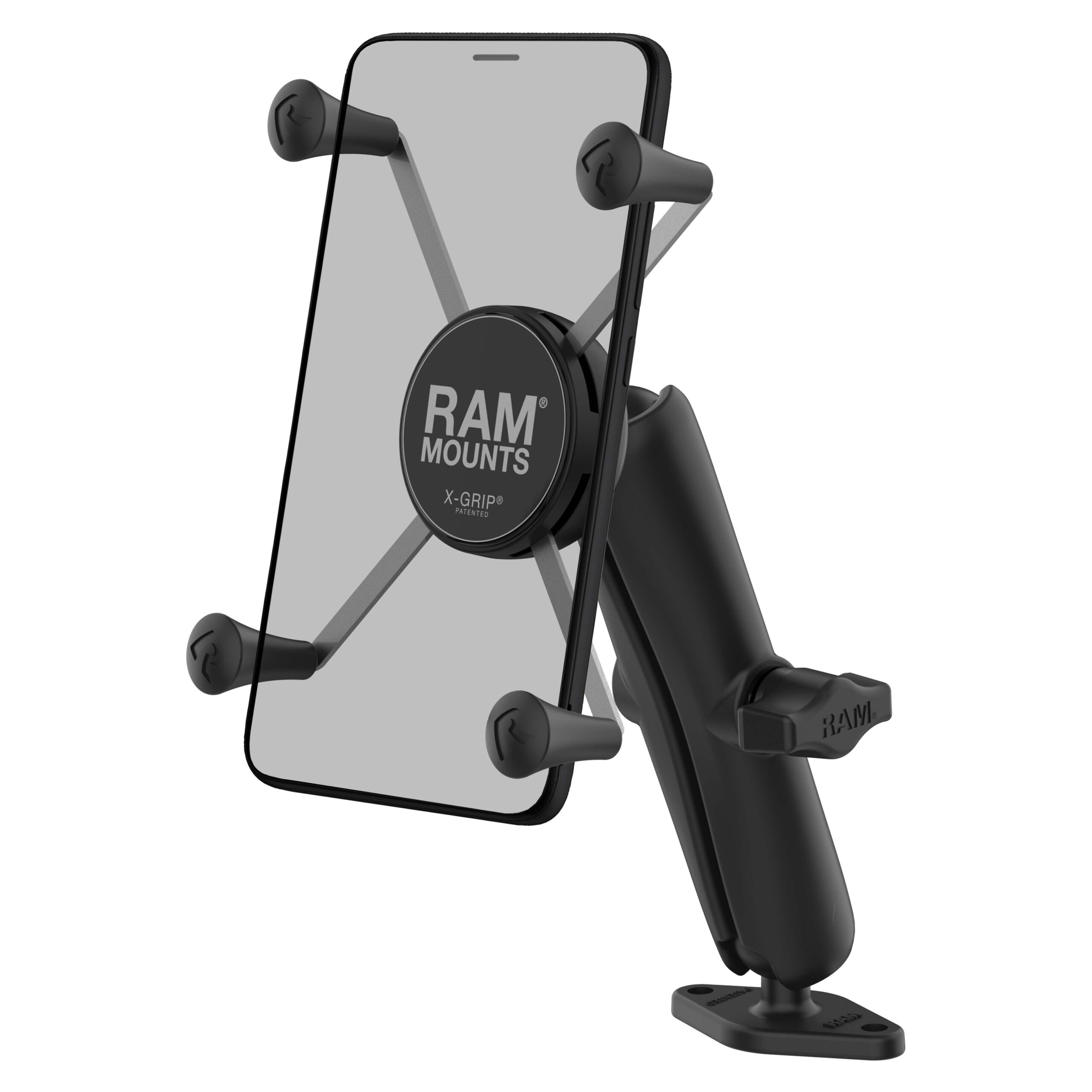

RAM® X-Grip® Large Phone Mount with Diamond Base – Long Arm

RAM® X-Grip® Large Phone Mount with Diamond Base – Long Arm

OVERVIEW

The RAM® X-Grip® Large Phone Mount with Diamond Base - Long Arm (RAM-B-102-C-UN10U) is a complete, ready-to-use solution for securely mounting your phone to a flat surface.The spring-loaded RAM® X-Grip® cradle expands and contracts to provide a firm hold on large phones, ensuring a snug and secure fit without the need for a case-specific adapter. Its universal design supports a wide range of devices—making it a one-size-fits-all solution for your current phone, your future upgrade, and even your friend’s device. Included in the kit is the RAM® diamond ball base that features the industry-standard AMPS hole pattern, allowing you to mount it to any flat surface. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle—and helps extend the life of your phone by providing shock and vibration damping, even in rugged conditions. Built for both everyday and extreme conditions, the RAM® X-Grip® also includes a safety tether recommended for outdoor and rugged applications. The RAM® X-Grip® supports most handheld devices that fall within the dimensions listed below—be sure to check your device’s measurements, including any case or sleeve, to ensure compatibility.

HARDWARE INCLUDED

(1) Optional Tether(1) Glue Tube for Rubber Caps(2) #8-32 x 1/2" Machine Screws(2) #8-32 x 5/8" Machine Screws(2) #8-32 x .75" Screws(2) #8-32 Nylock Nuts

HOLDER DIMENSIONS

Width Range: 1.75" - 4.5"Depth Range: .875" max

SOCKET TO SOCKET LENGTH

5.31"

HOLE PATTERN

2-Hole AMPS: 1.912"

PLATE SIZE

2.43" x 1.31"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite Stainless steel

PACKAGING TYPE

Poly Bag

WEIGHT

0.92 lb

ADDITIONAL INFORMATION

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
